STDatasheet (PDF)

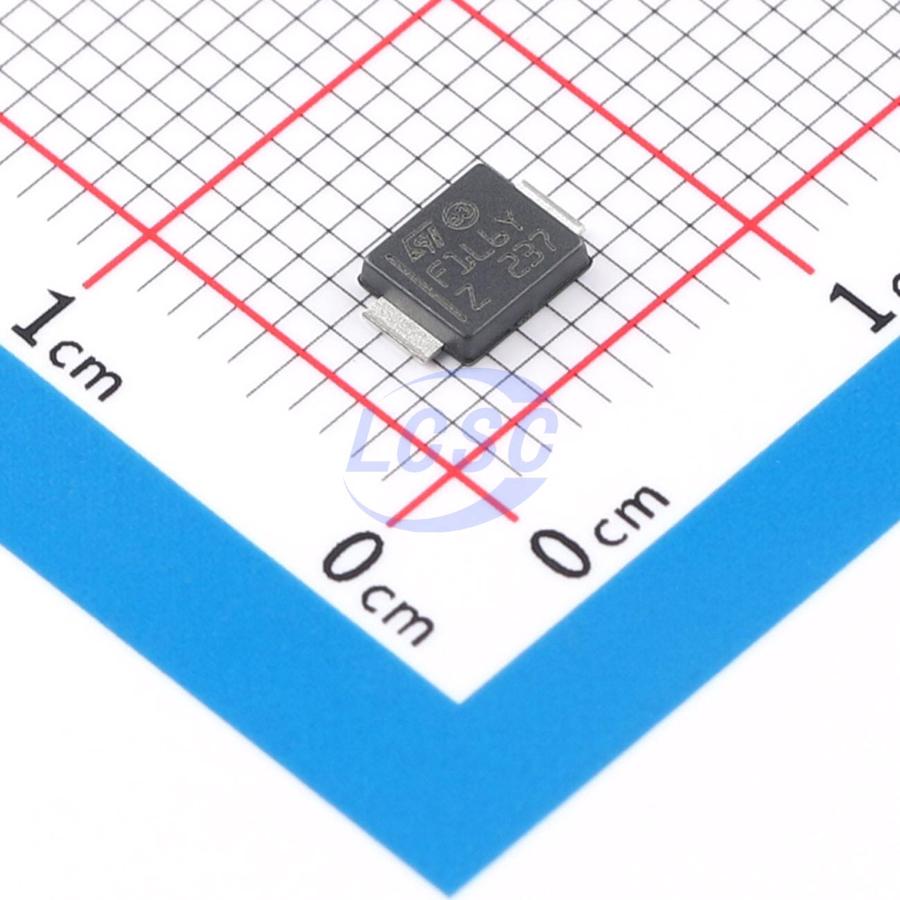

STTH1L06UFY
60ns 1 Independent 600V 1.4V@1A 1A DO-221AA Single Diodes RoHS
DO-221AAROHS3 CompliantActive
Diode 600V 1A DO-221AA
- Manufacturer
- ST
- Manufacturer part #
- STTH1L06UFY
- Store part #
- C2965359
- Package / case
- DO-221AA
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
44 in stock
#C2965359
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹162.19 | ₹162.19 |
| 10+ | ₹135.41 | ₹1,354.10 |
| 30+ | ₹120.82 | ₹3,624.60 |
| 100+ | ₹104.49 | ₹10,449.00 |
| 500+ | ₹97.09 | ₹48,545.00 |
| 1,000+ | ₹93.83 | ₹93,830.00 |
1 × ₹162.19
₹162.19
excl. GST
₹191.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
STTH1L06UFY
₹162.19 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 60ns
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Voltage - Forward(Vf@If)
- 1.4V@1A
- Reverse Leakage Current (Ir)
- 1uA@600V
- Non-Repetitive Peak Forward Surge Current
- 20A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.03 g
Overview
STTH1L06-Y is an ultrafast recovery power rectifier designed for energy recovery in automotive applications, housed in an SMB Flat package for space savings, specifically engineered for clamping functions in energy recovery modules. The balance between forward voltage drop and recovery time delivers optimized performance.
Applications
- Energy recovery in automotive applications
- Clamping function in energy recovery modules
Key features
- AEC-Q101 qualified
- Ultra-fast recovery
- Low switching loss
- High surge capability
- Low leakage current
- High junction temperature
- Components compliant with ECOPACK2 or ECOPACK3 available on request
- VRRM guaranteed over -40 to +175℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STTH1L06U#C52532ST · SMB | ST | SMB | 22,260 | ₹9.14 · 22,260 in stock | View |
 | STTH110UFY#C2970319ST · DO-221AA(SMB) | ST | DO-221AA(SMB) | 170 | ₹97.36 · 170 in stock | View |
 | STTH3L06U#C2798207ST · SMB | ST | SMB | 280 | ₹27.56 · 280 in stock | View |
 | FR1M_R1_00001#C282291PANJIT · DO-214AA(SMB) | PANJIT | DO-214AA(SMB) | 390 | ₹6.03 · 390 in stock | View |
 | UF1M_R1_00001#C305238PANJIT · DO-214AA(SMB) | PANJIT | DO-214AA(SMB) | 1,480 | ₹8.49 · 1,480 in stock | View |
