STDatasheet (PDF)

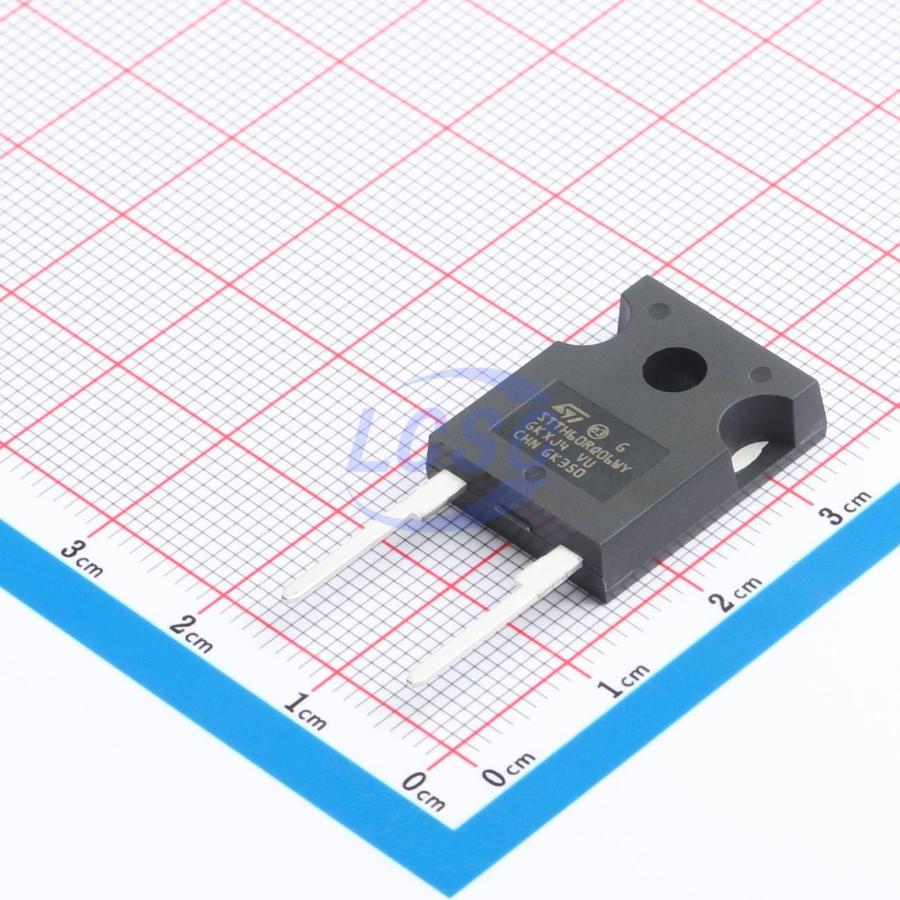

STTH60RQ06WY
65ns 1 Independent 600V 2.95V@60A 60A DO-247-2 Single Diodes RoHS
DO-247-2ROHS3 CompliantActive
Diode 600V 60A DO-247-2
- Manufacturer
- ST
- Manufacturer part #
- STTH60RQ06WY
- Store part #
- C2970077
- Package / case
- DO-247-2
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
155 in stock
#C2970077
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹324.35 | ₹324.35 |
| 10+ | ₹316.40 | ₹3,164.00 |
| 30+ | ₹311.01 | ₹9,330.30 |
| 90+ | ₹305.86 | ₹27,527.40 |
1 × ₹324.35
₹324.35
excl. GST
₹382.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
STTH60RQ06WY
₹324.35 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 65ns
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Voltage - Forward(Vf@If)
- 2.95V@60A
- Reverse Leakage Current (Ir)
- 80uA@600V
- Current - Rectified
- 60A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.824 g
Overview
The STTH60RQ06-Y is specifically developed for applications requiring high-voltage secondary rectification in LLC full-bridge topologies. It is also suitable for switching power supplies, industrial and automotive applications, serving as a rectifier, freewheeling, or clamping diode.
Applications
- High-voltage secondary rectification for LLC full-bridge topology
- Switching power supplies
- Industrial applications
- Automotive applications (rectification, freewheeling, clamp diodes)
Key features
- AEC-Q101 qualified
- High junction temperature capability
- Ultrafast with soft recovery characteristics
- Low reverse current
- Low thermal resistance
- Reduced switching and conduction losses
- PPAP support
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STTH6012W#C262979ST · DO-247 | ST | DO-247 | 287 | ₹772.74 · 287 in stock | View |
 | STTH6010W#C262978ST · DO-247 | ST | DO-247 | 20 | ₹403.98 · 20 in stock | View |
 | STTH6012WL#C5887434ST · DO-247LL | ST | DO-247LL | 1 | ₹665.07 · 1 in stock | View |
 | STTH60RQ06W#C2970454ST · DO-247-2 | ST | DO-247-2 | On request | ₹806.24 · 0 in stock | View |
 | STTH60RQ06WL#C5268256ST · DO-247 | ST | DO-247 | On request | ₹612.15 · 0 in stock | View |
