STDatasheet (PDF)

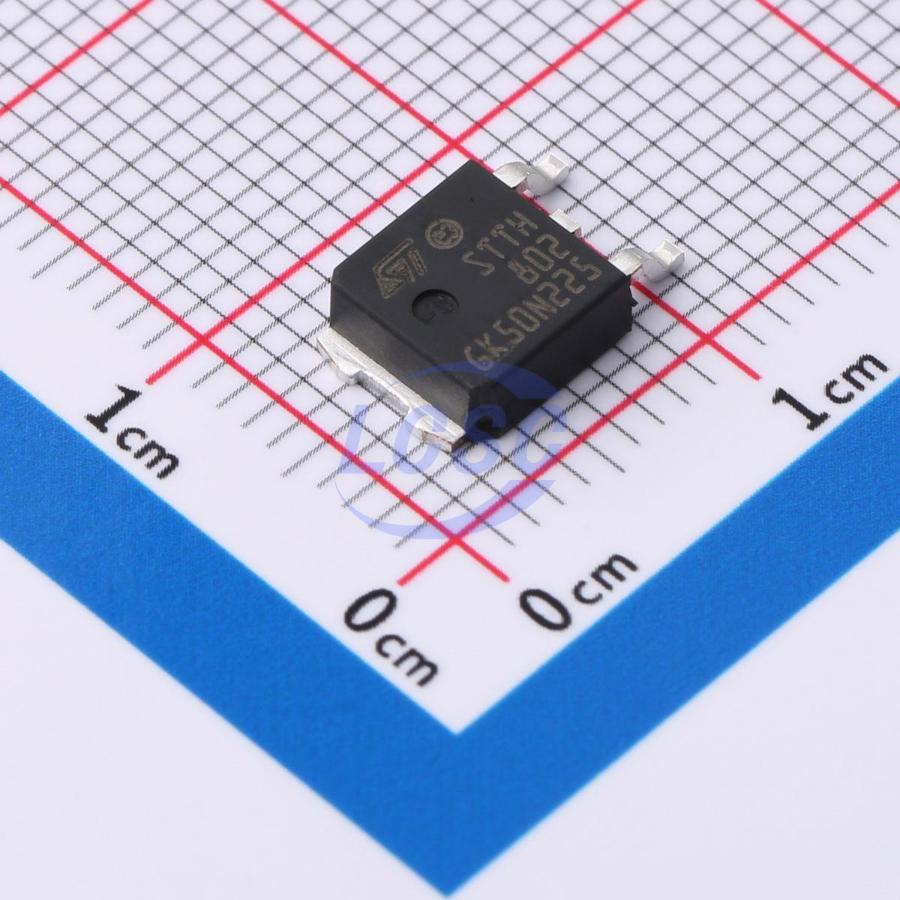

STTH802B-TR
30ns 1 Independent 200V 1.05V@8A 8A DPAK Single Diodes RoHS
DPAKROHS3 CompliantActive
Diode 200V 8A DPAK
- Manufacturer
- ST
- Manufacturer part #
- STTH802B-TR
- Store part #
- C2970433
- Package / case
- DPAK
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C2970433
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹130.88 | ₹130.88 |
| 10+ | ₹105.40 | ₹1,054.00 |
| 30+ | ₹92.78 | ₹2,783.40 |
| 100+ | ₹76.44 | ₹7,644.00 |
| 500+ | ₹68.82 | ₹34,410.00 |
| 1,000+ | ₹65.12 | ₹65,120.00 |
1 × ₹130.88
₹130.88
excl. GST
₹154.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STTH802B-TR
₹130.88 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 30ns
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Voltage - Forward(Vf@If)
- 1.05V@8A
- Reverse Leakage Current (Ir)
- 6uA@200V
- Non-Repetitive Peak Forward Surge Current
- 100A
- Current - Rectified
- 8A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.8 g
Overview
This device uses ST's 200 V planar Pt doping technology, and is especially suited for switching mode base drive and transistor circuits. Packaged in TO-220AC, TO-220FPAC, DPAK, and D²PAK this device is intended for use in low voltage, high frequency inverters, freewheeling and polarity protection.
Applications
- Switch-mode base drive circuits
- Transistor circuits
- Low-voltage, high-frequency inverters
- Freewheeling circuits
- Polarity protection circuits
Key features
- Very low conduction losses
- Negligible switching losses
- Low forward and reverse recovery time
- High junction temperature
- ECOPACK₂ compliant component for DPAK and D²PAK on demand
- Insulated package: TO-220FPAC
- Insulating voltage: 2000 VRMS sine
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | KIA08TB70DD#C176891KIA Semicon Tech · TO-252-2 | KIA Semicon Tech | TO-252-2 | 980 | ₹43.06 · 980 in stock | View |
 | STTH802BY-TR#C2970895ST · DPAK | ST | DPAK | 154 | ₹160.74 · 154 in stock | View |
 | STTH1003SB-TR#C377958ST · DPAK | ST | DPAK | 821 | ₹60.12 · 821 in stock | View |
 | MURSL860D#C20602229YANGJIE · TO-252 | YANGJIE | TO-252 | 1,550 | ₹31.39 · 1,550 in stock | View |
 | STTH1003SBY-TR#C2970292ST · DPAK | ST | DPAK | 5 | ₹83.23 · 5 in stock | View |
