STDatasheet (PDF)

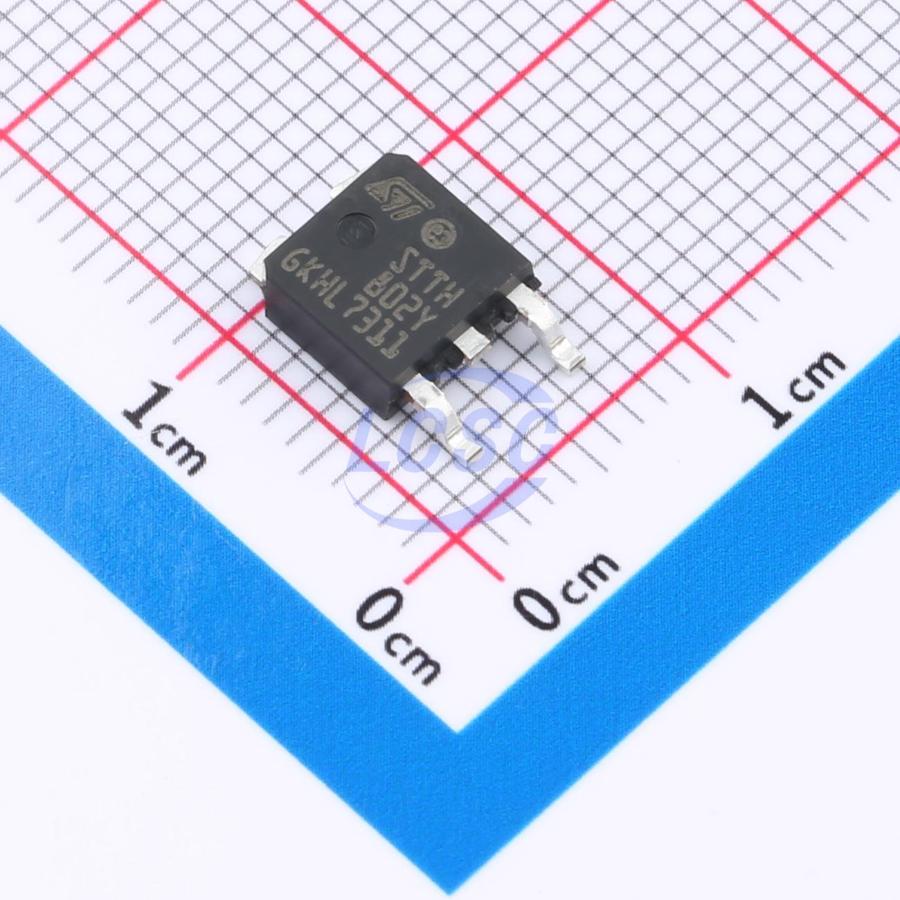

STTH802BY-TR
17ns 1 Independent 200V 1.05V@8A 8A DPAK Single Diodes RoHS
DPAKROHS3 CompliantActive
Diode 200V 8A DPAK
- Manufacturer
- ST
- Manufacturer part #
- STTH802BY-TR
- Store part #
- C2970895
- Package / case
- DPAK
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
154 in stock
#C2970895
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹160.74 | ₹160.74 |
| 10+ | ₹133.49 | ₹1,334.90 |
| 30+ | ₹118.69 | ₹3,560.70 |
| 100+ | ₹101.73 | ₹10,173.00 |
| 500+ | ₹94.21 | ₹47,105.00 |
| 1,000+ | ₹90.78 | ₹90,780.00 |
1 × ₹160.74
₹160.74
excl. GST
₹189.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STTH802BY-TR
₹160.74 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 17ns
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Voltage - Forward(Vf@If)
- 1.05V@8A
- Reverse Leakage Current (Ir)
- 9uA@200V
- Non-Repetitive Peak Forward Surge Current
- 100A
- Current - Rectified
- 8A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.394 g
Overview
STTH802-Y utilizes 200V planar platinum-doped technology, making it particularly suitable for switch-mode base drive and transistor circuits. In a DPAK package, it is ideal for polarity protection in low-voltage, high-frequency inverters, freewheeling, and automotive applications.
Applications
- Switch-mode base drive circuits
- Transistor circuits
- Low-voltage, high-frequency inverters
- Freewheeling circuits
- Polarity protection for automotive applications
Key features
- Ultra-low conduction losses
- Negligible switching losses
- Low forward and reverse recovery time
- High junction temperature
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STTH1003SB-TR#C377958ST · DPAK | ST | DPAK | 821 | ₹60.12 · 821 in stock | View |
 | STTH1003SBY-TR#C2970292ST · DPAK | ST | DPAK | 5 | ₹83.23 · 5 in stock | View |
 | MUR860D#C961870YANGJIE · TO-252 | YANGJIE | TO-252 | 5,335 | ₹42.03 · 5,335 in stock | View |
 | STTH802B-TR#C2970433ST · DPAK | ST | DPAK | 90 | ₹130.88 · 90 in stock | View |
 | MURSL860D#C20602229YANGJIE · TO-252 | YANGJIE | TO-252 | 1,550 | ₹31.39 · 1,550 in stock | View |
