STDatasheet (PDF)

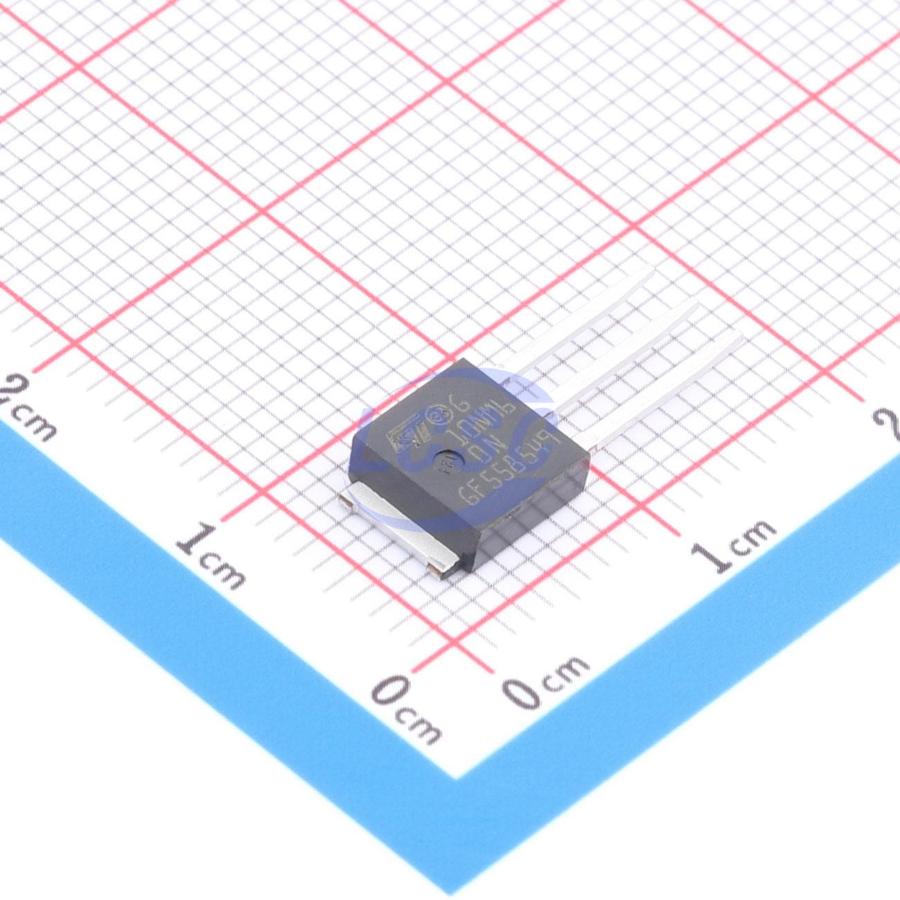

STU10NM60N
70W 600V 10A 550mΩ@10V 1 N-channel N-Channel TO-251(IPAK) Single FETs, MOSFETs RoHS
TO-251(IPAK)ROHS3 CompliantActive
- Manufacturer
- ST
- Manufacturer part #
- STU10NM60N
- Store part #
- C3290813
- Package / case
- TO-251(IPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
65 in stock
#C3290813
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹706.68 | ₹706.68 |
| 10+ | ₹623.28 | ₹6,232.80 |
| 30+ | ₹573.63 | ₹17,208.90 |
| 100+ | ₹523.54 | ₹52,354.00 |
| 500+ | ₹500.45 | ₹2,50,225.00 |
| 1,000+ | ₹490.00 | ₹4,90,000.00 |
1 × ₹706.68
₹706.68
excl. GST
₹833.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 75 per tube
STU10NM60N
₹706.68 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 44pF
- Ciss-Input Capacitance
- 540pF
- Pd - Power Dissipation
- 70W
- Drain to Source Voltage
- 600V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 10A
- Reverse Transfer Capacitance (Crss)
- 1.2pF
- RDS(on)
- 550mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 19nC@10V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 75 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.207 g
Overview
These devices are N-channel Power MOSFETs developed using the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a vertical structure to the strip layout to yield low on-resistance and gate charge. It is therefore suitable for the most demanding high efficiency converters.
Applications
- Switching applications
Key features
- 100% avalanche tested
- Low input capacitance and gate charge
- Low gate input resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CMU65R290#C52976752Cmos · TO-251 | Cmos | TO-251 | 140 | ₹86.00 · 140 in stock | View |
 | IPSA70R450P7SAKMA1#C3278976Infineon · TO-251-3 | Infineon | TO-251-3 | 5 | ₹260.87 · 5 in stock | View |
 | TK12Q60W,S1VQ#C6284820TOSHIBA · IPAK | TOSHIBA | IPAK | 10 | ₹1,202.67 · 10 in stock | View |
 | LSH65R380HT#C439122LONTEN · TO-251 | LONTEN | TO-251 | On request | ₹94.94 · 0 in stock | View |
| NCE70T360I#C2686760NCE · TO-251 | NCE | TO-251 | On request | ₹108.16 · 0 in stock | View | |
