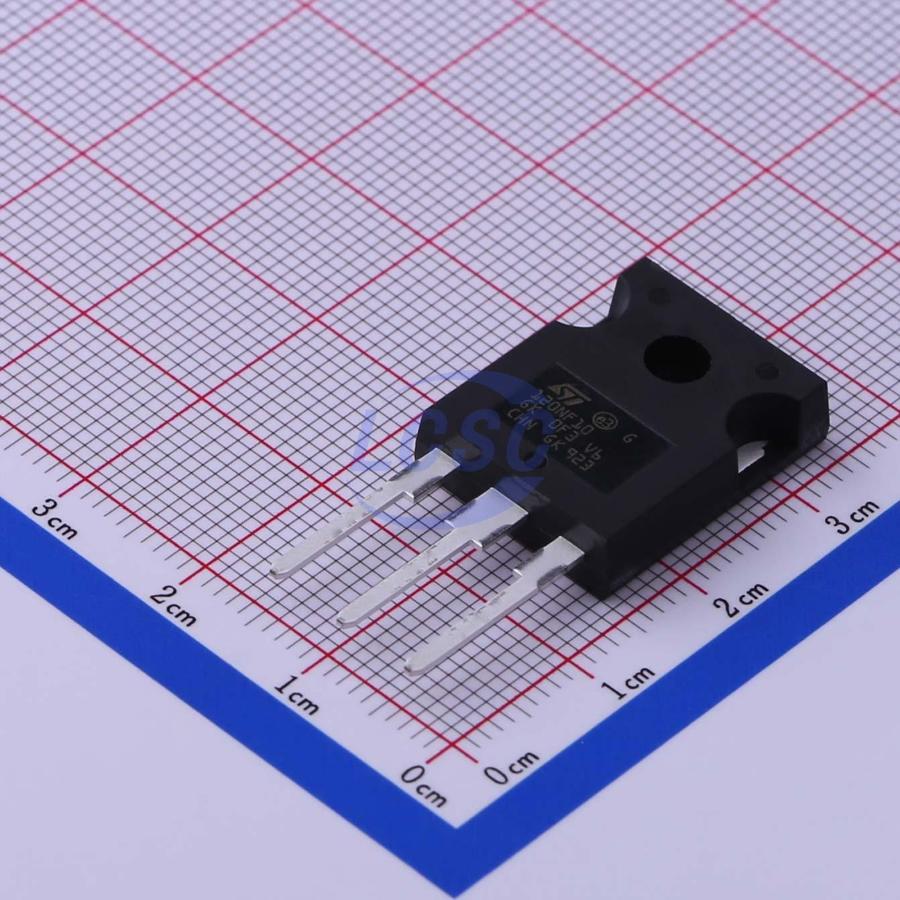

STW120NF10
N-Channel 100V 110A Through Hole TO-247
TO-247RoHSSold out at source
MOSFET N-CH 100V 110A TO-247
- Manufacturer
- ST
- Manufacturer part #
- STW120NF10
- Store part #
- C457481
- Package / case
- TO-247
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C457481
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹877.96 | ₹877.96 |
| 10+ | ₹755.12 | ₹7,551.20 |
| 30+ | ₹680.14 | ₹20,404.20 |
| 90+ | ₹617.31 | ₹55,557.90 |
1 × ₹877.96
₹877.96
excl. GST
₹1,035.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
STW120NF10
₹877.96 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 785pF
- Ciss-Input Capacitance
- 5.2nF
- Pd - Power Dissipation
- 312W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 110A
- Reverse Transfer Capacitance (Crss)
- 325pF
- RDS(on)
- 9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 233nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.55 g
Overview
These Power MOSFETs have been developed using the unique STripFET process, which is specifically designed to minimize input capacitance and gate charge. This renders the devices suitable for use as primary switch in advanced high-efficiency isolated DC-DC converters for telecom and computer applications, and applications with low gate charge driving requirements.
Applications
- Switching applications
Key features
- Exceptional dv/dt capability
- 100% avalanche tested
- Low gate charge
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TSK107N20#C55219119Truesemi · TO-247 | Truesemi | TO-247 | 25 | ₹151.77 · 25 in stock | View |
 | CMH107N20#C42388479Cmos · TO-247 | Cmos | TO-247 | 25 | ₹224.84 · 25 in stock | View |
 | NCEP15T14T#C2686614NCE · TO-247 | NCE | TO-247 | 77 | ₹442.35 · 77 in stock | View |
 | XRS150N15H#C42457109XNRUSEMI · TO-247 | XNRUSEMI | TO-247 | 21 | ₹233.73 · 21 in stock | View |
 | IXTH130N10T#C22409692Littelfuse/IXYS · TO-247 | Littelfuse/IXYS | TO-247 | 10 | ₹1,873.10 · 10 in stock | View |
