STDatasheet (PDF)

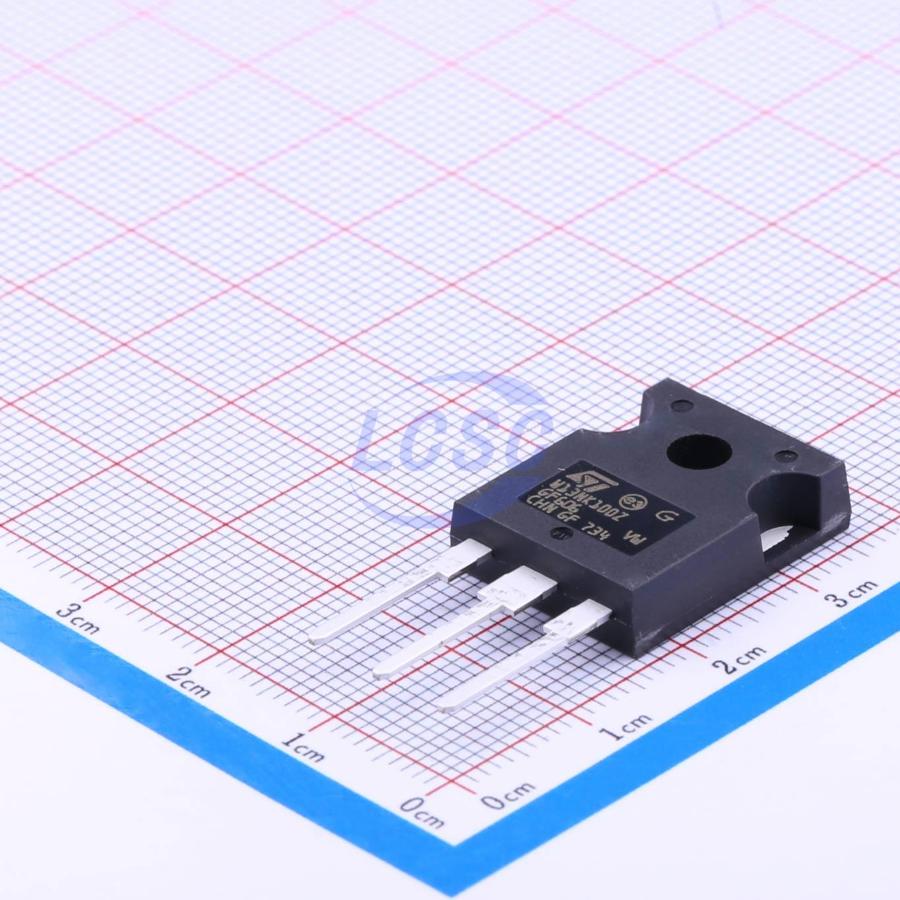

STW13NK100Z
350W 1kV 13A 700mΩ@10V 1 N-channel N-Channel TO-247-3 Single FETs, MOSFETs RoHS
TO-247-3ROHS3 CompliantActive
- Manufacturer
- ST
- Manufacturer part #
- STW13NK100Z
- Store part #
- C77776
- Package / case
- TO-247-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17 in stock
#C77776
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹970.47 | ₹970.47 |
| 10+ | ₹862.93 | ₹8,629.30 |
| 30+ | ₹797.45 | ₹23,923.50 |
| 100+ | ₹742.37 | ₹74,237.00 |
1 × ₹970.47
₹970.47
excl. GST
₹1,145.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
STW13NK100Z
₹970.47 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 455pF
- Ciss-Input Capacitance
- 6nF
- Pd - Power Dissipation
- 350W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 1kV
- Current - Continuous Drain(Id)
- 13A
- Reverse Transfer Capacitance (Crss)
- 100pF
- RDS(on)
- 700mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 266nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.985 g
Overview
The SuperMESH series is derived from extreme optimization of the proven strip-based PowerMESH layout. In addition to significantly reduced on-resistance, particular emphasis has been placed on ensuring excellent dv/dt capability in the most demanding applications. This series complements the full portfolio of high-voltage MOSFETs, including the innovative MDmesh products.
Applications
- Switching applications
Key features
- Extremely high dv/dt capability
- 100% avalanche tested
- Minimized gate charge
- Extremely low intrinsic capacitance
- Excellent manufacturing repeatability
- TO-247 package
Alternatives
Similar parts — check the datasheet before substituting.
