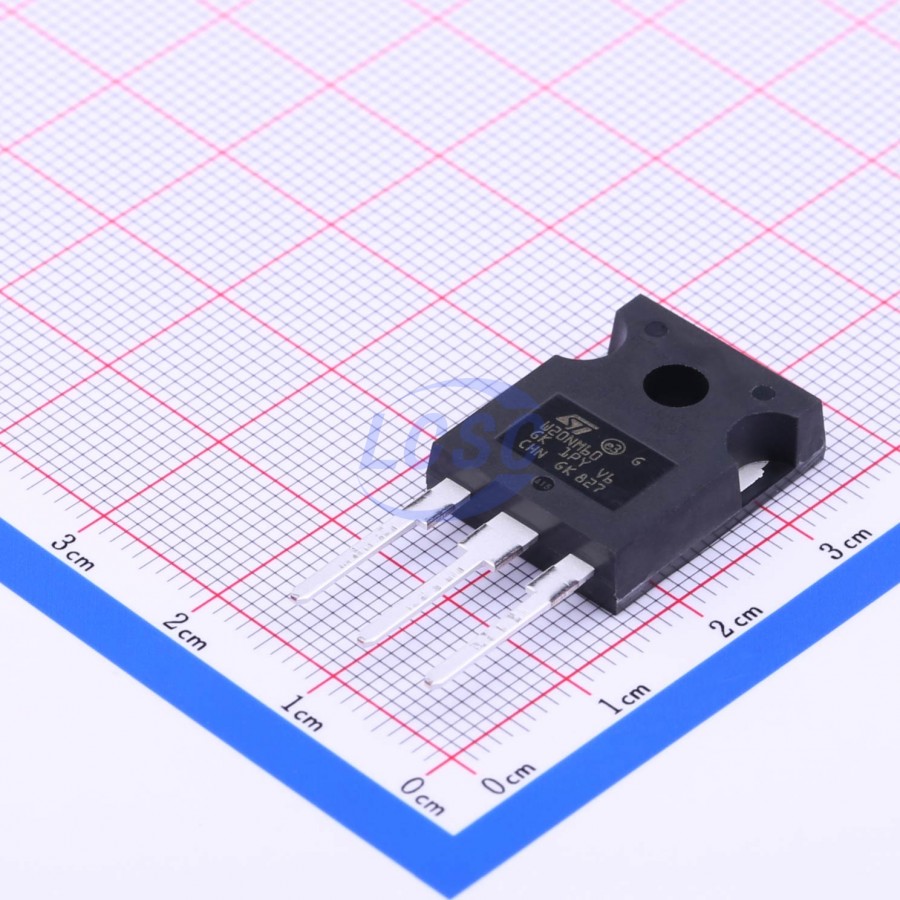

STW20NM60
N-Channel 600V 20A 192W Through Hole TO-247
TO-247ROHS3 CompliantActive
MOSFET N-CH 600V 20A TO-247
- Manufacturer
- ST
- Manufacturer part #
- STW20NM60
- Store part #
- C262986
- Package / case
- TO-247
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13 in stock
#C262986
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹402.46 | ₹402.46 |
| 10+ | ₹342.35 | ₹3,423.50 |
| 30+ | ₹306.63 | ₹9,198.90 |
| 100+ | ₹270.70 | ₹27,070.00 |
| 500+ | ₹253.94 | ₹1,26,970.00 |
| 1,000+ | ₹246.53 | ₹2,46,530.00 |
1 × ₹402.46
₹402.46
excl. GST
₹474.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
STW20NM60
₹402.46 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 350pF
- Ciss-Input Capacitance
- 1.5nF
- Pd - Power Dissipation
- 192W
- Operating Temperature
- -65℃~+150℃
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 20A
- Reverse Transfer Capacitance (Crss)
- 35pF
- RDS(on)
- 290mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 54nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.567 g
Overview
The MDmesh™ is a new revolutionary Power MOSFET technology that associates the multiple drain process with the company’s PowerMESH™ horizontal layout. The resulting product has an outstanding low on-resistance, impressively high dv/dt and excellent avalanche characteristics. The adoption of the company’s proprietary strip technique yields overall dynamic performance that is significantly better than that of similar competition’s products.
Applications
- Switching applications
Key features
- High dv/dt and avalanche capabilities
- 100% avalanche tested
- Low input capacitance and gate charge
- Low gate input resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STW20NM60FD#C2688524ST · TO-247 | ST | TO-247 | 168 | ₹602.35 · 168 in stock | View |
 | TSK65R140SD#C39832945Truesemi · TO-247 | Truesemi | TO-247 | 68 | ₹236.65 · 68 in stock | View |
 | STW33N60DM2#C672390ST · TO-247 | ST | TO-247 | 10 | ₹1,031.49 · 10 in stock | View |
 | APT34F60B-VB#C45350885VBsemi Elec · TO-247 | VBsemi Elec | TO-247 | 10 | ₹873.60 · 10 in stock | View |
 | FCH099N60E-VB#C45350908VBsemi Elec · TO-247 | VBsemi Elec | TO-247 | 10 | ₹873.60 · 10 in stock | View |
