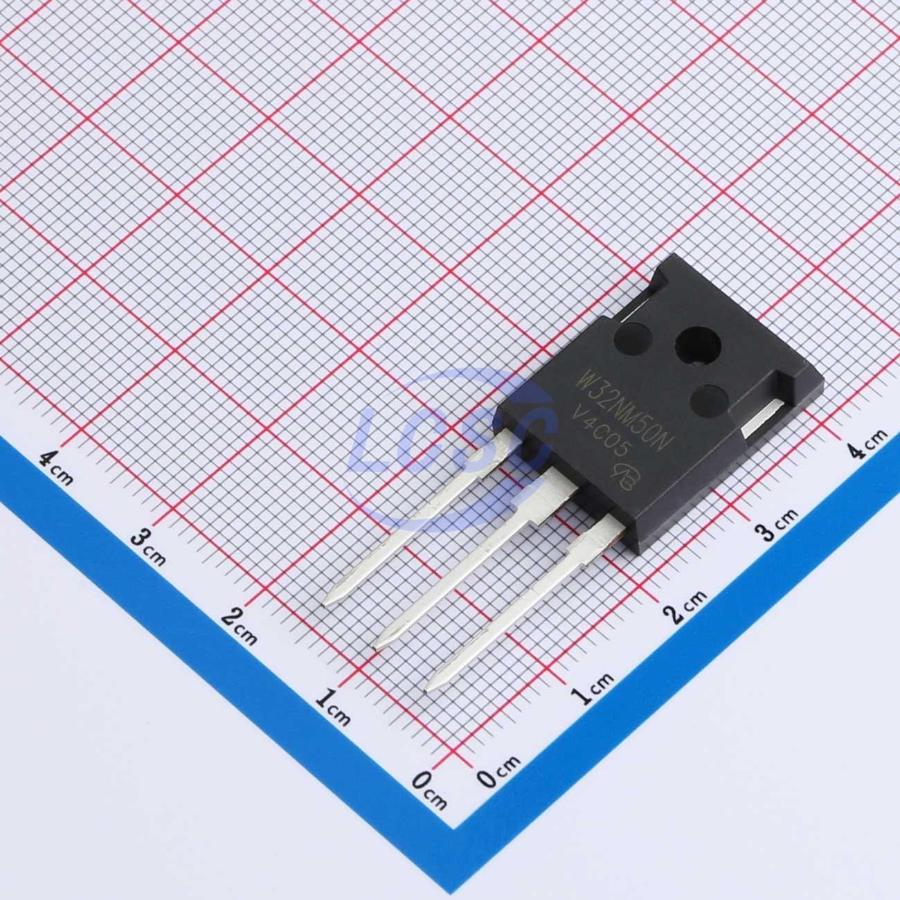

STW32NM50N-VB
N-Channel 500V 30A 360W Through Hole TO-247AC
TO-247ACRoHSActive
MOSFET N-CH 500V 30A TO-247AC
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STW32NM50N-VB
- Store part #
- C22356990
- Package / case
- TO-247AC
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C22356990
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹438.39 | ₹438.39 |
| 10+ | ₹374.74 | ₹3,747.40 |
| 30+ | ₹336.93 | ₹10,107.90 |
| 90+ | ₹298.69 | ₹26,882.10 |
| 600+ | ₹281.06 | ₹1,68,636.00 |
| 900+ | ₹273.28 | ₹2,45,952.00 |
1 × ₹438.39
₹438.39
excl. GST
₹517.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
STW32NM50N-VB
₹438.39 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 500V
- Output Capacitance(Coss)
- 330pF
- Current - Continuous Drain(Id)
- 30A
- Ciss-Input Capacitance
- 3.3nF
- Pd - Power Dissipation
- 360W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 120mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 160nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 7.8 g
Overview
PDFN5×6 package N-channel MOSFET.
Applications
- Server and telecom power supplies
- Switching Mode Power Supplies (SMPS)
- Power Factor Correction (PFC) power supplies
- Lighting
- High-Intensity Discharge (HID) lamps
- Fluorescent lamp ballast lighting
Key features
- Low figure of merit (FOM) Ron × Qg
- Low input capacitance (Ciss)
- Reduced switching and conduction losses
- Ultra-low gate charge (Qg)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AOK29S50-VB#C22356991VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹417.37 · 5 in stock | View |
 | VBP15R33S#C22357345VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 2 | ₹615.46 · 2 in stock | View |
 | IPW60R099P7-VB#C22357110VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹592.15 · 5 in stock | View |
 | IPW60R090CFD7-VB#C22357113VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹592.15 · 5 in stock | View |
 | VBP16R32S#C22357362VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹592.15 · 5 in stock | View |
