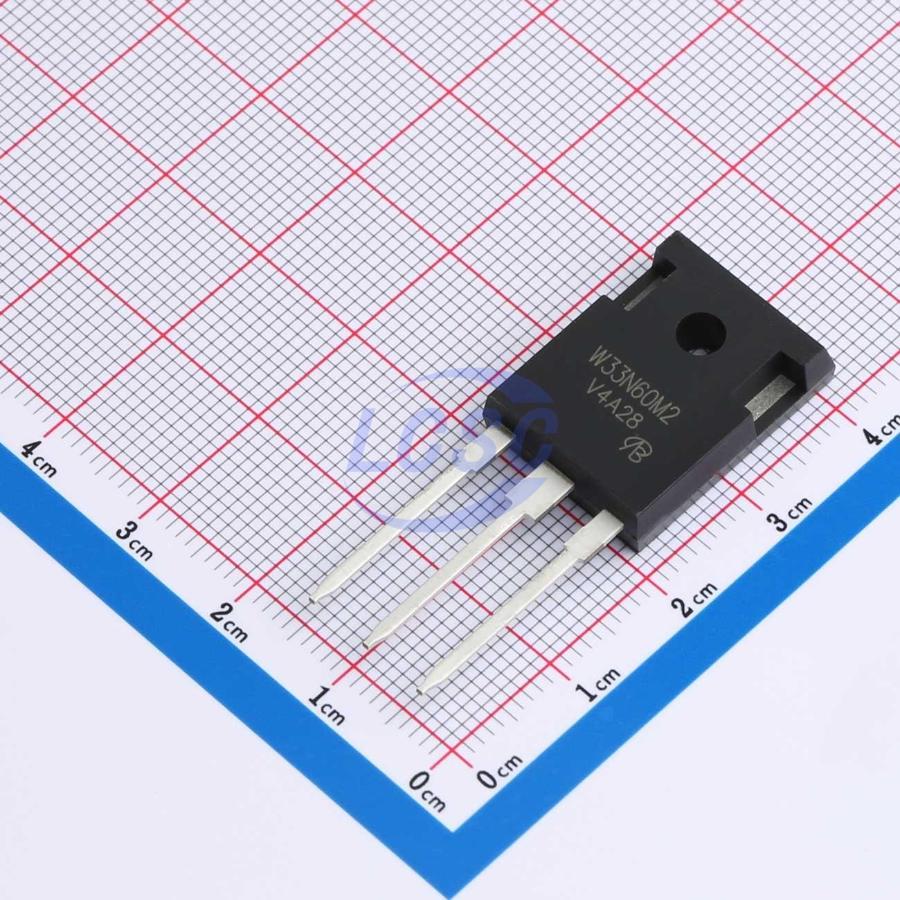

STW33N60M2-VB
N-Channel 600V 26A 510W Through Hole TO-247AC
TO-247ACRoHSActive
MOSFET N-CH 600V 26A TO-247AC
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STW33N60M2-VB
- Store part #
- C22357120
- Package / case
- TO-247AC
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C22357120
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹476.82 | ₹476.82 |
| 10+ | ₹407.72 | ₹4,077.20 |
| 30+ | ₹366.55 | ₹10,996.50 |
| 90+ | ₹324.96 | ₹29,246.40 |
| 600+ | ₹305.84 | ₹1,83,504.00 |
| 900+ | ₹297.23 | ₹2,67,507.00 |
1 × ₹476.82
₹476.82
excl. GST
₹562.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
STW33N60M2-VB
₹476.82 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Output Capacitance(Coss)
- 330pF
- Current - Continuous Drain(Id)
- 26A
- Ciss-Input Capacitance
- 2.8nF
- Pd - Power Dissipation
- 510W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 115mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 30nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 12 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
Key features
- Low figure-of-merit (FOM) Ron×Qg
- Low input capacitance (Ciss)
- Reduced switching and conduction losses
- Ultra low gate charge (Qg)
- Avalanche energy rated (UIS)
- N-Channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPW60R120C7-VB#C22357119VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹476.82 · 5 in stock | View |
| STW26N60M2-VB#C51822618VBsemi Elec · TO-247 | VBsemi Elec | TO-247 | 1 | ₹345.74 · 1 in stock | View | |
| TK125N60Z1-VB#C51822619VBsemi Elec · TO-247 | VBsemi Elec | TO-247 | 5 | ₹393.74 · 5 in stock | View | |
 | IPW60R099P7-VB#C22357110VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹592.15 · 5 in stock | View |
 | IPW60R090CFD7-VB#C22357113VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹592.15 · 5 in stock | View |
