STDatasheet (PDF)

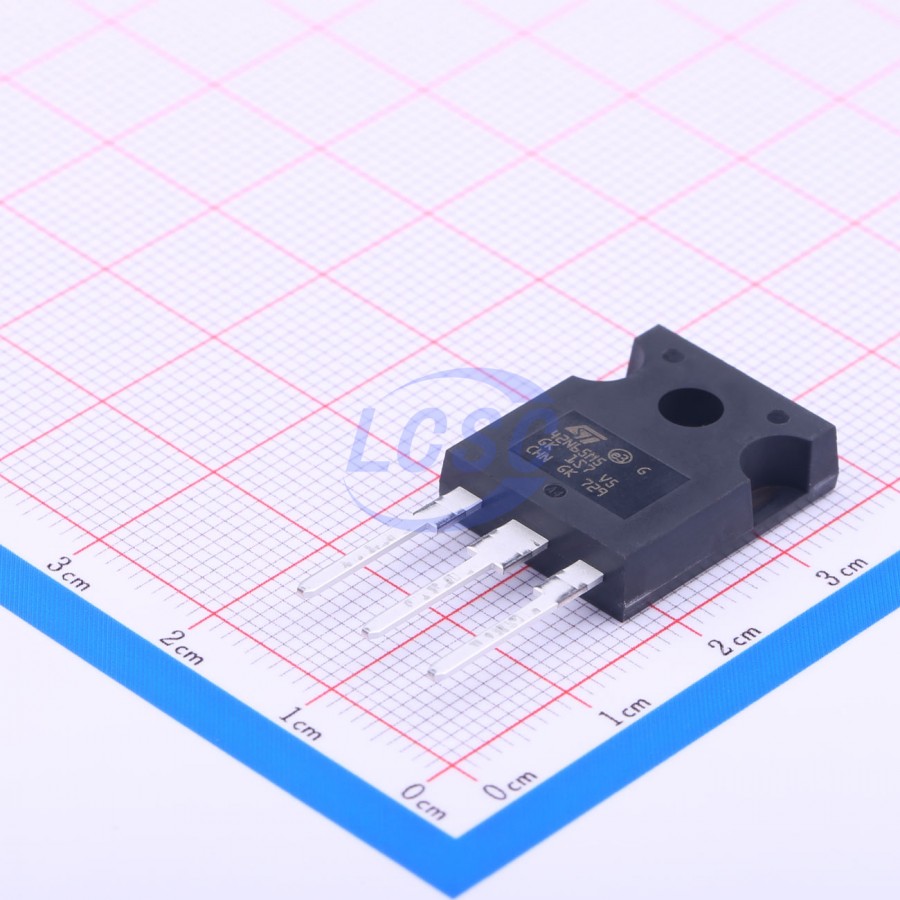

STW42N65M5
N-Channel 650V 33A 190W Through Hole TO-247
TO-247ROHS3 CompliantActive
MOSFET N-CH 650V 33A TO-247
- Manufacturer
- ST
- Manufacturer part #
- STW42N65M5
- Store part #
- C10620
- Package / case
- TO-247
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23 in stock
#C10620
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,261.63 | ₹1,261.63 |
| 10+ | ₹1,072.58 | ₹10,725.80 |
| 30+ | ₹957.20 | ₹28,716.00 |
| 100+ | ₹860.72 | ₹86,072.00 |
1 × ₹1,261.63
₹1,261.63
excl. GST
₹1,488.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
STW42N65M5
₹1,261.63 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 110pF
- Ciss-Input Capacitance
- 4.65nF
- Pd - Power Dissipation
- 190W
- Drain to Source Voltage
- 650V
- Current - Continuous Drain(Id)
- 33A
- Reverse Transfer Capacitance (Crss)
- 3.2pF
- RDS(on)
- 79mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 100nC@10V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.501 g
Overview
MDmesh™ V is a revolutionary Power MOSFET technology based on an innovative proprietary vertical process, which is combined with STMicroelectronics’ well-known PowerMESH™ horizontal layout structure. The resulting product has extremely low on-resistance, which is unmatched among silicon-based Power MOSFETs, making it especially suitable for applications which require superior power density and outstanding efficiencies.
Applications
- Switching applications
Key features
- Limited only by maximum temperature allowed
- TO-220 worldwide best RDS(on)
- Higher VDSS rating
- High dv/dt capability
- Excellent switching performance
- Easy to drive
- 100% avalanche tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BMW65N075UC1#C50153971Bestirpower · TO247-3 | Bestirpower | TO247-3 | 58 | ₹322.32 · 58 in stock | View |
 | WTM54N65FMP#C48642349WPMtek · TO-247 | WPMtek | TO-247 | 30 | ₹401.36 · 30 in stock | View |
 | STWA57N65M5#C472608ST · TO-247 | ST | TO-247 | 58 | ₹709.13 · 58 in stock | View |
 | STW57N65M5#C5268748ST · TO-247 | ST | TO-247 | 2 | ₹1,220.00 · 2 in stock | View |
 | STWA45N65M5#C3290665ST · TO-247 | ST | TO-247 | 4 | ₹1,628.27 · 4 in stock | View |
