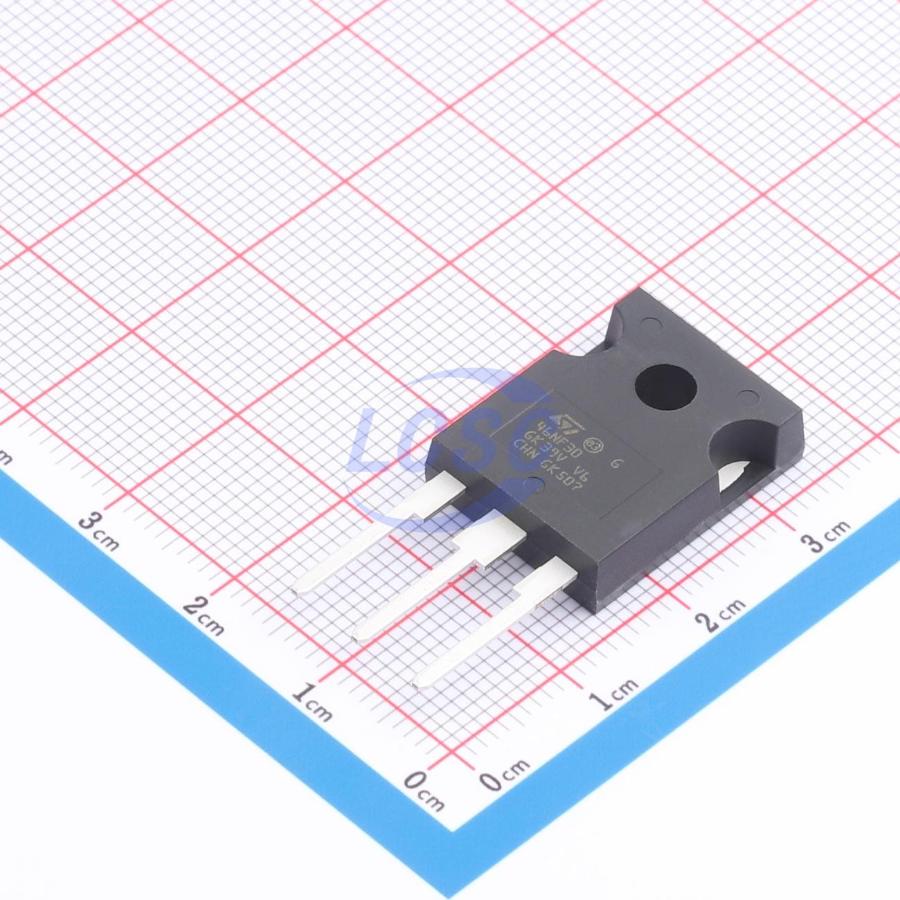

STW46NF30
300W 300V 42A 75mΩ@10V 1 N-channel N-Channel TO-247 Single FETs, MOSFETs RoHS
TO-247ROHS3 CompliantActive
- Manufacturer
- ST
- Manufacturer part #
- STW46NF30
- Store part #
- C2971570
- Package / case
- TO-247
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C2971570
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹823.44 | ₹823.44 |
| 10+ | ₹809.03 | ₹8,090.30 |
| 30+ | ₹799.36 | ₹23,980.80 |
| 100+ | ₹789.69 | ₹78,969.00 |
1 × ₹823.44
₹823.44
excl. GST
₹971.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
STW46NF30
₹823.44 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 442pF
- Ciss-Input Capacitance
- 3.2nF
- Pd - Power Dissipation
- 300W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 300V
- Current - Continuous Drain(Id)
- 42A
- Reverse Transfer Capacitance (Crss)
- 57pF
- RDS(on)
- 75mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 90nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 7.16 g
Overview
These power MOSFETs are developed using the STripFET process, specifically designed to minimize input capacitance and gate charge. This makes these devices suitable as main switches in advanced high-efficiency isolated DC-DC converters for telecom and computing applications, as well as applications with low gate charge drive requirements.
Applications
- Switching applications
Key features
- Excellent dv/dt capability
- 100% avalanche tested
- Low gate charge
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STW48N60M2#C145126ST · TO-247 | ST | TO-247 | 558 | ₹414.23 · 558 in stock | View |
 | BMW65N075UC1#C50153971Bestirpower · TO247-3 | Bestirpower | TO247-3 | 58 | ₹322.32 · 58 in stock | View |
 | MMQ60R078RFTH#C51902184MagnaChip Semicon · TO-247 | MagnaChip Semicon | TO-247 | 97 | ₹354.33 · 97 in stock | View |
 | CI47N65D4#C3019999Tokmas · TO-247 | Tokmas | TO-247 | 865 | ₹256.98 · 865 in stock | View |
 | XR65R75FRH#C42457157XNRUSEMI · TO-247 | XNRUSEMI | TO-247 | 22 | ₹374.87 · 22 in stock | View |
