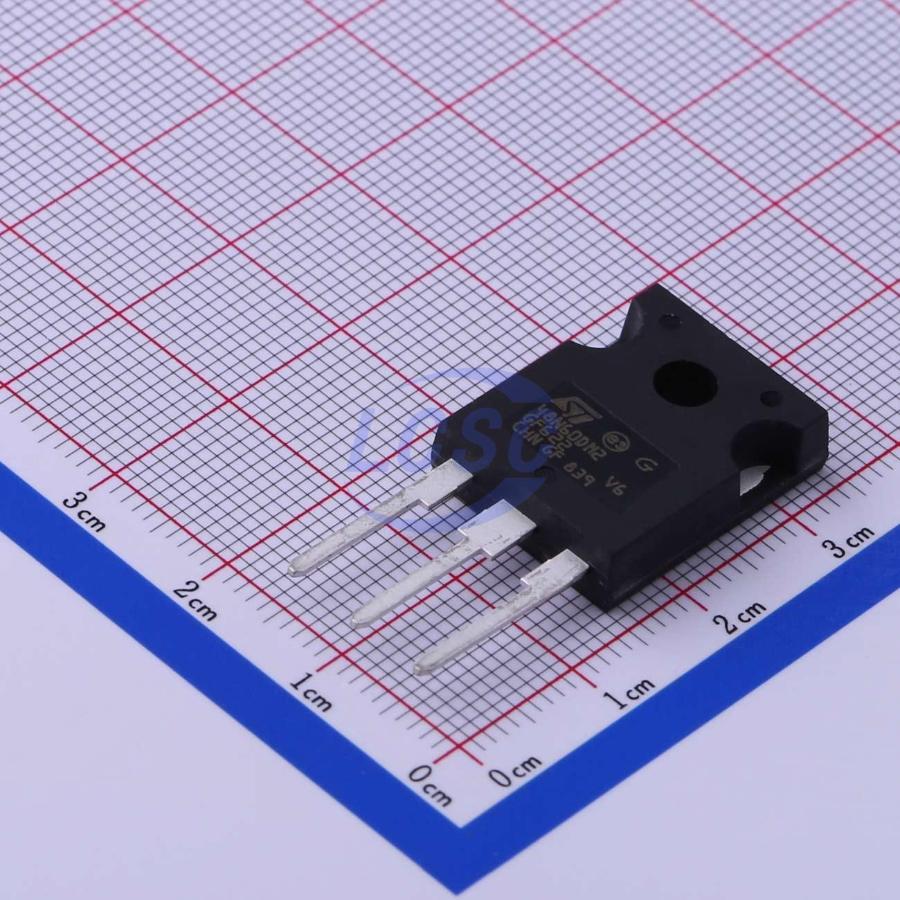

STW48N60DM2
N-Channel 600V 40A 300W Through Hole TO-247
TO-247ROHS3 CompliantActive
MOSFET N-CH 600V 40A TO-247
- Manufacturer
- ST
- Manufacturer part #
- STW48N60DM2
- Store part #
- C457474
- Package / case
- TO-247
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C457474
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹563.45 | ₹563.45 |
| 10+ | ₹503.04 | ₹5,030.40 |
| 30+ | ₹466.98 | ₹14,009.40 |
| 90+ | ₹430.69 | ₹38,762.10 |
| 510+ | ₹413.95 | ₹2,11,114.50 |
| 990+ | ₹406.35 | ₹4,02,286.50 |
1 × ₹563.45
₹563.45
excl. GST
₹664.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
STW48N60DM2
₹563.45 for 1 + GST
Specifications
- Ciss-Input Capacitance
- 3.25nF
- Pd - Power Dissipation
- 300W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 40A
- Reverse Transfer Capacitance (Crss)
- 4.5pF
- RDS(on)
- 79mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 70nC@10V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 4.54 g
Overview
This high voltage N-channel Power MOSFET is part of the MDmesh™ DM2 fast recovery diode series. It offers very low recovery charge (Ωrr) and time (trr) combined with low RDS(on), rendering it suitable for the most demanding high efficiency converters and ideal for bridge topologies and ZVS phase-shift converters.
Applications
- Switching applications
Key features
- Fast-recovery body diode
- Extremely low gate charge and input capacitance
- Low on-resistance
- 100% avalanche tested
- Extremely high dv/dt ruggedness
- Zener-protected
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STW48N60M2#C145126ST · TO-247 | ST | TO-247 | 558 | ₹414.23 · 558 in stock | View |
 | BMW60N076UC1#C42401703Bestirpower · TO-247-3 | Bestirpower | TO-247-3 | 51 | ₹237.08 · 51 in stock | View |
 | STWA48N60M2#C472626ST · TO-247 | ST | TO-247 | 1 | ₹573.11 · 1 in stock | View |
 | BMW65N075UC1#C50153971Bestirpower · TO247-3 | Bestirpower | TO247-3 | 58 | ₹322.32 · 58 in stock | View |
 | RS60R070W#C5371976REASUNOS · TO-247 | REASUNOS | TO-247 | 3 | ₹367.01 · 3 in stock | View |
