STDatasheet (PDF)

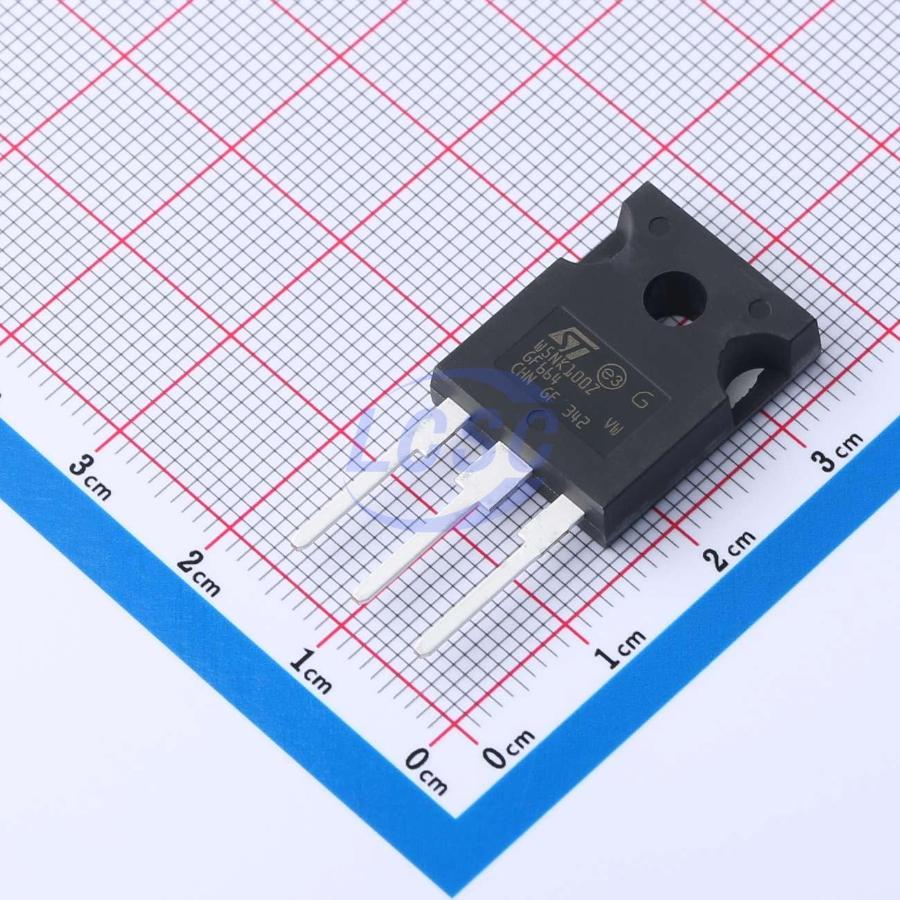

STW5NK100Z
N-Channel 1kV 3.5A 125W Through Hole TO-247-3
TO-247-3ROHS3 CompliantActive
MOSFET N-CH 1kV 3.5A TO-247-3
- Manufacturer
- ST
- Manufacturer part #
- STW5NK100Z
- Store part #
- C2965297
- Package / case
- TO-247-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
42 in stock
#C2965297
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹590.24 | ₹590.24 |
| 10+ | ₹504.05 | ₹5,040.50 |
| 30+ | ₹452.81 | ₹13,584.30 |
| 100+ | ₹400.92 | ₹40,092.00 |
| 500+ | ₹377.13 | ₹1,88,565.00 |
| 1,000+ | ₹366.40 | ₹3,66,400.00 |
1 × ₹590.24
₹590.24
excl. GST
₹696.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per reel
STW5NK100Z
₹590.24 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 106pF
- Ciss-Input Capacitance
- 1.154nF
- Pd - Power Dissipation
- 125W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 1kV
- Current - Continuous Drain(Id)
- 3.5A
- Reverse Transfer Capacitance (Crss)
- 21.3pF
- RDS(on)
- 2.7Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 42nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 3.75V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 30 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 7.14 g
Overview
The new SuperMESH series power MOSFETs represent a further design advancement built upon the well-established strip-based PowerMESH layout. In addition to a significant reduction in on-resistance, these devices feature excellent dv/dt capability, ensuring optimal performance even in the most demanding applications. The SuperMESH devices further complement the existing range of innovative high-voltage MOSFETs, which includes the groundbreaking MDmesh products.
Applications
- Switching applications
Key features
- Extremely high dv/dt capability
- 100% avalanche tested
- Minimized gate charge
- Extremely low intrinsic capacitance
- Excellent manufacturing repeatability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| MS9N150HJC0#C55042316MASPOWER · TO-247 | MASPOWER | TO-247 | 30 | ₹616.60 · 30 in stock | View | |
 | STW12N120K5#C457468ST · TO-247 | ST | TO-247 | On request | ₹1,467.71 · 0 in stock | View |
 | MS9N170HGC0#C37635839MASPOWER · TO-247 | MASPOWER | TO-247 | 30 | ₹561.93 · 30 in stock | View |
 | MS4N1350W#C5139255MASPOWER · TO-247 | MASPOWER | TO-247 | 73 | ₹246.14 · 73 in stock | View |
 | MS15N165HGC0#C19724668MASPOWER · TO-247 | MASPOWER | TO-247 | 30 | ₹887.88 · 30 in stock | View |
