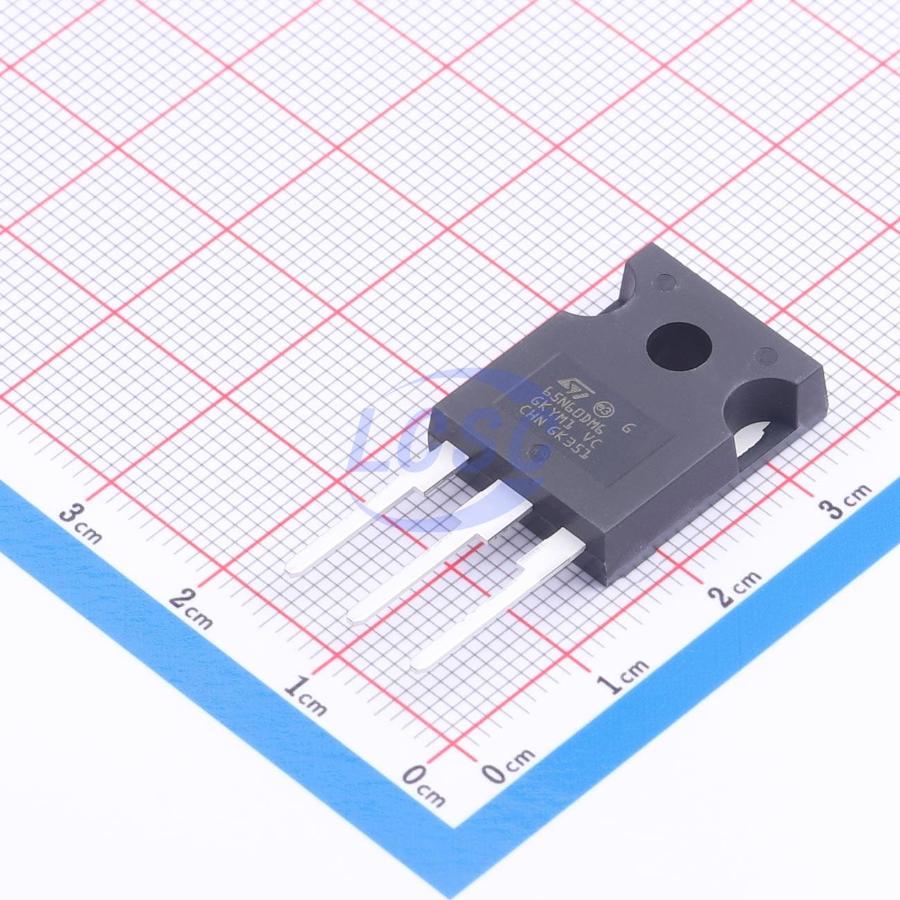

STW65N60DM6

600V 46A 368W 71mΩ@10V TO-247 Single FETs, MOSFETs RoHS

TO-247ROHS CompliantActive

Manufacturer: ST
Manufacturer part #: STW65N60DM6
Store part #: C5268695
Package / case: TO-247
Category: Single FETs, MOSFETs
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

25 in stock

#C5268695

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹1,729.17	₹1,729.17
10+	₹1,698.88	₹16,988.80
30+	₹1,678.68	₹50,360.40
90+	₹1,658.46	₹1,49,261.40

Quantity (min 1)

1 × ₹1,729.17

₹1,729.17

excl. GST

₹2,040.42 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 30 per tube

STW65N60DM6

₹1,729.17 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -55℃~+150℃
Drain to Source Voltage: 600V
Current - Continuous Drain(Id): 46A
Ciss-Input Capacitance: 2.5nF
Pd - Power Dissipation: 368W
Reverse Transfer Capacitance (Crss): 4pF
RDS(on): 71mΩ@10V
Gate Threshold Voltage (Vgs(th)): 4.75V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 30 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 6.98 g

Overview

These high-voltage N-channel Power MOSFETs are part of the MDmesh DM6 fast-recovery diode series. Compared with the previous MDmesh fast generation, DM6 combines very low recovery charge (Ωrr), recovery time (trr) and excellent improvement in RDS(on) per area with one of the most effective switching behaviors available in the market for the most demanding high-efficiency bridge topologies and ZVS phase-shift converters.
