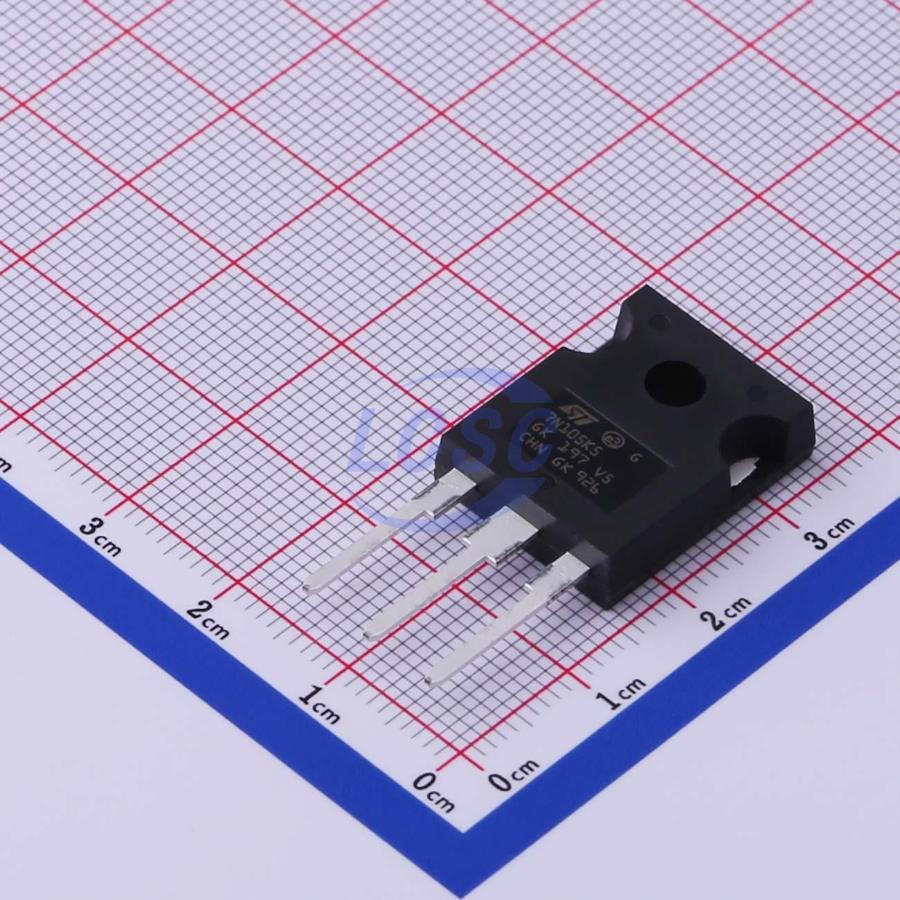

STW7N105K5
110W 1.05kV 4A 2Ω@10V 1 N-channel N-Channel TO-247-3 Single FETs, MOSFETs RoHS
TO-247-3ROHS3 CompliantActive
- Manufacturer
- ST
- Manufacturer part #
- STW7N105K5
- Store part #
- C495252
- Package / case
- TO-247-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
216 in stock
#C495252
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹436.43 | ₹436.43 |
| 10+ | ₹371.31 | ₹3,713.10 |
| 30+ | ₹332.55 | ₹9,976.50 |
| 100+ | ₹293.35 | ₹29,335.00 |
| 500+ | ₹275.49 | ₹1,37,745.00 |
| 1,000+ | ₹267.22 | ₹2,67,220.00 |
1 × ₹436.43
₹436.43
excl. GST
₹514.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
STW7N105K5
₹436.43 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 40pF
- Ciss-Input Capacitance
- 380pF
- Pd - Power Dissipation
- 110W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 1.05kV
- Current - Continuous Drain(Id)
- 4A
- Reverse Transfer Capacitance (Crss)
- 0.65pF
- RDS(on)
- 2Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 17nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.76 g
Overview
This ultra-high voltage N-channel power MOSFET is designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure. This delivers significantly reduced on-resistance and ultra-low gate charge, making it ideal for applications with demanding power density and efficiency requirements.
Applications
- Switching applications
Key features
- Industry-lowest RDS(on) × area product
- Best-in-class figure of merit (FoM)
- Ultra-low gate charge
- 100% avalanche tested
- Zener protection
