STDatasheet (PDF)

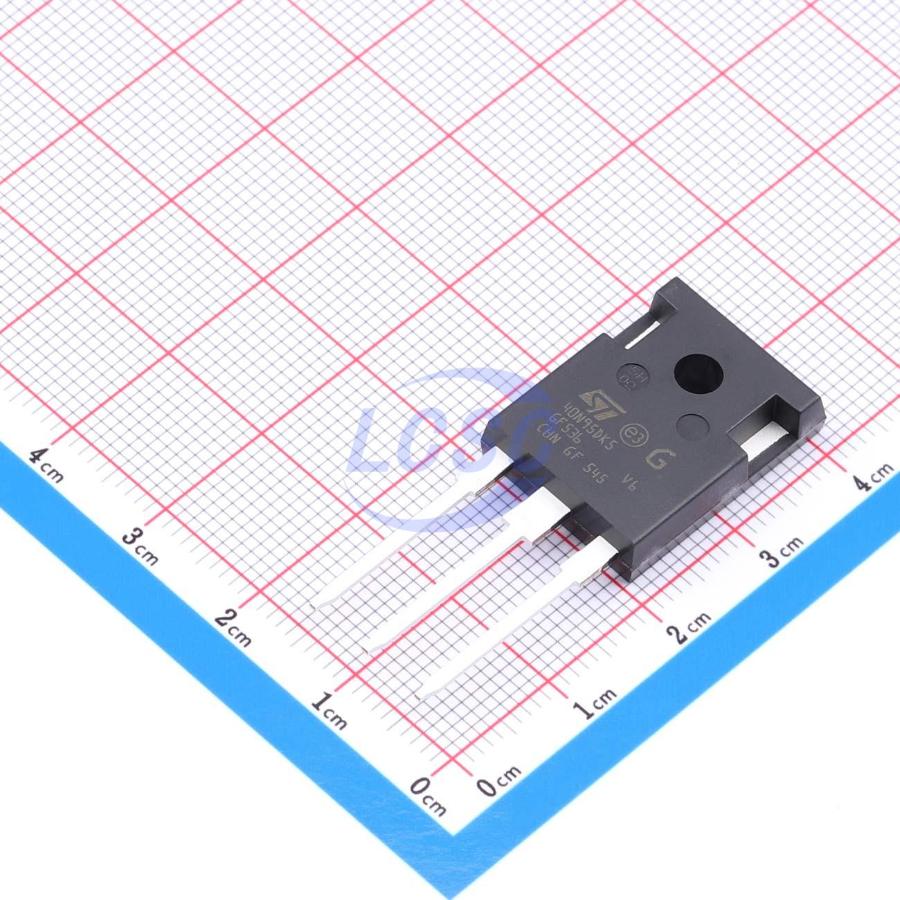

STWA40N95DK5
450W 950V 38A 120mΩ@10V 1 N-channel N-Channel TO-247 Single FETs, MOSFETs RoHS
TO-247ROHS CompliantActive
- Manufacturer
- ST
- Manufacturer part #
- STWA40N95DK5
- Store part #
- C5268635
- Package / case
- TO-247
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C5268635
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹6,290.38 | ₹6,290.38 |
| 30+ | ₹6,107.67 | ₹1,83,230.10 |
1 × ₹6,290.38
₹6,290.38
excl. GST
₹7,422.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
STWA40N95DK5
₹6,290.38 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 235pF
- Ciss-Input Capacitance
- 3.48nF
- Pd - Power Dissipation
- 450W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 950V
- Current - Continuous Drain(Id)
- 38A
- Reverse Transfer Capacitance (Crss)
- 2.3pF
- RDS(on)
- 120mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 100nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 7.562 g
Overview
These ultra-high voltage N-channel power MOSFETs are part of the MDmesh DK5 fast recovery diode series. MDmesh DK5 combines extremely low recovery charge (Qrr) and recovery time (trr), significantly improves RDS(on)*area, and features highly efficient switching characteristics, making it ideal for half-bridge and full-bridge converters.
Applications
- Switching applications
Key features
- Fast recovery body diode
- Optimized RDS(on) × area
- Low gate charge, input capacitance, and resistance
- 100% avalanche tested
- Extremely high dv/dt robustness
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STW40N95DK5#C2970865ST · TO-247-3 | ST | TO-247-3 | 40 | ₹1,667.79 · 40 in stock | View |
 | SCT4036KEC11#C5905588ROHM · TO-247N | ROHM | TO-247N | 10 | ₹2,675.71 · 10 in stock | View |
 | SCT2080KEHRC11#C3281179ROHM · TO-247N | ROHM | TO-247N | 30 | ₹2,317.75 · 30 in stock | View |
| IPW95R060PFD7XKSA1#C20191634Infineon · TO-247-3-41 | Infineon | TO-247-3-41 | 2 | ₹1,803.66 · 2 in stock | View | |
| SP005547003#C39345903Infineon · TO-247-3 | Infineon | TO-247-3 | 3 | ₹5,920.68 · 3 in stock | View | |
