HXY MOSFETDatasheet (PDF)

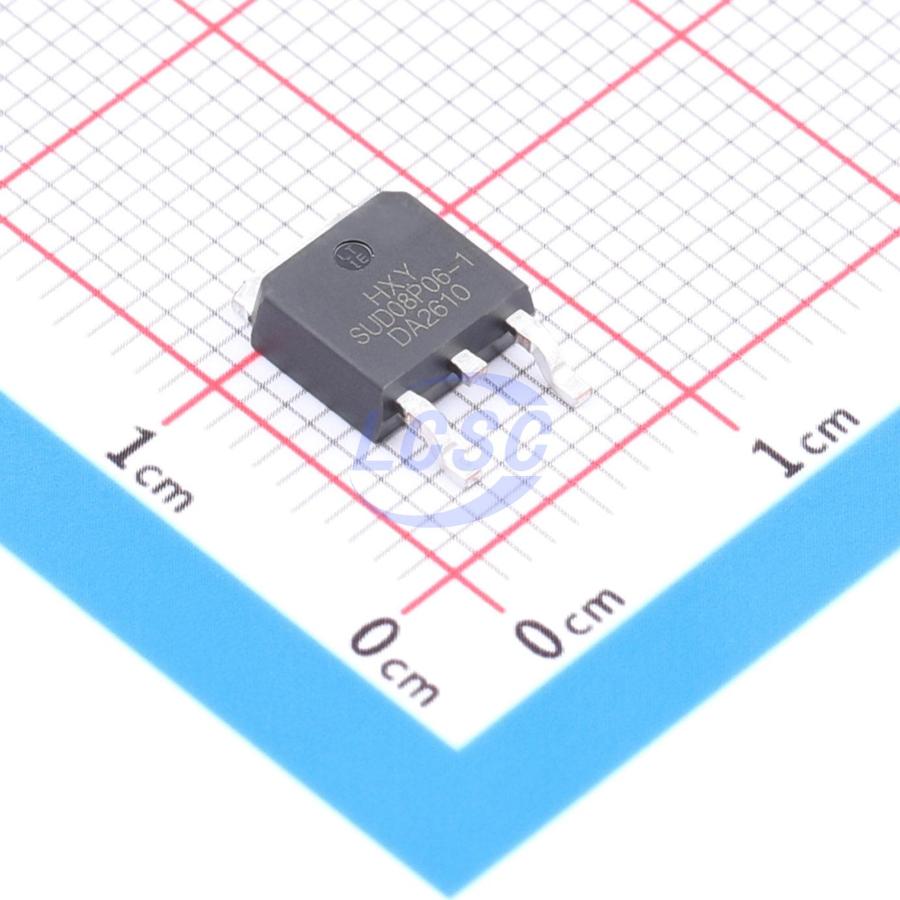

SUD08P06-155L-GE3-HXY
60V 10A 25W 80mΩ@10V 1 P-Channel P-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- SUD08P06-155L-GE3-HXY
- Store part #
- C54582430
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
47 in stock
#C54582430
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹97.80 | ₹97.80 |
| 10+ | ₹80.40 | ₹804.00 |
| 30+ | ₹71.57 | ₹2,147.10 |
| 100+ | ₹62.76 | ₹6,276.00 |
| 500+ | ₹51.60 | ₹25,800.00 |
| 1,000+ | ₹48.79 | ₹48,790.00 |
1 × ₹97.80
₹97.80
excl. GST
₹115.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SUD08P06-155L-GE3-HXY
₹97.80 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 51pF
- Current - Continuous Drain(Id)
- 10A
- Ciss-Input Capacitance
- 715pF
- Pd - Power Dissipation
- 25W
- Reverse Transfer Capacitance (Crss)
- 34pF
- RDS(on)
- 80mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 5.85nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.402 g
Overview
SUD08P06-155L-GE3 employs advanced trench technology to deliver excellent on-resistance (RDS(ON)), low gate charge, and operation down to 4.5V gate voltage. The device is suitable for battery protection or other switching applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- Drain-Source Voltage (VDS) = -60V, Drain Current (ID) = -15A
- On-Resistance (RDS(ON)) < 97mΩ at Gate-Source Voltage (VGS) = 10V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPD25DP06NM-HXY#C20606266HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 3 | ₹68.85 · 3 in stock | View |
 | DMP6185SK3-HXY#C22366771HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 25 | ₹31.18 · 25 in stock | View |
 | AUIRFR9024N-HXY#C22366773HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 133 | ₹57.89 · 133 in stock | View |
 | NTD2955-HXY#C22366774HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 40 | ₹49.35 · 40 in stock | View |
 | STP607D-HXY#C22366775HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 15 | ₹22.95 · 15 in stock | View |
