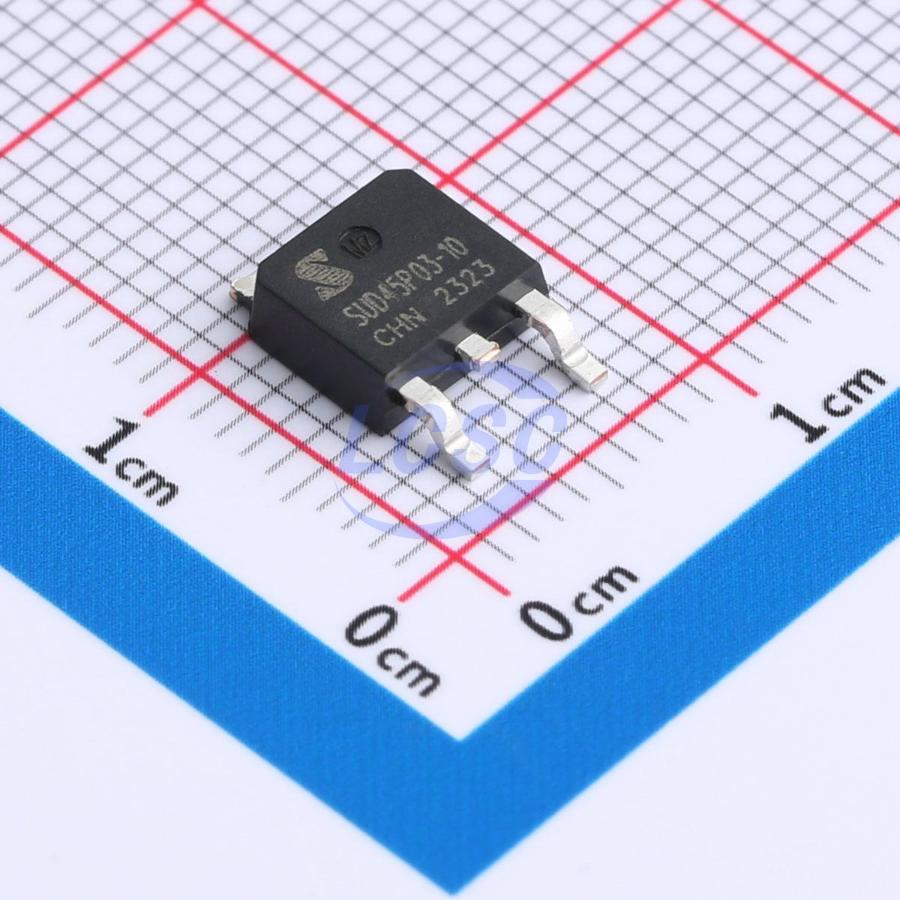

SUD45P03-10-E3
P-Channel 30V 50A 75W Surface Mount TO-252
TO-252ROHS CompliantActive
MOSFET P-CH 30V 50A TO-252
- Manufacturer
- JSMSEMI
- Manufacturer part #
- SUD45P03-10-E3
- Store part #
- C7436406
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,842 in stock
#C7436406
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹43.63 | ₹43.63 |
| 10+ | ₹37.98 | ₹379.80 |
| 30+ | ₹35.60 | ₹1,068.00 |
| 100+ | ₹32.78 | ₹3,278.00 |
| 500+ | ₹31.47 | ₹15,735.00 |
| 1,000+ | ₹30.60 | ₹30,600.00 |
1 × ₹43.63
₹43.63
excl. GST
₹51.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SUD45P03-10-E3
₹43.63 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 2.35nF
- Pd - Power Dissipation
- 75W
- Reverse Transfer Capacitance (Crss)
- 285pF
- RDS(on)
- 14mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 40nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.373 g
Overview
This P-Channel MOSFET uses advanced trench technology and design to provide excellent RDS(on) with low gate charge. It can be used in a wide variety of applications.
Applications
- It looks like the text content after the code block marker is empty. Please provide the text you'd like me to translate, and I'll be happy to help!
Key features
- VDS=-30V, ID=-50A, RDS(ON)<14mΩ@VGS=-10V
- Low gate charge.
- Green device available.
- Advanced high cell denity trench technology for ultra low RDS(ON).
- Excellent package for good heat dissipation.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFR5305-JSM#C2874618JSMSEMI · TO-252 | JSMSEMI | TO-252 | 9,886 | ₹63.53 · 9,886 in stock | View |
 | AOD403#C6396161JSMSEMI · TO-252 | JSMSEMI | TO-252 | 4,065 | ₹37.67 · 4,065 in stock | View |
 | AOD4185-JSM#C18189874JSMSEMI · TO-252 | JSMSEMI | TO-252 | 2,150 | ₹47.96 · 2,150 in stock | View |
 | JSM60P50K#C18191942JSMSEMI · TO-252 | JSMSEMI | TO-252 | 778 | ₹54.76 · 778 in stock | View |
| AOD425-JSM#C18190378JSMSEMI · TO-252 | JSMSEMI | TO-252 | On request | ₹57.76 · 0 in stock | View | |
