VISHAYDatasheet (PDF)

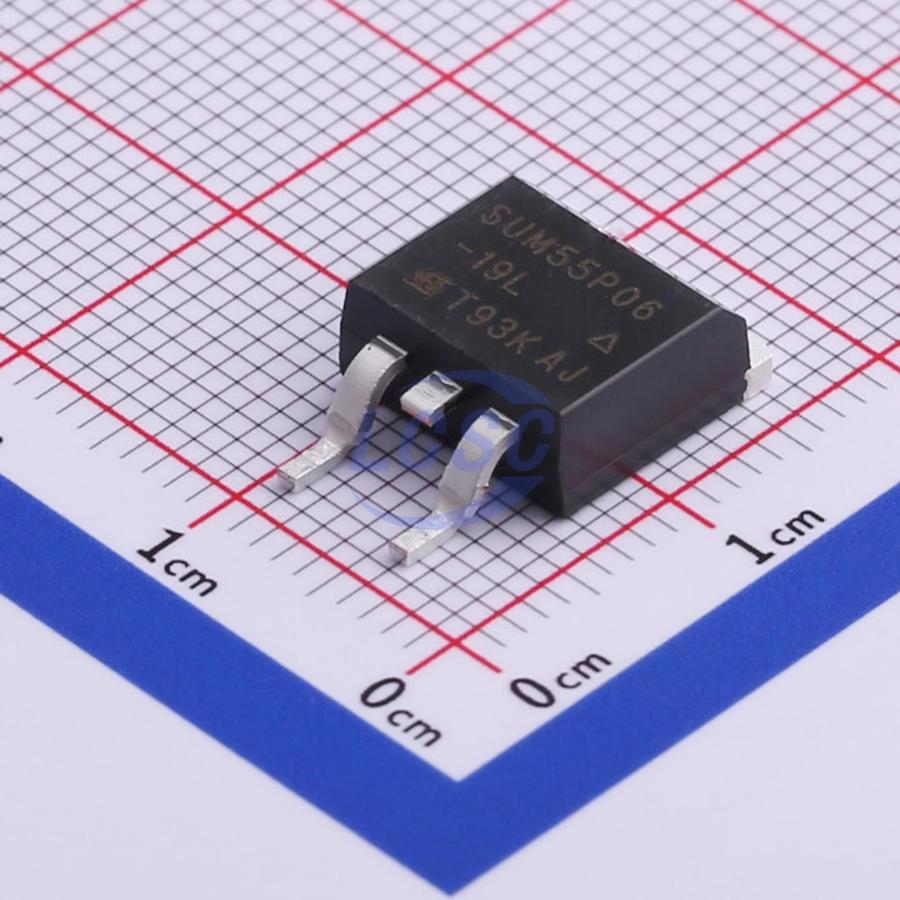

SUM55P06-19L-E3
P-Channel 60V Surface Mount TO-263(D2Pak)
TO-263(D2PAK)ROHS3 CompliantActive
MOSFET P-CH 60V TO-263(D2PAK)
- Manufacturer
- VISHAY
- Manufacturer part #
- SUM55P06-19L-E3
- Store part #
- C506642
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18 in stock
#C506642
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹378.26 | ₹378.26 |
| 10+ | ₹317.94 | ₹3,179.40 |
| 30+ | ₹280.16 | ₹8,404.80 |
| 100+ | ₹241.51 | ₹24,151.00 |
| 500+ | ₹223.92 | ₹1,11,960.00 |
| 800+ | ₹216.40 | ₹1,73,120.00 |
1 × ₹378.26
₹378.26
excl. GST
₹446.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
SUM55P06-19L-E3
₹378.26 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 390pF
- Ciss-Input Capacitance
- 3.5nF
- Pd - Power Dissipation
- 3.75W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 55A
- Reverse Transfer Capacitance (Crss)
- 290pF
- RDS(on)
- 19mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 76nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.648 g
Overview
Key features
- TrenchFET Power MOSFET
- P-Channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AUIRF4905STRL-VB#C52989012VBsemi Elec · TO-263 | VBsemi Elec | TO-263 | 18 | ₹218.14 · 18 in stock | View |
 | RF1S30P05SM-VB#C52989013VBsemi Elec · TO-263 | VBsemi Elec | TO-263 | 5 | ₹174.38 · 5 in stock | View |
 | NP36P06KDG-VB#C52989014VBsemi Elec · TO-263 | VBsemi Elec | TO-263 | 5 | ₹174.38 · 5 in stock | View |
 | IRF4905STRLPBF-VB#C55251748VBsemi Elec · TO-263 | VBsemi Elec | TO-263 | 5 | ₹104.37 · 5 in stock | View |
 | HSH6115#C2828506HUASHUO · TO-263 | HUASHUO | TO-263 | 503 | ₹88.20 · 503 in stock | View |
