VISHAYDatasheet (PDF)

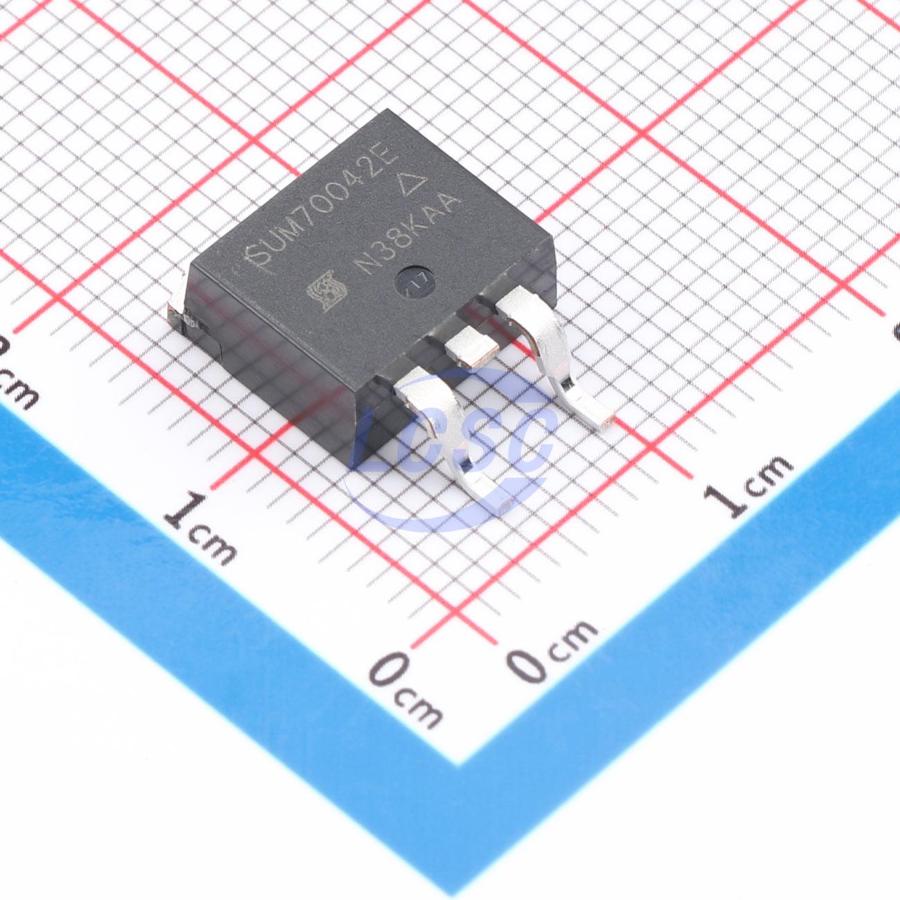

SUM70042E-GE3
100V 150A 125W 4.5mΩ@7.5V 1 N-channel N-Channel TO-263(D2PAK) Single FETs, MOSFETs RoHS
TO-263(D2PAK)ROHS3 CompliantActive
MOSFET N-CH 100V 150A TO-263(D2PAK)
- Manufacturer
- VISHAY
- Manufacturer part #
- SUM70042E-GE3
- Store part #
- C3291071
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C3291071
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹468.36 | ₹468.36 |
| 10+ | ₹460.83 | ₹4,608.30 |
| 30+ | ₹455.89 | ₹13,676.70 |
| 100+ | ₹450.73 | ₹45,073.00 |
1 × ₹468.36
₹468.36
excl. GST
₹552.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per tube
SUM70042E-GE3
₹468.36 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 570pF
- Current - Continuous Drain(Id)
- 150A
- Ciss-Input Capacitance
- 6.49nF
- Pd - Power Dissipation
- 125W
- Reverse Transfer Capacitance (Crss)
- 20pF
- RDS(on)
- 4.5mΩ@7.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 110nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 800 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.995 g
Overview
Applications
- Switching power supplies
- DC/DC converters
- Power tools
- Motor drive switches
- DC/AC inverters
- Battery management
- OR-ing / e-fuse
Key features
- Trench field-effect transistor (TrenchFET) power MOSFET
- Maximum junction temperature 175 °C
- Ultra-low gate-drain charge (Qgd) reduces power loss during Miller plateau voltage (Vplateau) transition
- 100% tested for gate resistance (Rg) and unclamped inductive switching (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBL1105#C416333VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 4 | ₹210.58 · 4 in stock | View |
 | STB100N10F7-TP#C49190793TECH PUBLIC · TO-263 | TECH PUBLIC | TO-263 | 88 | ₹129.73 · 88 in stock | View |
 | KCB3010A#C2839424KIA Semicon Tech · TO-263 | KIA Semicon Tech | TO-263 | 769 | ₹78.23 · 769 in stock | View |
 | HYG042N10NS1B#C2837371HUAYI · TO-263-2L | HUAYI | TO-263-2L | 756 | ₹143.61 · 756 in stock | View |
