MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
VISHAYDatasheet (PDF)

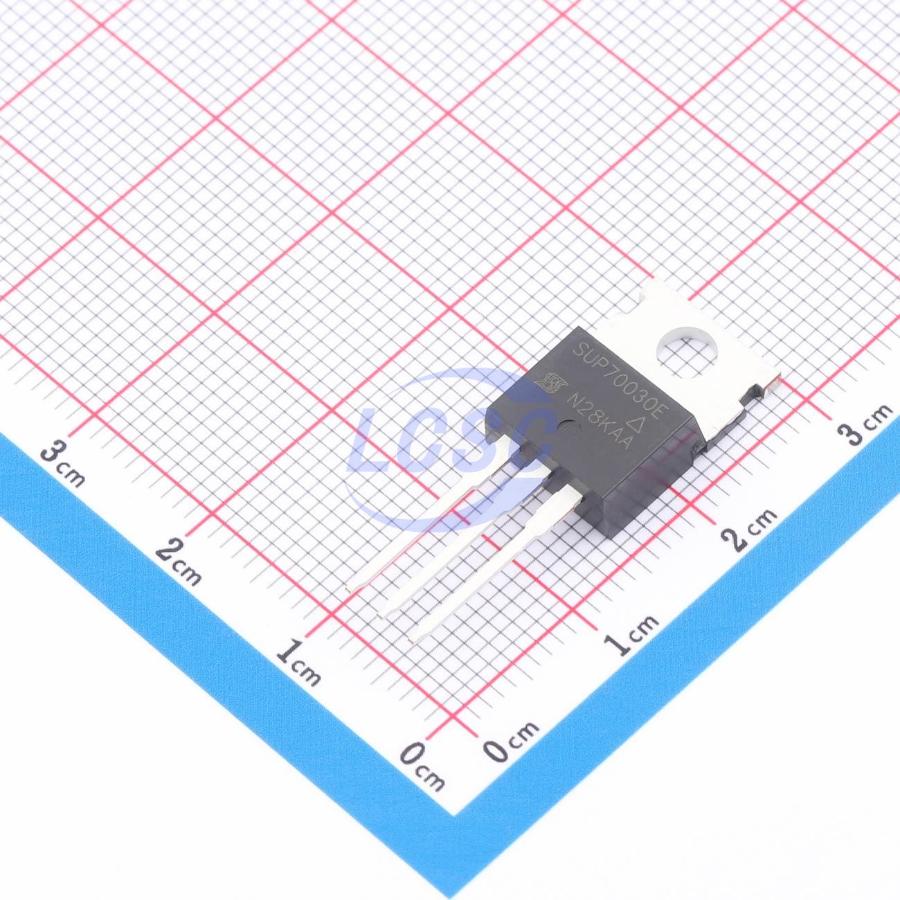

SUP70030E-GE3
100V 150A 375W 3.84mΩ@7.5V 1 N-channel N-Channel TO-220AB Single FETs, MOSFETs RoHS
TO-220ABROHS3 CompliantActive
N-Channel, Current:150A, Voltage:100V
- Manufacturer
- VISHAY
- Manufacturer part #
- SUP70030E-GE3
- Store part #
- C3280790
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
21 in stock
#C3280790
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹473.50 | ₹473.50 |
| 10+ | ₹405.26 | ₹4,052.60 |
| 30+ | ₹364.63 | ₹10,938.90 |
| 100+ | ₹323.78 | ₹32,378.00 |
| 500+ | ₹304.87 | ₹1,52,435.00 |
| 1,000+ | ₹296.18 | ₹2,96,180.00 |
1 × ₹473.50
₹473.50
excl. GST
₹558.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
SUP70030E-GE3
₹473.50 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 150A
- Ciss-Input Capacitance
- 10.87nF
- Pd - Power Dissipation
- 375W
- Reverse Transfer Capacitance (Crss)
- 40pF
- RDS(on)
- 3.84mΩ@7.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 214nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.98 g
Overview
Applications
- Power Supply
- Secondary Synchronous Rectification
- DC/DC Converter
- Power Tools
- Motor Drive Switch
- DC/AC Inverter
- Battery Management
- OR Function / Electronic Fuse
Key features
- TrenchFET Power MOSFET
- Maximum junction temperature 175 °C
- Ultra-low Qgd minimizes power loss during Miller plateau crossing
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSP0076A#C2903573HUASHUO · TO-220 | HUASHUO | TO-220 | 110 | ₹286.58 · 110 in stock | View |
 | IRFB4110PBF#C2650Infineon · TO-220 | Infineon | TO-220 | 50 | ₹133.57 · 50 in stock | View |
 | MDP14N050TH#C51891807MagnaChip Semicon · TO-220 | MagnaChip Semicon | TO-220 | 404 | ₹146.14 · 404 in stock | View |
 | OSP300N10G#C45359868OSEN · TO-220AB | OSEN | TO-220AB | 8 | ₹203.40 · 8 in stock | View |
 | IPP018N10N5XKSA1#C20191606Infineon · TO-220-3 | Infineon | TO-220-3 | 1 | ₹591.29 · 1 in stock | View |
