VISHAYDatasheet (PDF)

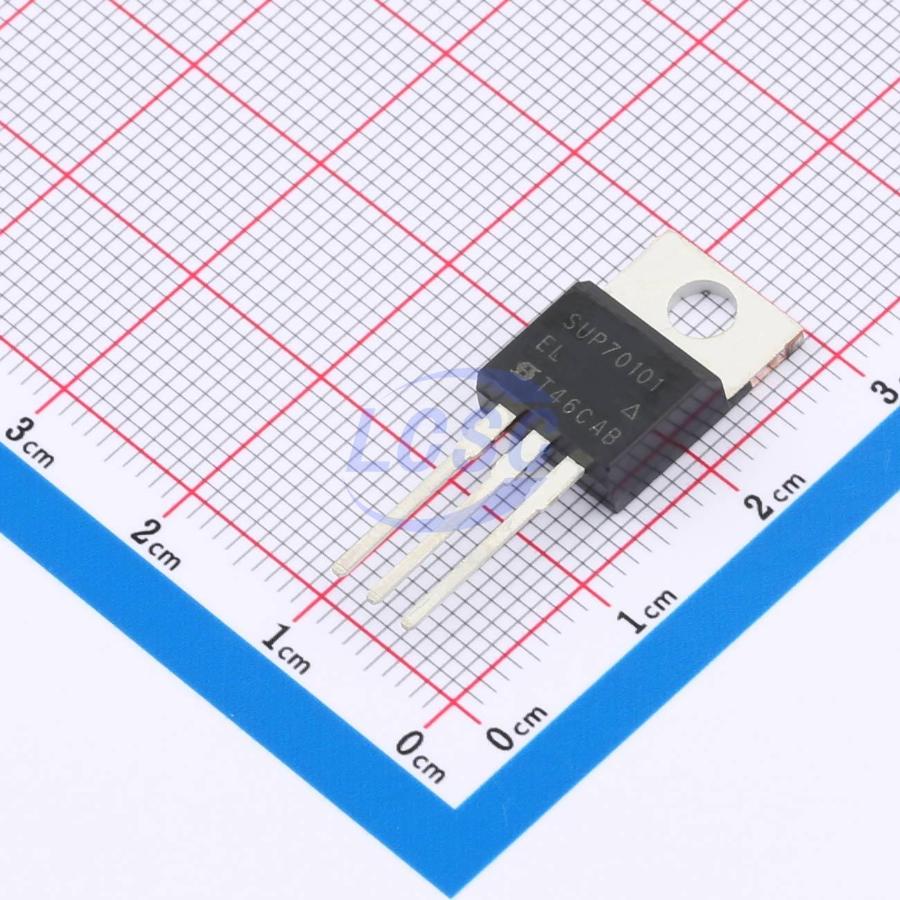

SUP70101EL-GE3
100V 120A 125W 10.1mΩ@10V 1 P-Channel P-Channel TO-220AB Single FETs, MOSFETs RoHS
TO-220ABROHS3 CompliantActive
MOSFET P-CH 100V 120A TO-220AB
- Manufacturer
- VISHAY
- Manufacturer part #
- SUP70101EL-GE3
- Store part #
- C5932059
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C5932059
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹540.96 | ₹540.96 |
| 10+ | ₹458.35 | ₹4,583.50 |
| 50+ | ₹409.35 | ₹20,467.50 |
| 100+ | ₹359.70 | ₹35,970.00 |
| 500+ | ₹336.94 | ₹1,68,470.00 |
| 1,000+ | ₹326.53 | ₹3,26,530.00 |
1 × ₹540.96
₹540.96
excl. GST
₹638.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
SUP70101EL-GE3
₹540.96 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 2.18nF
- Current - Continuous Drain(Id)
- 120A
- Ciss-Input Capacitance
- 7nF
- Pd - Power Dissipation
- 125W
- Reverse Transfer Capacitance (Crss)
- 170pF
- RDS(on)
- 10.1mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 125nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3 g
Overview
Applications
- Battery protection
- Motor drive control
- Load switch
Key features
- TrenchFET Power MOSFET
- Low thermal resistance package
- Maximum junction temperature 175 °C
- Low on-resistance RDS(on) for minimized conduction losses
- Logic-level gate drive compatible
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | S120P10T#C53134300HL · TO-220 | HL | TO-220 | 903 | ₹151.18 · 903 in stock | View |
 | XRS120P10T#C49305568XNRUSEMI · TO-220AB | XNRUSEMI | TO-220AB | 69 | ₹219.42 · 69 in stock | View |
 | MS120P10HIT0#C55042283MASPOWER · TO-220 | MASPOWER | TO-220 | 50 | ₹446.08 · 50 in stock | View |
| RX3P12BATC16#C20109391ROHM · TO-220AB | ROHM | TO-220AB | 20 | ₹762.46 · 20 in stock | View | |
 | XRS150P10T#C42457140XNRUSEMI · TO-220AB | XNRUSEMI | TO-220AB | 8 | ₹290.61 · 8 in stock | View |
