HXY MOSFETDatasheet (PDF)

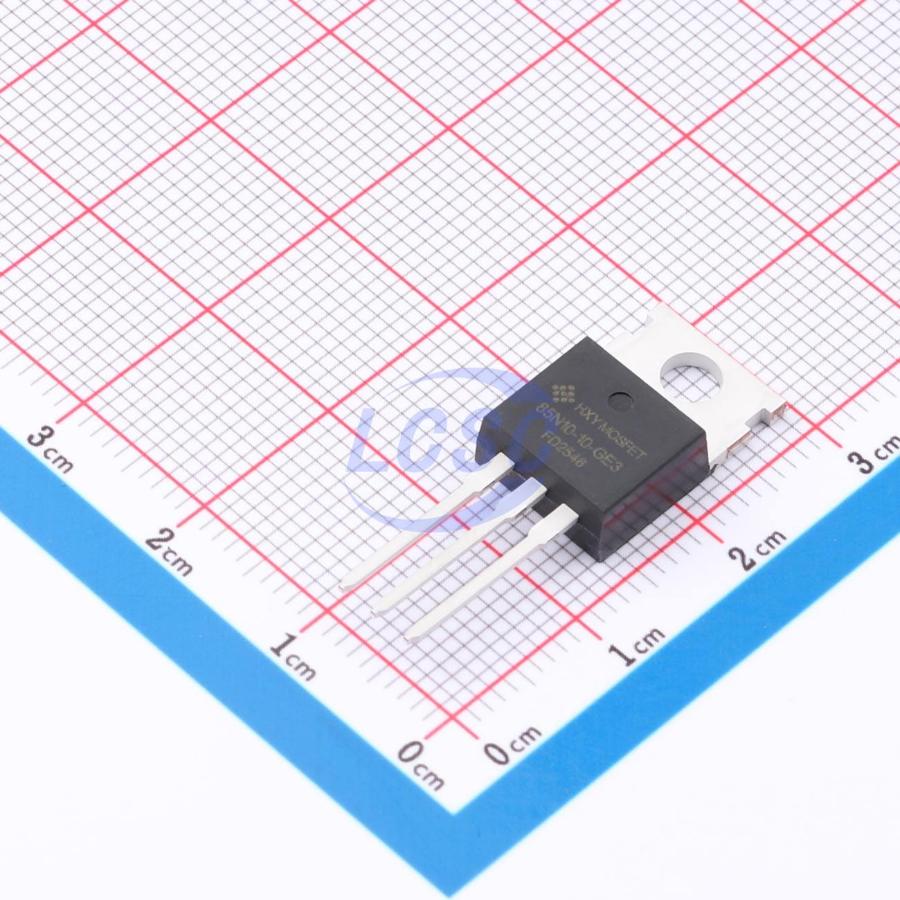

SUP85N10-10-GE3-HXY
100W 100V 70A 8.5mΩ@10V 1 N-channel N-Channel TO-220C Single FETs, MOSFETs
TO-220CRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- SUP85N10-10-GE3-HXY
- Store part #
- C53262909
- Package / case
- TO-220C
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C53262909
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹394.11 | ₹394.11 |
| 10+ | ₹339.12 | ₹3,391.20 |
| 50+ | ₹304.54 | ₹15,227.00 |
| 100+ | ₹269.32 | ₹26,932.00 |
| 500+ | ₹253.43 | ₹1,26,715.00 |
| 1,000+ | ₹246.55 | ₹2,46,550.00 |
1 × ₹394.11
₹394.11
excl. GST
₹465.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
SUP85N10-10-GE3-HXY
₹394.11 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 451pF
- Ciss-Input Capacitance
- 1.368nF
- Pd - Power Dissipation
- 100W
- Configuration
- Standalone
- Drain to Source Voltage
- 100V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 70A
- Reverse Transfer Capacitance (Crss)
- 12.9pF
- RDS(on)
- 8.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 31.3nC@50V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.028 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CSD19533KCS-HXY#C53262894HXY MOSFET · TO-220C | HXY MOSFET | TO-220C | 12 | ₹150.82 · 12 in stock | View |
 | IRFB4410PBF-HXY#C53262895HXY MOSFET · TO-220C | HXY MOSFET | TO-220C | 39 | ₹148.41 · 39 in stock | View |
 | STP120NF10-HXY#C53262905HXY MOSFET · TO-220C | HXY MOSFET | TO-220C | 30 | ₹97.45 · 30 in stock | View |
 | SUP85N10-10-E3-HXY#C53262906HXY MOSFET · TO-220C | HXY MOSFET | TO-220C | 49 | ₹246.55 · 49 in stock | View |
 | BUK7510-100B-HXY#C53262913HXY MOSFET · TO-220C | HXY MOSFET | TO-220C | 39 | ₹121.13 · 39 in stock | View |
