SilergyDatasheet (PDF)

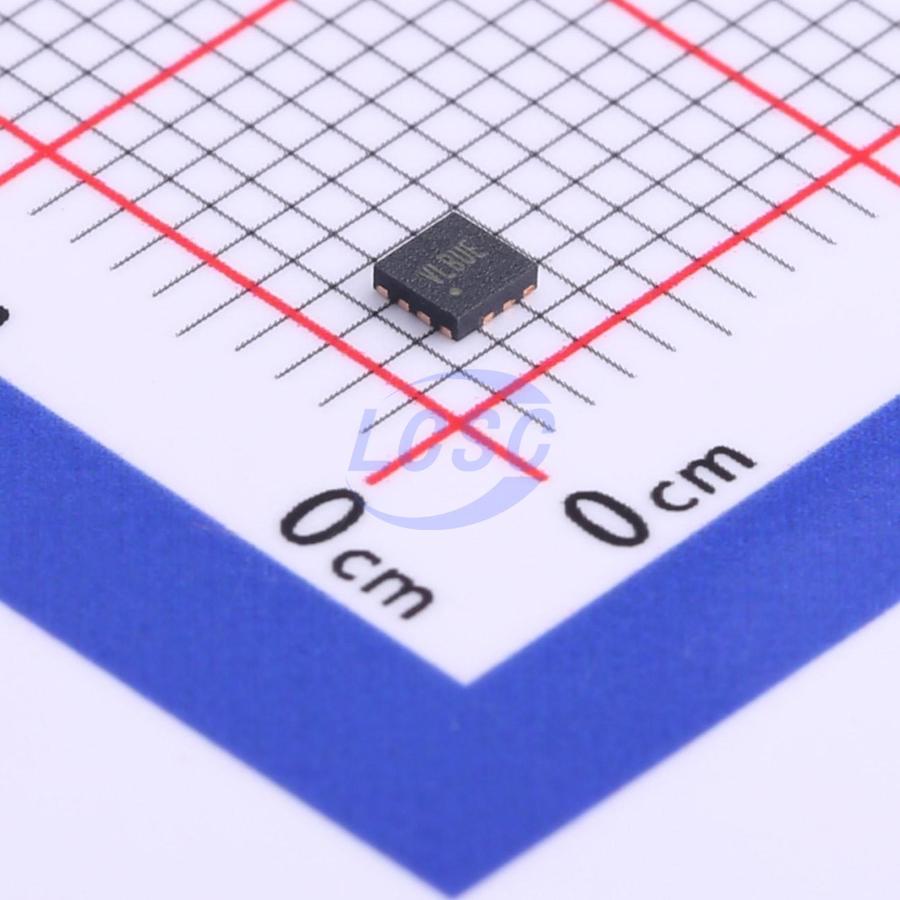

SY7065AQMC
500kHz Boost Adjustable 2.5V~5.5V 5A QFN-10(2x2) Voltage Regulators - DC DC Switching Regulators
QFN-10(2x2)RoHSActive
High Efficiency 1.8V to 5.5V Synchronous Boost Regulator
- Manufacturer
- Silergy
- Manufacturer part #
- SY7065AQMC
- Store part #
- C106908
- Package / case
- QFN-10(2x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,554 in stock
#C106908
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.70 | ₹75.70 |
| 10+ | ₹59.18 | ₹591.80 |
| 30+ | ₹51.99 | ₹1,559.70 |
| 100+ | ₹43.08 | ₹4,308.00 |
| 500+ | ₹37.41 | ₹18,705.00 |
| 1,000+ | ₹35.03 | ₹35,030.00 |
1 × ₹75.70
₹75.70
excl. GST
₹89.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY7065AQMC
₹75.70 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 500kHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Load disconnect
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 1.8V~5.25V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 2.5V~5.5V
- Output Current
- 5A
- Quiescent Current
- 27uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.025 g
Overview
The SY7065/SY7065A is a high efficiency synchronous Boost regulator that converts down to 1.8V input and up to 5.5V output voltage. It adopts NMOS for the main switch and PMOS for the synchronous switch. It can disconnect the output from input during the shutdown mode.
Applications
- All Single-cell Li or Dual-cell Battery Operated Products as MP-3 Player, PDAs, and Other Portable Equipment
Key features
- 1.8V Minimum Input Voltage
- Adjustable Output Voltage from 2.5V to 5.5V
- 5A Peak Current Limit
- Input Under Voltage Lockout
- Load Disconnect during Shutdown
- Output Over Voltage Protection
- Input Battery Voltage Monitor
- Automatic Output Discharge at Shutdown:
- SY7065: Auto Output Discharge Function
- SY7065A: No Output Discharge Function
- Low RDS(ON) (Main Switch/Synchronous Switch) at 5.0V Output: 20/40mΩ
- Compact Package: QFN2×2–10
