SilergyDatasheet (PDF)

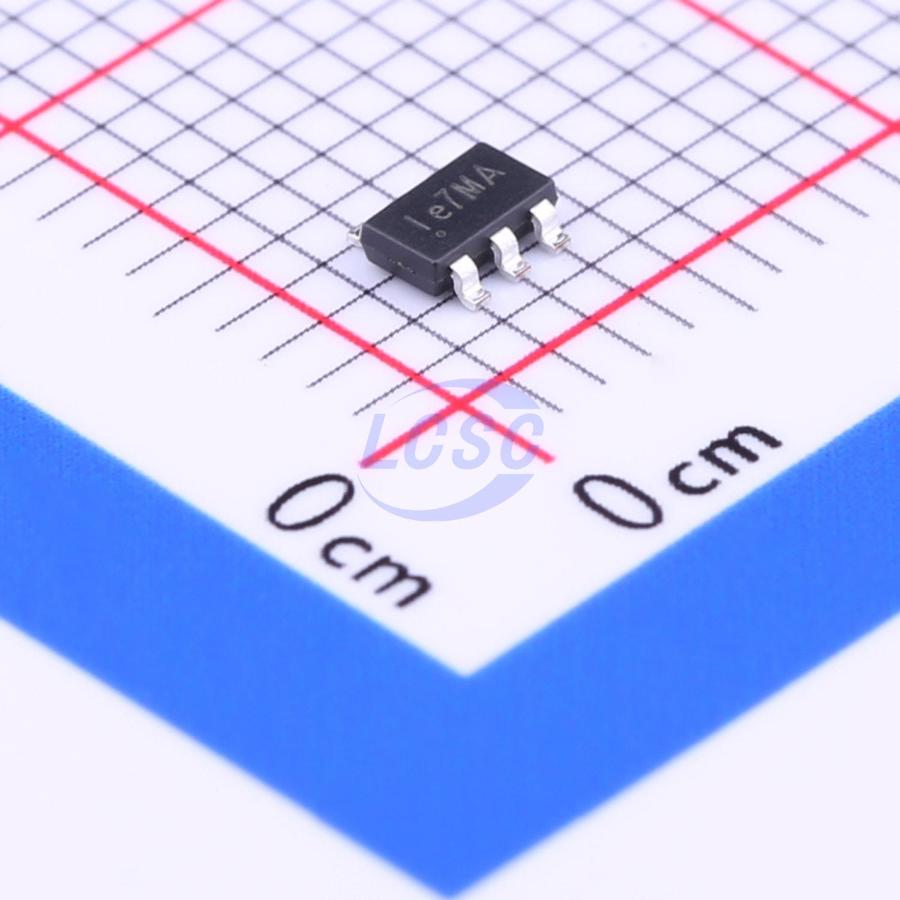

SY7069ADC
Boost 1MHz Adjustable 3A 2.5V~5.5V TSOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
TSOT-23-6ROHS CompliantActive
5.5V Maximum Output, 3A Valley Current, 1MHz Synchronous Boost with Auto Bypass Function
- Manufacturer
- Silergy
- Manufacturer part #
- SY7069ADC
- Store part #
- C207630
- Package / case
- TSOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,675 in stock
#C207630
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹53.13 | ₹265.65 |
| 50+ | ₹43.34 | ₹2,167.00 |
| 150+ | ₹39.15 | ₹5,872.50 |
| 500+ | ₹24.32 | ₹12,160.00 |
| 3,000+ | ₹21.99 | ₹65,970.00 |
| 6,000+ | ₹20.59 | ₹1,23,540.00 |
5 × ₹53.13
₹265.65
excl. GST
₹313.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY7069ADC
₹265.65 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Function
- Boost
- Number of Outputs
- 1
- Frequency - Switching
- 1MHz
- Features
- Load disconnect
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.5V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3A
- Output Voltage
- 2.5V~5.5V
- Quiescent Current
- 32uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
SY7069 is a high efficiency, synchronous, step-up boost converter designed for one-cell Li-Ion or Lipolymer, or a two to three-cell alkaline Ni-Cd or NiMH battery powered applications. It can convert down to 2.5V input voltage and up to 5.5V output voltage. It adopts NMOS for the main switch and PMOS for the synchronous switch. SY7069 can disconnect the output from input during the shutdown mode. When input voltage exceeds the regulated output voltage, SY7069 enters bypass mode automatically.
Applications
- All Single Cell Li or Dual Cell Battery Operated Products as MP-3 Player, PDAs, and Other Portable Equipment.
Key features
- 2.5V minimum input voltage
- Adjustable output voltage from 2.5V to 5.5V
- Min 3A valley current limit
- Capable for seamless transition between boost and bypass mode
- Load disconnect during shutdown
- Low RDS(ON) (main switch/synchronous switch) at 5.0V output: 50mΩ/90mΩ
- Output OVP protection
- Compact package
- TSOT23-6 package
