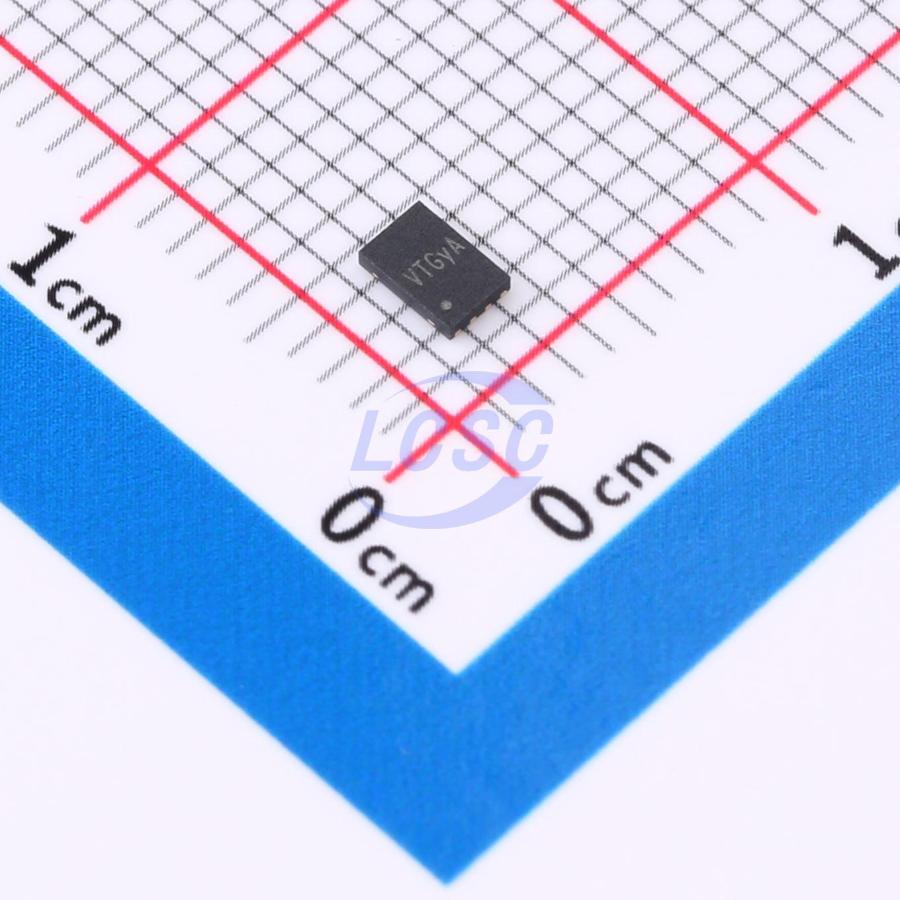

SilergyDatasheet (PDF)
SY7088DGC
1MHz Boost Adjustable 2.5V~5.5V 3A DFN-8-EP(2x3) Voltage Regulators - DC DC Switching Regulators
DFN-8-EP(2x3)RoHSActive
High Efficiency Synchronous Boost Regulator
- Manufacturer
- Silergy
- Manufacturer part #
- SY7088DGC
- Store part #
- C178240
- Package / case
- DFN-8-EP(2x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28,645 in stock
#C178240
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹52.43 | ₹262.15 |
| 50+ | ₹40.70 | ₹2,035.00 |
| 150+ | ₹35.68 | ₹5,352.00 |
| 500+ | ₹29.37 | ₹14,685.00 |
| 3,000+ | ₹26.58 | ₹79,740.00 |
| 6,000+ | ₹24.90 | ₹1,49,400.00 |
5 × ₹52.43
₹262.15
excl. GST
₹309.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY7088DGC
₹262.15 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 1MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Load disconnect;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.3V~5.25V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 2.5V~5.5V
- Output Current
- 3A
- Quiescent Current
- 2uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
SY7088 is a high efficiency synchronous boost regulator that converts up to 5.5V output voltage. It adopts NMOS for the main switch and PMOS for the synchronous switch. It can disconnect the output from input during the shutdown mode.
Applications
- All Single Cell Li or Dual Cell Battery Operated Products as MP - 3 Player, PDAs, and Other Portable Equipment.
Key features
- 2.3 - 5.0V input voltage range
- Adjustable output voltage from 2.5V to 5.5V
- Pseudo - constant frequency: 1MHz
- 3A peak current limit
- Input under voltage lockout
- Load disconnect during shutdown
- Output over voltage protection
- Low RDS(ON) (main switch/synchronous switch) at 5.0V output: 70/100mohm
- Compact package: DFN2x3 - 8
