SilergyDatasheet (PDF)

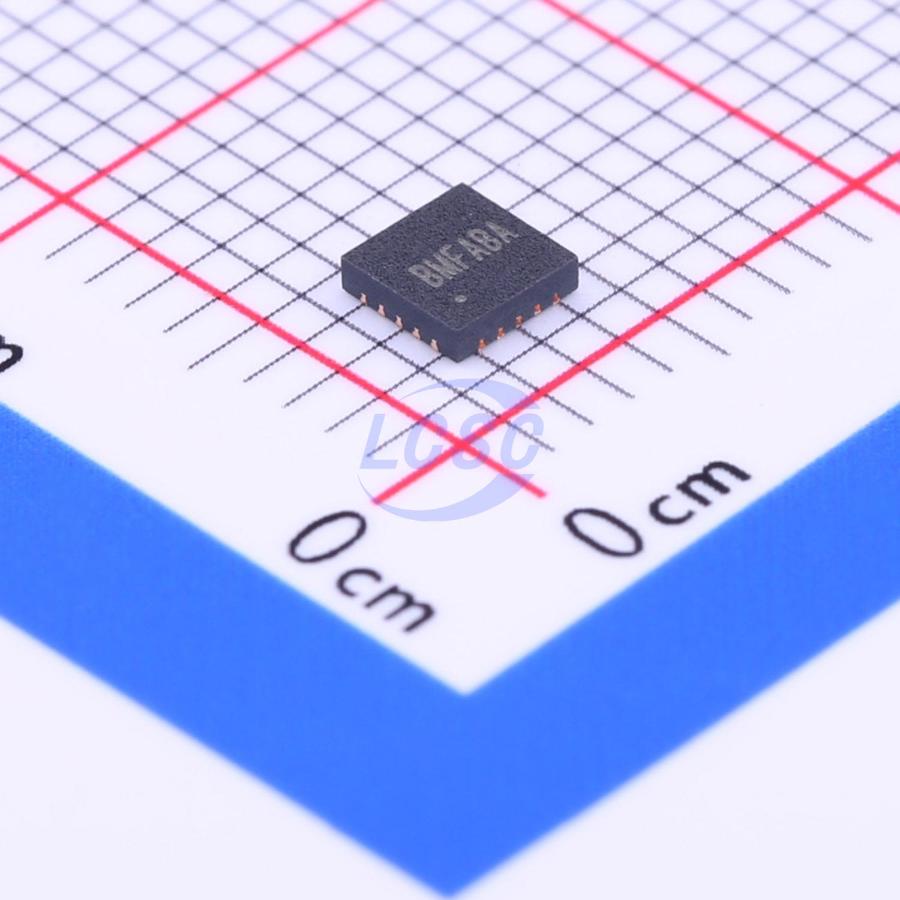

SY7120RAC
Boost Switching Regulator IC Adjustable 1 Output QFN-20-EP(3x3)
QFN-20-EP(3x3)RoHSActive
High Efficiency, 16V, 10A Synchronous Step Up Regulator
- Manufacturer
- Silergy
- Manufacturer part #
- SY7120RAC
- Store part #
- C207631
- Package / case
- QFN-20-EP(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,336 in stock
#C207631
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹125.51 | ₹125.51 |
| 10+ | ₹100.07 | ₹1,000.70 |
| 30+ | ₹87.24 | ₹2,617.20 |
| 100+ | ₹74.41 | ₹7,441.00 |
| 500+ | ₹66.79 | ₹33,395.00 |
| 1,000+ | ₹62.87 | ₹62,870.00 |
1 × ₹125.51
₹125.51
excl. GST
₹148.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SY7120RAC
₹125.51 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 300kHz~2MHz;400kHz~600kHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Adjustable current limiting;Cycle-by-cycle current limiting;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.8V~16V
- Switch tube (built-in/external)
- Built-in
- Quiescent Current
- 200uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.06 g
Overview
Applications
- Power Bank
- High power AP
- E-Cigarette
- Bluetooth Speaker
Key features
- SY7120 develops a high efficiency, high power density synchronous Boost regulator.
- The device adopts adaptive constant OFF time and current mode control.
- The integrated low RDS(ON) switches minimize the conduction loss.
- SY7120 provides selectable PFM/PWM light load operation mode.
- The device features cycle by cycle peak current limit.
- Low output voltage ripple and small external inductor and capacitor size are achieved with programmable pseudo-constant frequency.
