Silergy

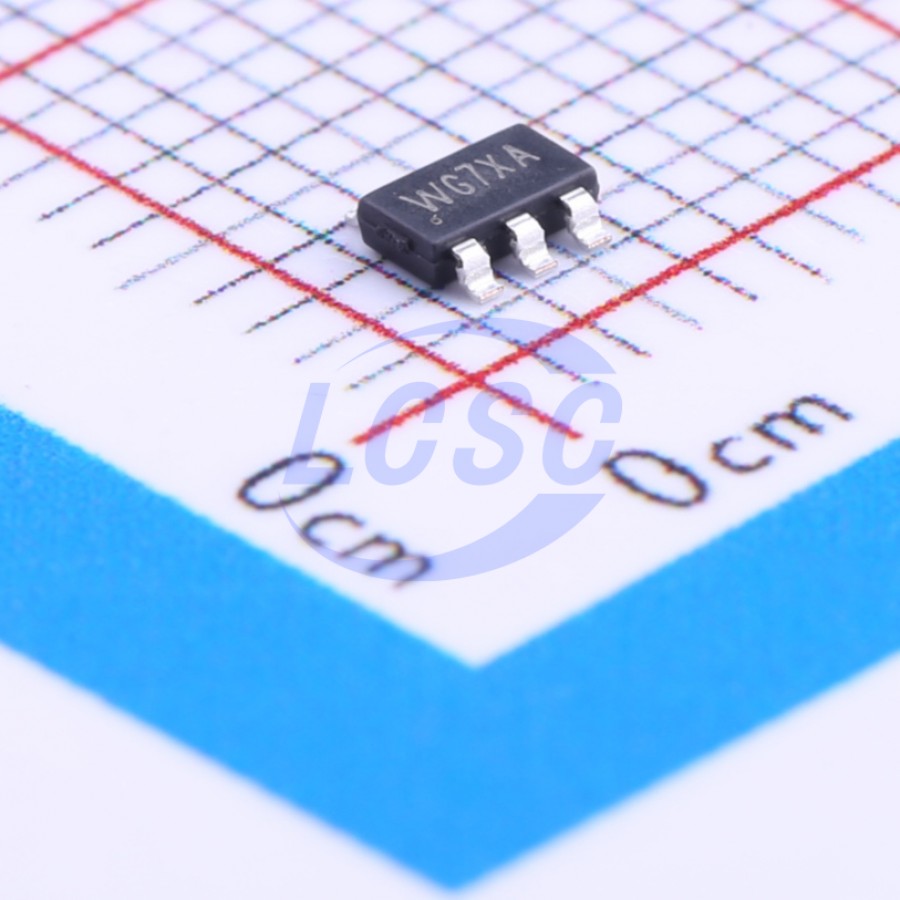

SY7301AADC

800kHz~1.2MHz 1 Boost DC-DC 2.8V~40V TSOT-23-6 LED Drivers ICs

TSOT-23-6RoHSActive

40V High Current Boost LED Driver

Manufacturer: Silergy
Manufacturer part #: SY7301AADC
Store part #: C160791
Package / case: TSOT-23-6
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

16,150 in stock

#C160791

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹40.60	₹203.00
50+	₹31.47	₹1,573.50
150+	₹27.57	₹4,135.50
500+	₹22.69	₹11,345.00
3,000+	₹20.51	₹61,530.00
6,000+	₹19.21	₹1,15,260.00

Quantity (min 5, multiples of 5)

5 × ₹40.60

₹203.00

excl. GST

₹239.54 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SY7301AADC

₹203.00 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Over Voltage Protection;Built-in soft-start;LED open-circuit protection;Over-Temperature Protection (OTP)
Frequency - Switching: 800kHz~1.2MHz
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+125℃
Number of Channels: 1
Topology: Boost
Type: DC-DC
Voltage - Input(DC): 2.8V~40V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.04 g

Overview

SY7301A develops a step-up DC/DC converter that delivers an accurate constant current for driving LEDs. Operating at a fixed switching frequency of 1MHz allows the device to be used with small value external ceramic capacitors and inductor. LEDs connected in series are driven with a regulated current set by the external resistor. The SY7301A is ideal for driving up to ten white LEDs in series or up to 40V.
