SilergyDatasheet (PDF)

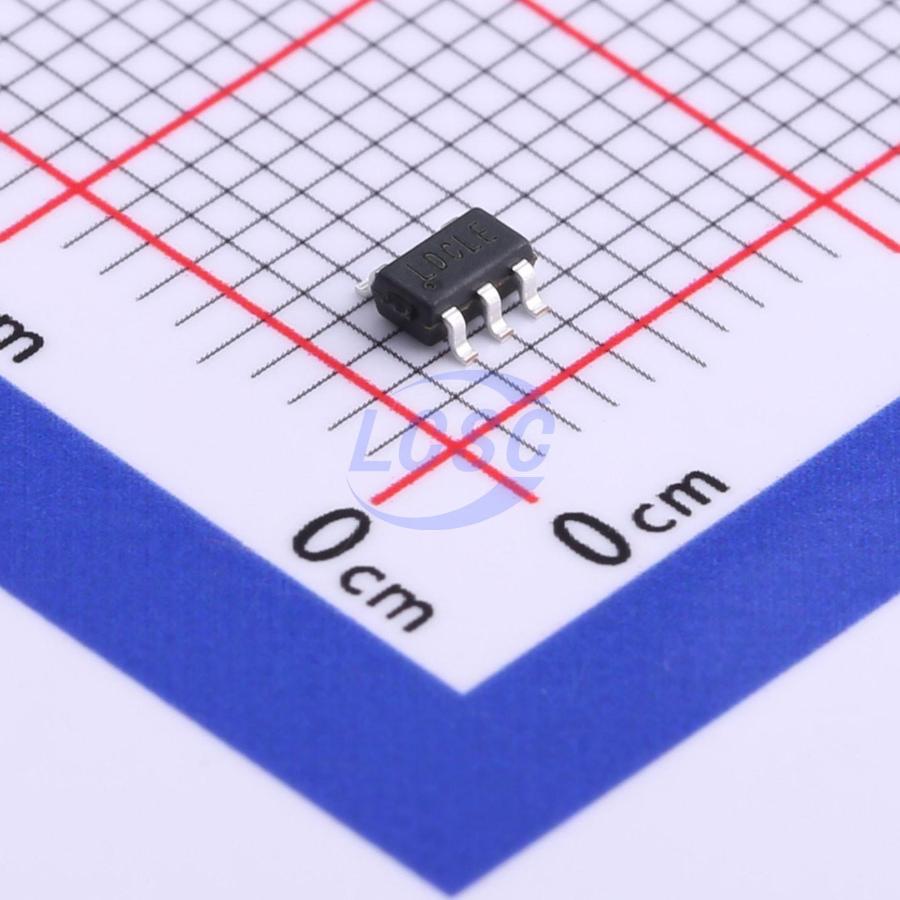

SY8088AAC
1.5MHz Step-down type Adjustable 1A SOT-23-5 Voltage Regulators - DC DC Switching Regulators
SOT-23-5RoHSActive
1.5MHz 1A Synchronous Step Down Regulator
- Manufacturer
- Silergy
- Manufacturer part #
- SY8088AAC
- Store part #
- C79313
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,16,100 in stock
#C79313
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.91 | ₹64.55 |
| 50+ | ₹10.19 | ₹509.50 |
| 150+ | ₹8.78 | ₹1,317.00 |
| 500+ | ₹7.62 | ₹3,810.00 |
| 3,000+ | ₹7.22 | ₹21,660.00 |
| 6,000+ | ₹6.95 | ₹41,700.00 |
5 × ₹12.91
₹64.55
excl. GST
₹76.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY8088AAC
₹64.55 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA);-40℃~+125℃@(TJ)
- Frequency - Switching
- 1.5MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Hiccup current limiting;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.5V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1A
- Quiescent Current
- 40uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.046 g
Overview
SY8088 is a high efficiency 1.5MHz synchronous step down DC/DC regulator IC capable of delivering up to 1A output current. It can operate over a wide input voltage range from 2.5V to 5.5V and integrate main switch and synchronous switch with very low RDS (ON) to minimize the conduction loss.
Applications
- Portable Navigation Device
- Set Top Box
- USB Dongle
- Media Player
- Smart phone
Key features
- Low RDS(ON) for internal switches (top/bottom) 260mΩ/170mΩ
- 2.5~5.5V input voltage range
- 40μA typical quiescent current
- High light load efficiency
- High switching frequency 1.5MHz minimizes the external components
- Internal soft-start limits the inrush current
- 100% dropout operation
- RoHS Compliant and Halogen Free
- Compact package: SOT23-5
