SilergyDatasheet (PDF)

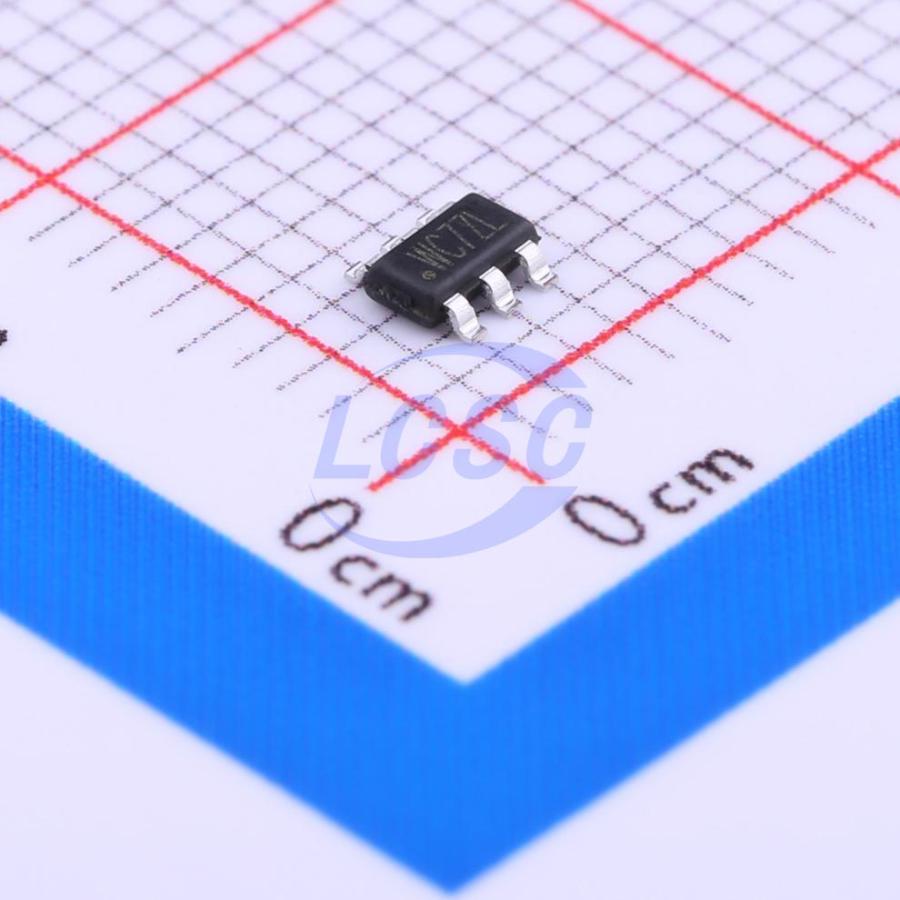

SY8113BADC
500kHz Step-down type Adjustable 3A TSOT-23-6 Voltage Regulators - DC DC Switching Regulators
TSOT-23-6RoHSActive
High Efficiency 500kHz 3A 18V Input Synchronous Step Down Regulator
- Manufacturer
- Silergy
- Manufacturer part #
- SY8113BADC
- Store part #
- C78989
- Package / case
- TSOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19,640 in stock
#C78989
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.74 | ₹158.70 |
| 50+ | ₹25.18 | ₹1,259.00 |
| 150+ | ₹21.96 | ₹3,294.00 |
| 500+ | ₹19.10 | ₹9,550.00 |
| 3,000+ | ₹15.94 | ₹47,820.00 |
| 6,000+ | ₹15.47 | ₹92,820.00 |
5 × ₹31.74
₹158.70
excl. GST
₹187.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY8113BADC
₹158.70 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 500kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~18V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3A
- Quiescent Current
- 100uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
Overview
The SY8113B is a high efficiency 500kHz synchronous step-down DC-DC converter capable of delivering 3A current. The SY8113B operates over a wide input voltage range from 4.5V to 18V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. Low output voltage ripple and small external inductor and capacitor sizes are achieved with 500 kHz switching frequency. It adopts the instant PWM architecture to achieve fast transient responses for high step down applications
Applications
- Set Top Box
- Portable
- Access Point Router
- DSL Modem
- LCD TV
Key features
- low RDS(ON) for internal switches (top/bottom): 80mΩ/40mΩ
- 4.5 - 18V input voltage range
- 3A output current capability
- 500 kHz switching frequency
- Instant PWM architecture to achieve fast transient responses. Cycle-by-cycle peak current limitation
- Internal softstart limits the inrush current
- ± 1.5% 0.6V reference
- TSOT23 - 6 package
