SilergyDatasheet (PDF)

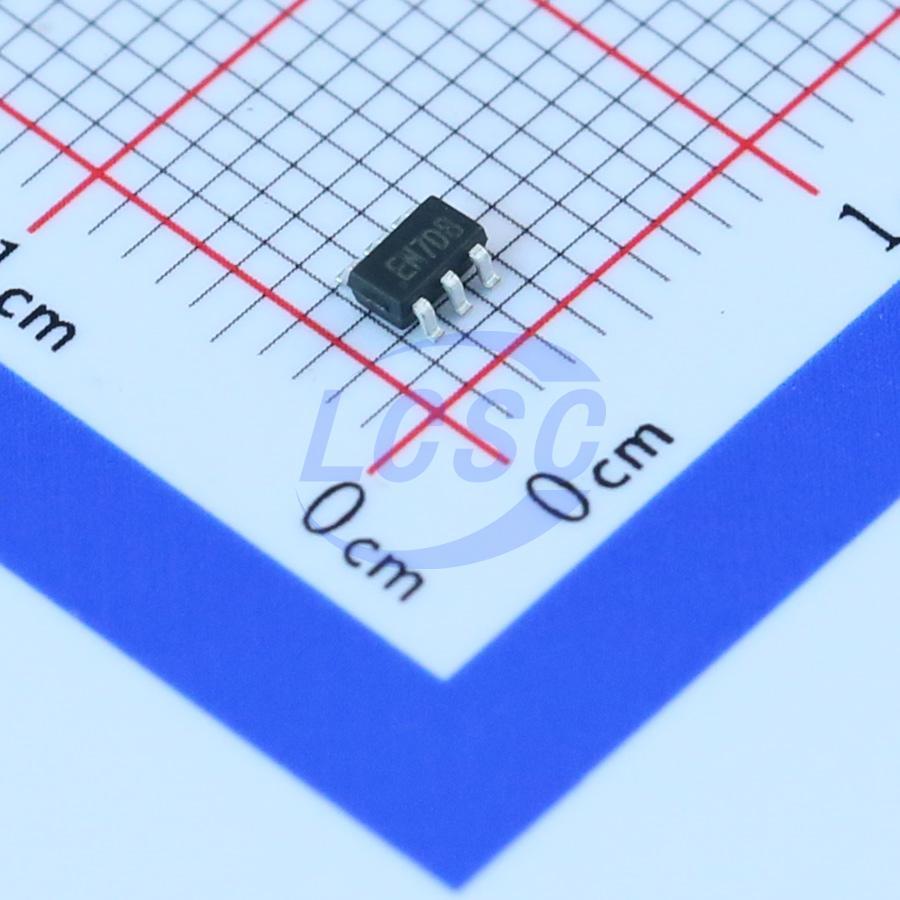

SY8201ABC
500kHz Step-down type Adjustable 1A SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
High Efficiency Fast Response, 1A, 27V Input Synchronous Step Down Regulator
- Manufacturer
- Silergy
- Manufacturer part #
- SY8201ABC
- Store part #
- C108052
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,440 in stock
#C108052
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.12 | ₹95.60 |
| 50+ | ₹18.67 | ₹933.50 |
| 150+ | ₹18.36 | ₹2,754.00 |
| 500+ | ₹18.06 | ₹9,030.00 |
5 × ₹19.12
₹95.60
excl. GST
₹112.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY8201ABC
₹95.60 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 500kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~27V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1A
- Quiescent Current
- 400uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.049 g
Overview
SY8201 develops high efficiency synchronous stepdown DC-DC converter capable of delivering 1A. SY8201 operates over a wide input voltage range from 4.5V to 27V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. SY8201 adopts the instant PWM architecture to achieve fast transient responses for high step down applications and high efficiency at light loads. In addition, it operates at pseudo-constant frequency of 500 kHz under heavy load conditions to minimize the size of inductor and capacitor.
Applications
- Set Top Box
- Portable TV
- Access Point Router
- DSL Modem
- LCD TV
Key features
- Low RDS(ON) for internal switches (top/bottom): 350/150 mΩ
- 4.5 - 27V input voltage range
- Instant PWM architecture to achieve fast transient responses
- Internal softstart limits the inrush current
- 2% 0.6V reference
- RoHS Compliant and Halogen Free
- Compact package: SOT23-6
