SilergyDatasheet (PDF)

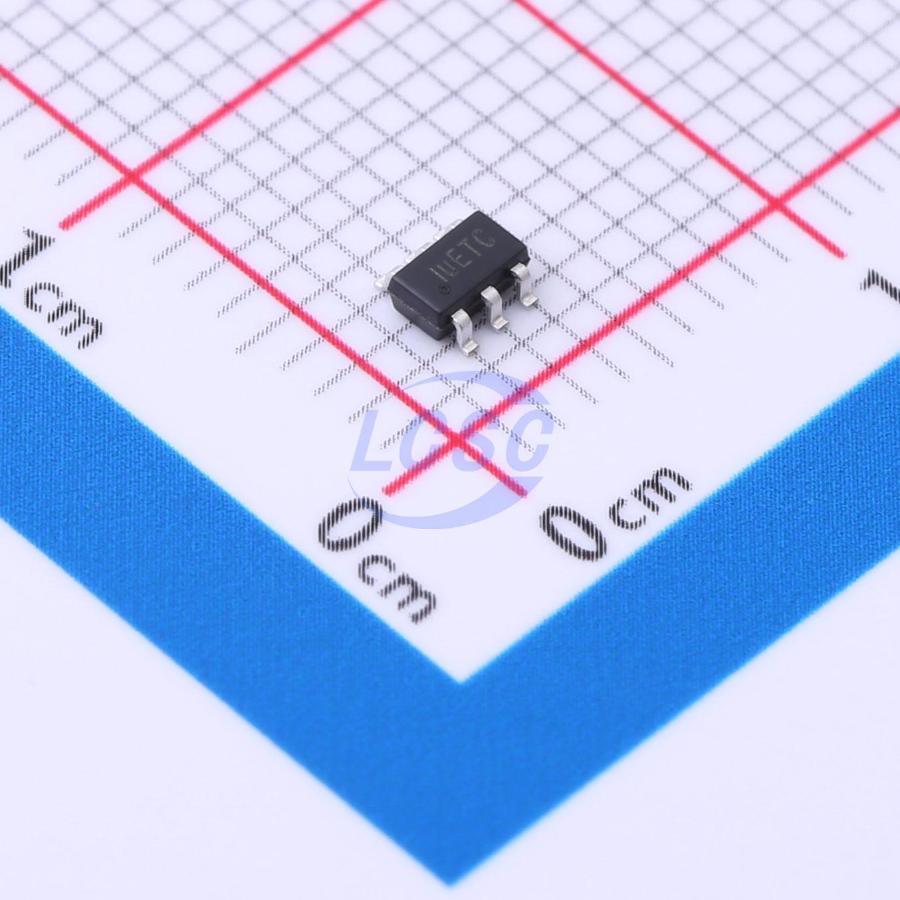

SY8301ABC
1.6MHz~2.4MHz Step-down type Adjustable 1A SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
High Efficiency 1A 40V Input Synchronous Step Down Regulator
- Manufacturer
- Silergy
- Manufacturer part #
- SY8301ABC
- Store part #
- C2927130
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30,400 in stock
#C2927130
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.90 | ₹159.50 |
| 50+ | ₹24.59 | ₹1,229.50 |
| 150+ | ₹21.04 | ₹3,156.00 |
| 500+ | ₹17.85 | ₹8,925.00 |
| 3,000+ | ₹16.97 | ₹50,910.00 |
| 6,000+ | ₹16.46 | ₹98,760.00 |
5 × ₹31.90
₹159.50
excl. GST
₹188.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY8301ABC
₹159.50 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 1.6MHz~2.4MHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Hiccup current limiting;Light load efficient mode
- Topology
- Buck
- Output Type
- Adjustable
- Operating Voltage
- 4.5V~40V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1A
- Quiescent Current
- 22uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
The SY8301 develops a high efficiency synchronous step-down DC/DC converter capable of delivering 1A load current. The SY8301 operates over a wide input voltage range from 4.5V to 40V and integrates main switch and synchronous switch with low RDS(ON) to minimize the conduction loss. The SY8301 adopts peak current control scheme. The switching frequency is 2MHz. Low output voltage ripple and small external inductor and capacitor sizes are achieved with 2MHz switching frequency. The device also features ultra low quiescent operating to achieve high efficiency under light load. And the internal soft-start limits inrush current during power on.
Applications
- LCD-TV
- SetTop Box
- Notebook
- Storage
- High Power AP Router Networking
Key features
- Low RDS(ON) for Internal Switches (Top/Bottom): 380mΩ/180mΩ
- 4.5 - 40V Input Voltage Range
- 1A Output Current Capability
- 2MHz Fixed Switching Frequency
- 0.8V ± 1.0% Reference Voltage
- Low Quiescent Current
- Internal Soft-start Limits the Inrush Current
- Hic-cup Mode Output Short Circuit Protection
- Thermal Shutdown and Auto Recovery
- Compact Package: SOT23-6
