SilergyDatasheet (PDF)

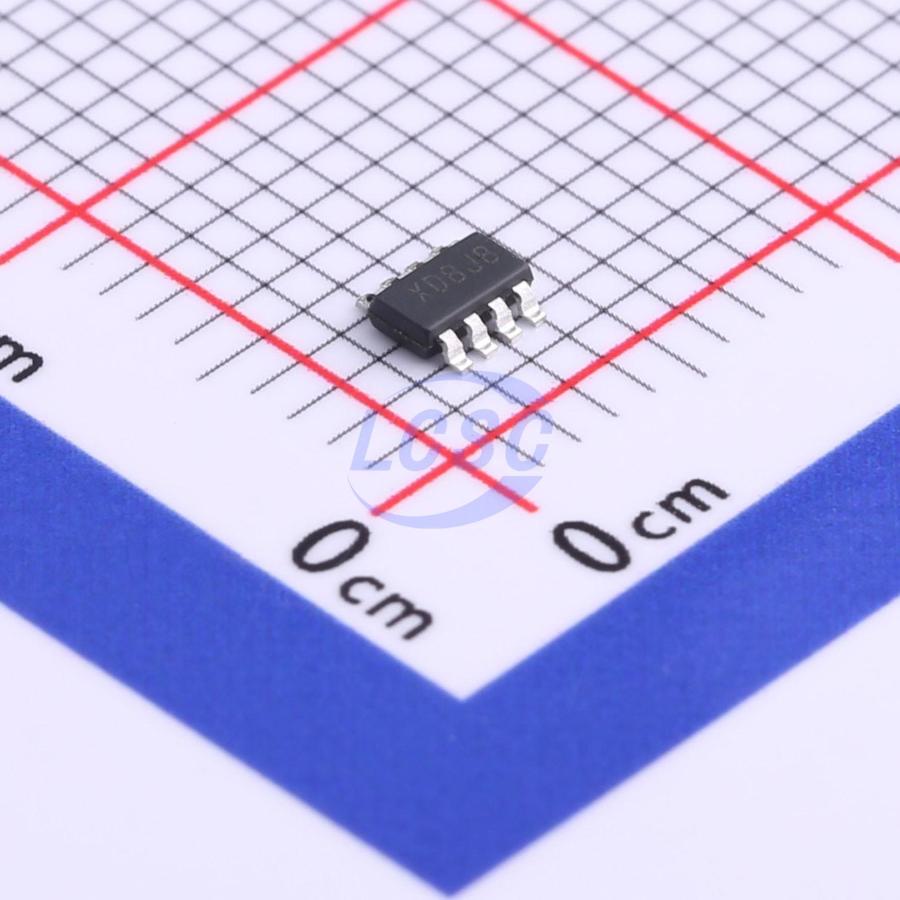

SY8303AIC
500kHz~2.5MHz Step-down type Adjustable 3A TSOT-23-8 Voltage Regulators - DC DC Switching Regulators
PopularTSOT-23-8RoHSActive
High Efficiency Fast Response, 3A, 40V Input Synchronous Step Down Regulator
- Manufacturer
- Silergy
- Manufacturer part #
- SY8303AIC
- Store part #
- C97054
- Package / case
- TSOT-23-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
57,203 in stock
#C97054
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹92.64 | ₹92.64 |
| 10+ | ₹78.07 | ₹780.70 |
| 30+ | ₹67.63 | ₹2,028.90 |
| 100+ | ₹59.15 | ₹5,915.00 |
| 500+ | ₹54.15 | ₹27,075.00 |
| 1,000+ | ₹52.40 | ₹52,400.00 |
1 × ₹92.64
₹92.64
excl. GST
₹109.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY8303AIC
₹92.64 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+105℃
- Frequency - Switching
- 500kHz~2.5MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~40V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3A
- Quiescent Current
- 18uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.046 g
Overview
The SY8303 develops a high efficiency synchronous step-down DC-DC converter capable of delivering 3A load current. The SY8303 operates over a wide input voltage range from 4.5V to 40V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. The SY8303 adopts peak current control scheme. The switching frequency is adjustable from 500kHz to 2.5MHz using an external resistor. The device also features ultra low quiescent operating to achieve high efficiency under light load. And the internal soft-start limits inrush current during power on.
Applications
- LCD-TV
- SetTop Box
- Notebook
- Storage
- High Power AP Router
- Networking
Key features
- Low RDS(ON) for internal switches (top/bottom): 110/70 mΩ
- 4.5 - 40V input voltage range
- Internal compensation
- Internal 1ms soft-start limits the inrush current
- Adjustable switching frequency range: 500kHz to 2.5MHz
- 3A output current capability
- 1.5% 0.6V reference
- Low quiescent current
- Cycle-by-cycle peak current limitation
- Short circuit protection
- Thermal shutdown and auto recovery
- RoHS Compliant and Halogen Free
- Compact package: TSOT23-8
