SilergyDatasheet (PDF)

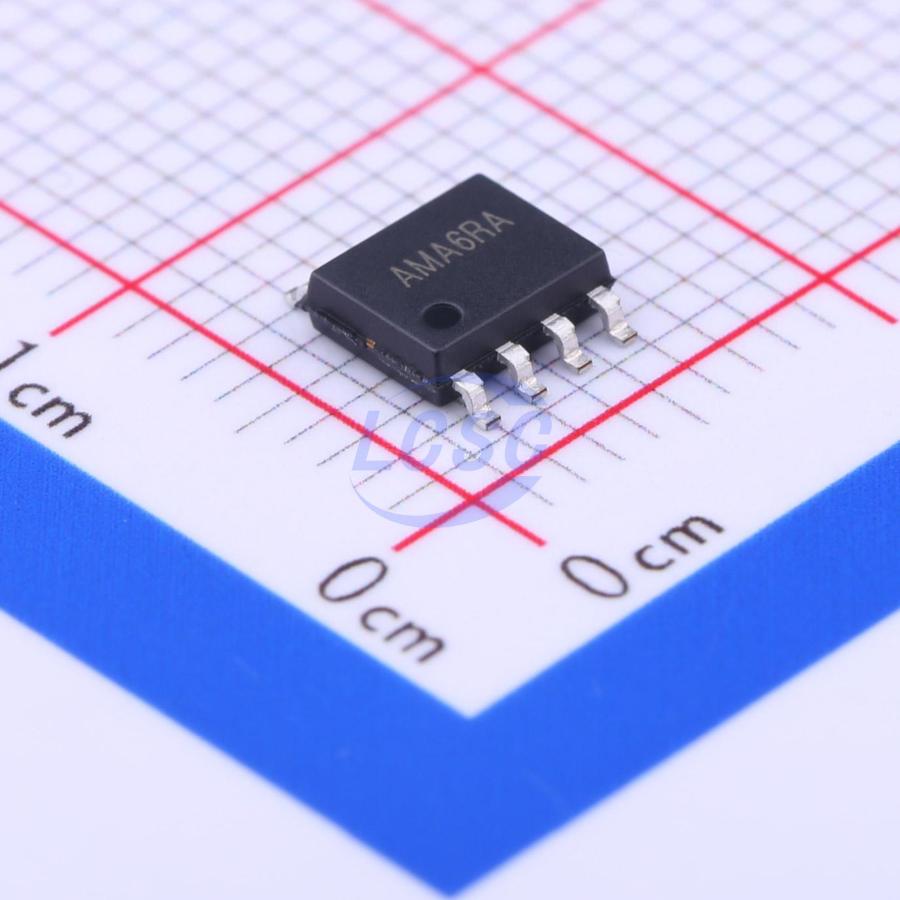

SY8501FCC
Step-down type 200kHz~1MHz Adjustable 1A SO-8-EP Voltage Regulators - DC DC Switching Regulators
SO-8-EPRoHSActive
High Efficiency 500kHz, 1.0A 100V Input Synchronous Step Down Regulator
- Manufacturer
- Silergy
- Manufacturer part #
- SY8501FCC
- Store part #
- C365714
- Package / case
- SO-8-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
751 in stock
#C365714
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹193.59 | ₹193.59 |
| 10+ | ₹158.40 | ₹1,584.00 |
| 30+ | ₹139.29 | ₹4,178.70 |
| 100+ | ₹117.55 | ₹11,755.00 |
| 500+ | ₹107.77 | ₹53,885.00 |
| 1,000+ | ₹103.43 | ₹1,03,430.00 |
1 × ₹193.59
₹193.59
excl. GST
₹228.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SY8501FCC
₹193.59 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA);-40℃~+125℃@(TJ)
- Function
- Step-down type
- Frequency - Switching
- 200kHz~1MHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Built-in LDO regulator
- Topology
- Buck
- Output Type
- Adjustable
- Operating Voltage
- 7V~100V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1A
- Quiescent Current
- 400uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.13 g
Overview
SY8501 develops high efficiency synchronous stepdown DC-DC converter capable of delivering 1.0A current. The SY8501 operates over a wide input voltage range from 7V to 100V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. The device adopts the instant PWM architecture to achieve fast transient responses for high step down applications.
Applications
- Non - Isolated Telecommunication Buck Regulator
- Secondary High Voltage Post Regulator
- Automotive Systems
Key features
- Low RDS(ON) for internal switches (top/bottom): 500mΩ/240mΩ
- 7 - 100V input voltage range
- 1A output current capability
- Adjustable switching frequency
- Instant PWM architecture to achieve fast transient responses
- 2ms internal softstart limits the inrush current
- Precise +/-2% 1.2V reference
- RoHS Compliant and Halogen Free
- Compact SO8E package
