SilergyDatasheet (PDF)

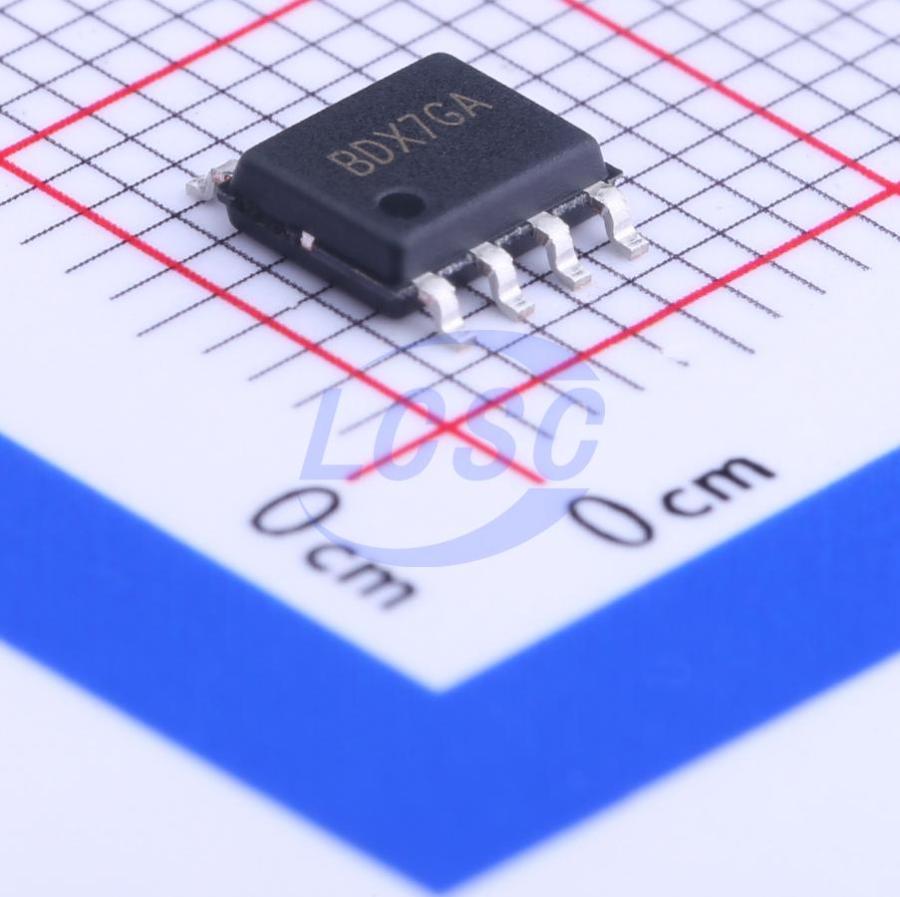

SY8502FCC
340kHz Step-down type Adjustable 1.2A SOIC-8-EP Voltage Regulators - DC DC Switching Regulators
SOIC-8-EPRoHSActive
High Efficiency 1.2A Continuous 85V Input Synchronous Step Down Regulator
- Manufacturer
- Silergy
- Manufacturer part #
- SY8502FCC
- Store part #
- C87752
- Package / case
- SOIC-8-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,656 in stock
#C87752
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹148.52 | ₹148.52 |
| 10+ | ₹122.95 | ₹1,229.50 |
| 30+ | ₹108.63 | ₹3,258.90 |
| 100+ | ₹92.81 | ₹9,281.00 |
| 500+ | ₹85.65 | ₹42,825.00 |
| 1,000+ | ₹82.40 | ₹82,400.00 |
1 × ₹148.52
₹148.52
excl. GST
₹175.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SY8502FCC
₹148.52 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 340kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Built-in LDO regulator;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 7V~85V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.2A
- Quiescent Current
- 400uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.303 g
Overview
SY8502 develops high efficiency synchronous stepdown DC-DC converter capable of delivering 1.2A continuous, 1.8A peak current. The SY8502 operates over a wide input voltage range from 7V to 85V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. The device adopts the instant PWM architecture to achieve fast transient responses for high step down applications.
Applications
- Non-Isolated Telecommunication Buck Regulator
- Secondary High Voltage Post Regulator
- Automotive Systems
Key features
- low RDS(ON) for internal switches (top/bottom): 500mΩ/240mΩ
- 7 - 85V input voltage range
- 1.2A continuous, 1.8A peak output current capability
- Adjustable switching frequency
- Programmable Switching Frequency Range 200 ~ 500 kHz
- 2ms internal softstart limits the inrush current
- Precious +/- 2% 1.2V reference
- RoHS Compliant and Halogen Free
- Compact SO8E package
