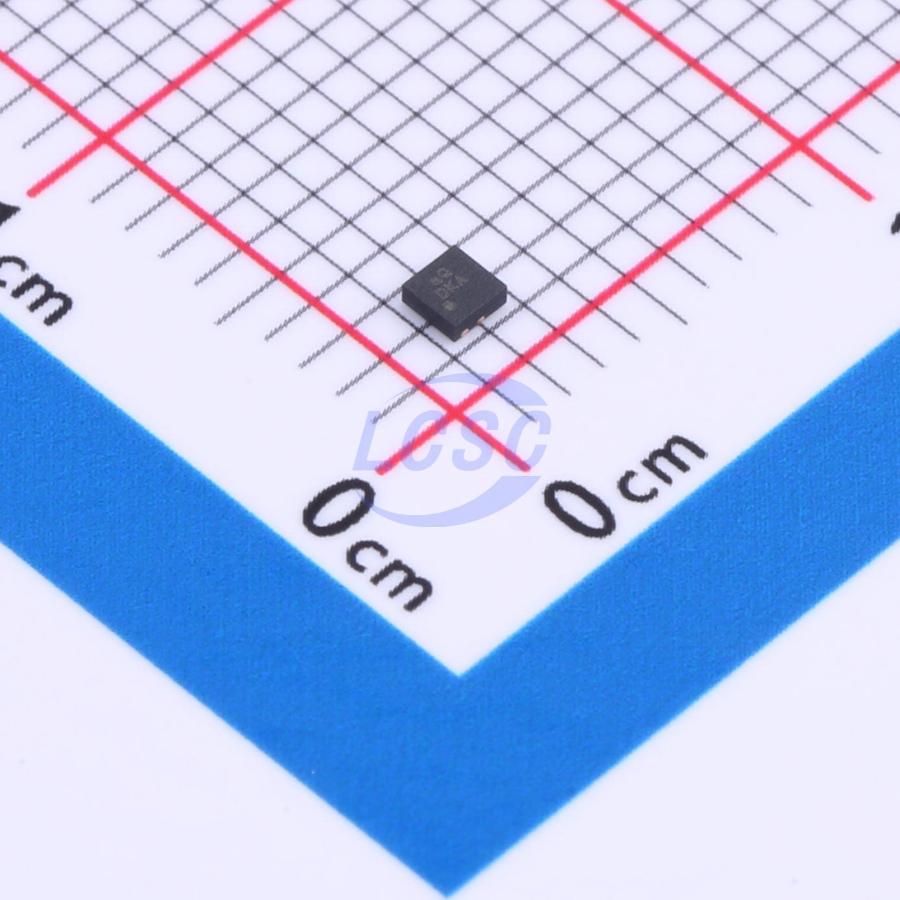

SilergyDatasheet (PDF)
SY8842QWC
2MHz Step-down type Adjustable 1.5A QFN-7(1.5x1.5) Voltage Regulators - DC DC Switching Regulators
QFN-7(1.5x1.5)RoHSActive
High Efficiency 2.0MHz, 1.5A Synchronous Step Down Regulator
- Manufacturer
- Silergy
- Manufacturer part #
- SY8842QWC
- Store part #
- C3018652
- Package / case
- QFN-7(1.5x1.5)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,970 in stock
#C3018652
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.41 | ₹127.05 |
| 50+ | ₹20.04 | ₹1,002.00 |
| 150+ | ₹17.74 | ₹2,661.00 |
| 500+ | ₹14.86 | ₹7,430.00 |
| 3,000+ | ₹13.59 | ₹40,770.00 |
| 6,000+ | ₹12.81 | ₹76,860.00 |
5 × ₹25.41
₹127.05
excl. GST
₹149.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY8842QWC
₹127.05 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 2MHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Operating status indication;Output discharge
- Topology
- Buck
- Output Type
- Adjustable
- Operating Voltage
- 2.6V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.5A
- Quiescent Current
- 55uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
SY8842 is a high efficiency 2.0MHz synchronous step down DC/DC regulator capable of delivering up to 1.5A output currents. It can operate over a wide input voltage range from 2.6V to 5.5V and integrate main switch and synchronous switch with very low RDS (ON) to minimize the conduction loss. Low output voltage ripple, small external inductor and capacitor sizes are achieved with 2.0MHz switching frequency.
Applications
- Smart Phone
- Net PC
- Mini-notebook PC
- Access Point Router
Key features
- 2.6~5.5V Input Voltage Range
- 55μA Low Quiescent Current
- Ultra Fast Load Transient Speed
- Low RDS(ON) for Internal Switches (Top/Bottom) 180mΩ / 100mΩ
- High Switching Frequency 2.0MHz Minimizes the External Components
- Internal Soft-start Limits the Inrush Current
- Power Good Indicator
- Output Auto Discharge Function
- RoHS Compliant and Halogen Free
- Compact Package: QFN1.5×1.5-7
