JSMSEMI

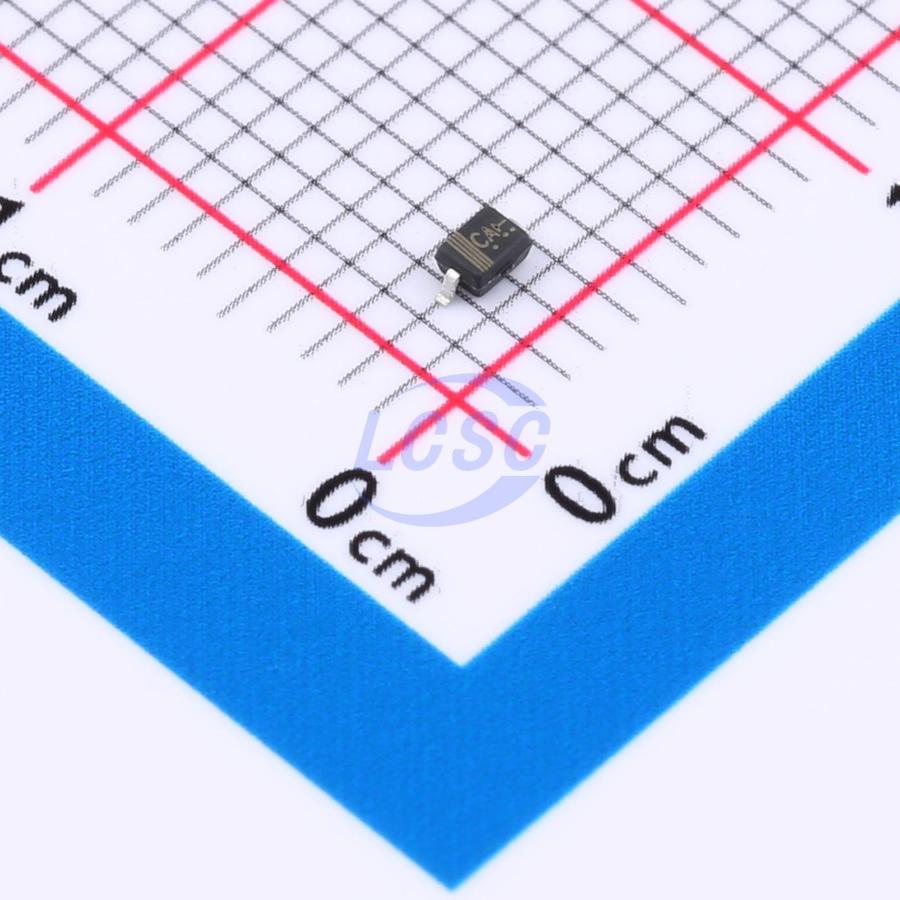

SYS01V05AMC

16VC Clamp ESD DIODE SOD-323

SOD-323ROHS CompliantActive

ESD DIODE 5VWM 16VC SOD-323

Manufacturer: JSMSEMI
Manufacturer part #: SYS01V05AMC
Store part #: C5356104
Package / case: SOD-323
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,460 in stock

#C5356104

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
20+	₹4.58	₹91.60
200+	₹3.52	₹704.00
600+	₹2.94	₹1,764.00
3,000+	₹2.71	₹8,130.00
9,000+	₹2.41	₹21,690.00
21,000+	₹2.24	₹47,040.00

Quantity (min 20, multiples of 20)

20 × ₹4.58

₹91.60

excl. GST

₹108.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SYS01V05AMC

₹91.60 for 20 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 16V
Peak Pulse Power Dissipation (Ppp): 128W@8/20us
Number of Channels: 1
Voltage - Breakdown: 5.6V
type: ESD
Reverse Leakage Current (Ir): 1uA
Reverse Stand-Off Voltage (Vrwm): 5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.024 g

Overview

The SYS01V05AMC is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. This device has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events),and EFT (electrical fast transients).
