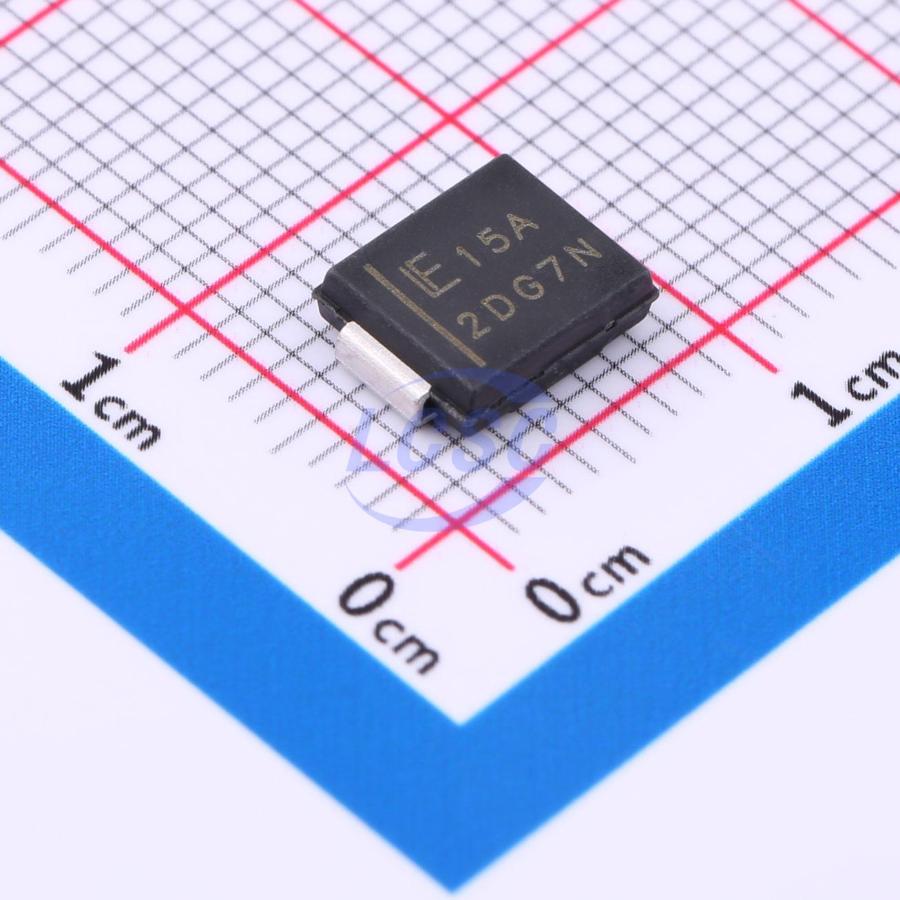

SZ1.5SMC15AT3G
21.2VC Clamp 71A Ipp TVS DIODE SMC
TVS DIODE 12.8VWM 21.2VC SMC
- Manufacturer
- Littelfuse
- Manufacturer part #
- SZ1.5SMC15AT3G
- Store part #
- C2649867
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C2649867
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹299.86 | ₹299.86 |
| 10+ | ₹263.65 | ₹2,636.50 |
| 30+ | ₹243.48 | ₹7,304.40 |
| 100+ | ₹220.94 | ₹22,094.00 |
| 500+ | ₹210.97 | ₹1,05,485.00 |
| 1,000+ | ₹206.41 | ₹2,06,410.00 |
1 × ₹299.86
₹299.86
excl. GST
₹353.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SZ1.5SMC15AT3G
₹299.86 for 1 + GST
Specifications
- Clamping Voltage
- 21.2V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 71A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 14.3V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 12.8V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.32 g
Overview
The SZ1.5SMC series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SZ1.5SMC series is supplied in the exclusive, cost-effective, highly reliable package and is ideally suited for use in communication systems, automotive, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial/consumer applications.
Applications
- communication systems
- automotive
- numerical controls
- process controls
- medical equipment
- business machines
- power supplies
- industrial/consumer applications
Key features
- Zener Transient Overvoltage Suppressors
- Working Peak Reverse Voltage Range - 5.8 V to 77.8 V
- Standard Zener Breakdown Voltage Range - 6.45 V to 95.5 V
- Peak Power - 1500 W @ 1 ms
- ESD Rating of Class 3 (>) 16 kV per Human Body Model
- Maximum Clamp Voltage @ Peak Pulse Current
- Low Leakage < 5 µA Above 10 V
- Recognized to UL 497B as an Isolated Loop Circuit Protector
- Maximum Temperature Coefficient Specified
- Response Time is Typically < 1 ns
- Pb-Free Packages are Available
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC - Q101 Qualified and PPAP Capable
