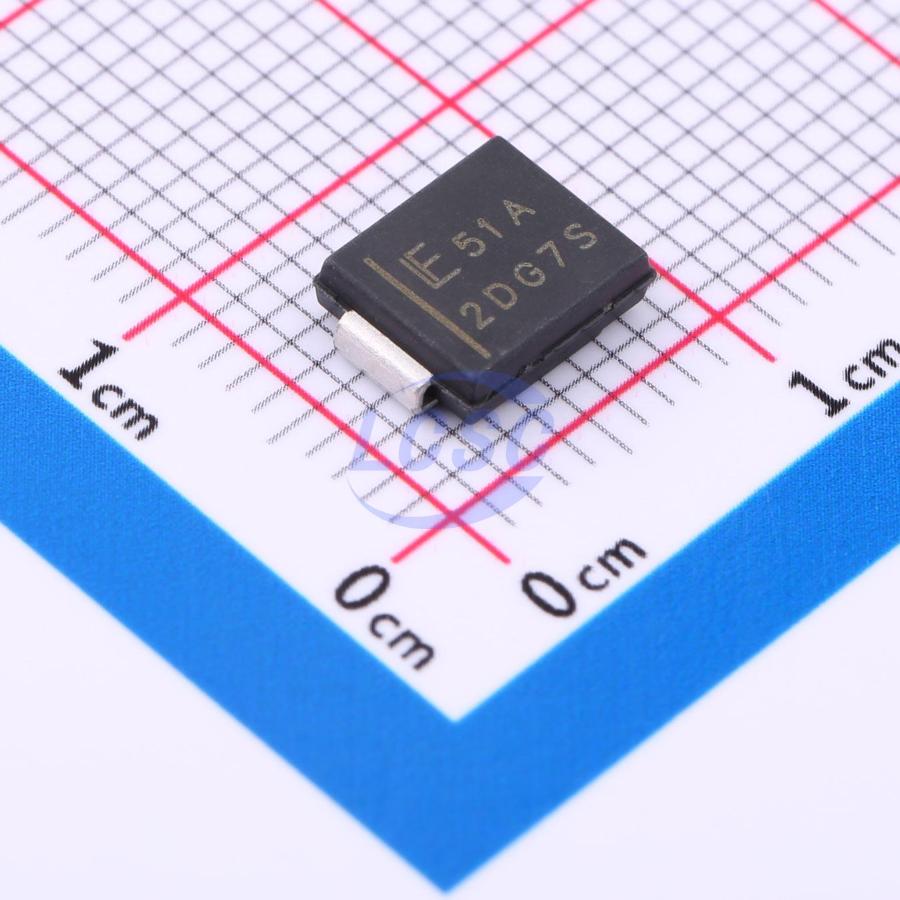

SZ1.5SMC51AT3G
70.1VC Clamp 21.4A Ipp TVS DIODE SMC
TVS DIODE 43.6VWM 70.1VC SMC
- Manufacturer
- Littelfuse
- Manufacturer part #
- SZ1.5SMC51AT3G
- Store part #
- C1974093
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
99 in stock
#C1974093
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹99.53 | ₹99.53 |
| 10+ | ₹80.62 | ₹806.20 |
| 30+ | ₹71.28 | ₹2,138.40 |
| 100+ | ₹61.93 | ₹6,193.00 |
| 500+ | ₹56.51 | ₹28,255.00 |
| 1,000+ | ₹53.67 | ₹53,670.00 |
1 × ₹99.53
₹99.53
excl. GST
₹117.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SZ1.5SMC51AT3G
₹99.53 for 1 + GST
Specifications
- Clamping Voltage
- 70.1V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 21.4A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 51V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 43.6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.34 g
Overview
The SZ1.5SMC series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SZ1.5SMC series is supplied in the exclusive, cost-effective, highly reliable package and is ideally suited for use in communication systems, automotive, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial/consumer applications.
Applications
- communication systems
- automotive
- numerical controls
- process controls
- medical equipment
- business machines
- power supplies
- industrial/consumer applications
Key features
- Zener Transient Overvoltage Suppressors
- Working Peak Reverse Voltage Range - 5.8 V to 77.8 V
- Standard Zener Breakdown Voltage Range - 6.45 V to 95.5 V
- Peak Power - 1500 W @ 1 ms
- ESD Rating of Class 3 (>) 16 kV per Human Body Model
- Maximum Clamp Voltage @ Peak Pulse Current
- Low Leakage < 5 µA Above 10 V
- Recognized to UL 497B as an Isolated Loop Circuit Protector
- Maximum Temperature Coefficient Specified
- Response Time is Typically < 1 ns
- Pb-Free Packages are Available
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC - Q101 Qualified and PPAP Capable
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMCJ43A#C53260913TECH PUBLIC · SMC | TECH PUBLIC | SMC | 4,505 | ₹13.36 · 4,505 in stock | View |
 | 1.5SMC51A/TR7#C522090Brightking · SMC(DO-214AB) | Brightking | SMC(DO-214AB) | 5 | ₹19.00 · 5 in stock | View |
 | 1.5SMC51A(MS)#C22365419MSKSEMI · SMC | MSKSEMI | SMC | 2,770 | ₹15.43 · 2,770 in stock | View |
 | SMCJ43A#C434872RUILON · DO-214AB(SMC) | RUILON | DO-214AB(SMC) | 35 | ₹30.98 · 35 in stock | View |
 | SMCJ43A#C5344651Shikues · SMC | Shikues | SMC | 540 | ₹18.76 · 540 in stock | View |
