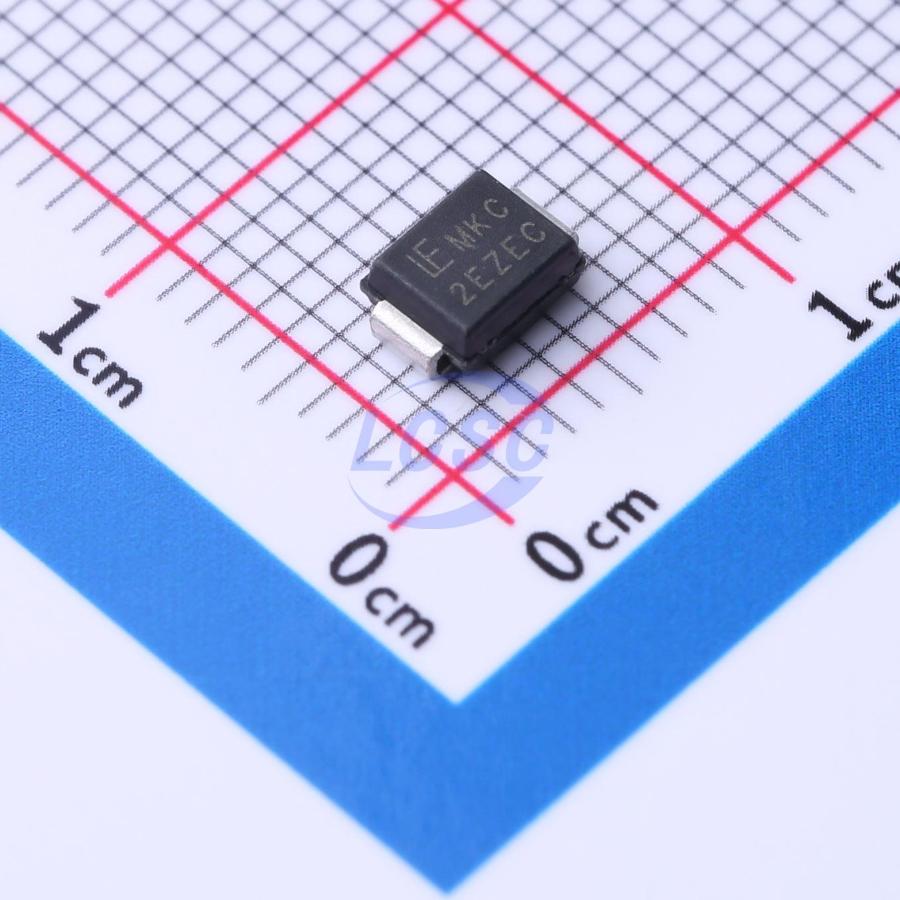

SZ1SMB30CAT3G
48.4VC Clamp 12.4A Ipp TVS DIODE SMB
TVS DIODE 30VWM 48.4VC SMB
- Manufacturer
- Littelfuse
- Manufacturer part #
- SZ1SMB30CAT3G
- Store part #
- C1976130
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
700 in stock
#C1976130
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.61 | ₹208.05 |
| 50+ | ₹33.17 | ₹1,658.50 |
| 150+ | ₹29.56 | ₹4,434.00 |
| 500+ | ₹24.04 | ₹12,020.00 |
| 2,500+ | ₹22.04 | ₹55,100.00 |
| 5,000+ | ₹20.82 | ₹1,04,100.00 |
5 × ₹41.61
₹208.05
excl. GST
₹245.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SZ1SMB30CAT3G
₹208.05 for 5 + GST
Specifications
- Clamping Voltage
- 48.4V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 12.4A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 36.8V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.23 g
Overview
The SZ1SMB series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping and high surge capability, as well as fast response time. The SZ1SMB series is supplied in the Littelfuse exclusive, cost-effective, highly reliable package and is ideally suited for use in communication systems, automotive, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial and consumer applications.
Applications
- communication systems
- automotive
- numerical controls
- process controls
- medical equipment
- business machines
- power supplies
- many other industrial and consumer applications
Key features
- Zener Transient Overvoltage Suppressors
- Working Peak Reverse Voltage Range - 5.0 V to 170 V for uni-directional, and 10 V to 75 V for bi-directional
- Standard Avalanche Breakdown Voltage Range - 6.4 V to 209 V for uni-directional, 11.1 V to 92.07 V for bi-directional
- Peak Power − 600 W @ 1.0 ms
- ESD Rating of Class 3 (> 16 kV) per Human Body Model
- Maximum Clamp Voltage @ Peak Pulse Current
- Low Leakage < 5.0 μA Above 10 V
- Intended for UL 497B Type Protection
- Response Time is Typically < 1.0 ns
- Pb-free means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/ JEDEC J-STD-609A.01)
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
