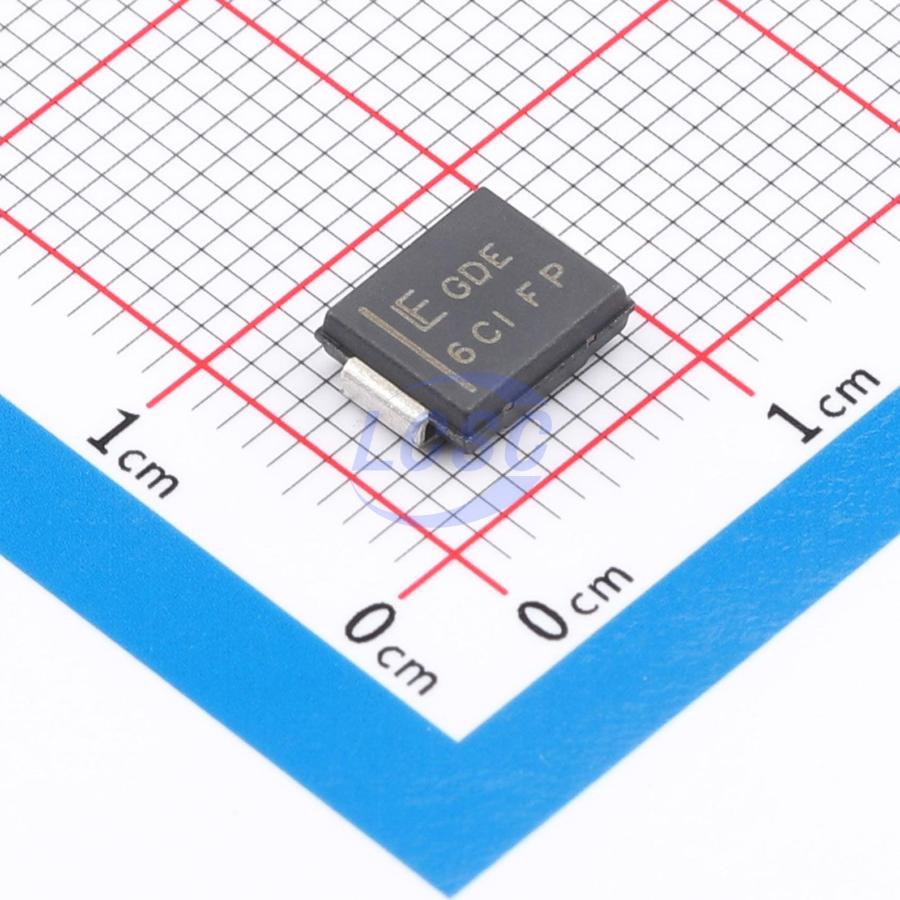

SZ1SMC5.0AT3G
9.2VC Clamp 163A Ipp TVS DIODE SMC
- Manufacturer
- Littelfuse
- Manufacturer part #
- SZ1SMC5.0AT3G
- Store part #
- C3707624
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C3707624
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹153.73 | ₹153.73 |
| 10+ | ₹151.13 | ₹1,511.30 |
| 30+ | ₹149.39 | ₹4,481.70 |
| 100+ | ₹147.66 | ₹14,766.00 |
1 × ₹153.73
₹153.73
excl. GST
₹181.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SZ1SMC5.0AT3G
₹153.73 for 1 + GST
Specifications
- Clamping Voltage
- 9.2V
- Operating Temperature
- -65℃~+175℃
- Peak Pulse Current (Ipp)
- 163A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW
- Number of Channels
- 1
- Voltage - Breakdown
- 6.4V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1mA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.34 g
Overview
The SZ1SMC series is designed to protect voltage-sensitive components from high-voltage, high-energy transients. They feature excellent clamping capability, high surge capacity, low Zener impedance, and fast response time. Packaged in the cost-effective and highly reliable DO-214AB, the SZ1SMC series is ideal for use in communication systems, automotive, CNC, process control, medical equipment, commercial machinery, power supplies, and many other industrial/consumer applications.
Applications
- Communication systems
- Automotive
- CNC
- Medical equipment
- Power supplies
Key features
- Zener transient overvoltage suppressor
- Working peak reverse voltage range: 5.0 V to 170 V
- Standard Zener breakdown voltage range: 6.4 V to 209 V
- Peak power: 1500 W at 1 ms
- Compliant with IEC 61000-4-2; ESD protection for data lines at 30 kV (air), 30 kV (contact)
- ESD Class 3 (> 16 kV) per human body model
- Maximum clamping voltage at peak pulse current
- Low leakage current < 5 μA above 10 V
- VBR@TJ = VBR@25°C × (1 + αT × (TJ - 25)) (αT: temperature coefficient)
- UL 497B certified as isolating loop circuit protector
- Maximum temperature coefficient specified
- Typical response time < 1 ns
- Available in lead-free packages
- For automotive and other applications requiring unique site and control change requirements, with SZ prefix; AEC-Q101 compliant with PPAP capability
