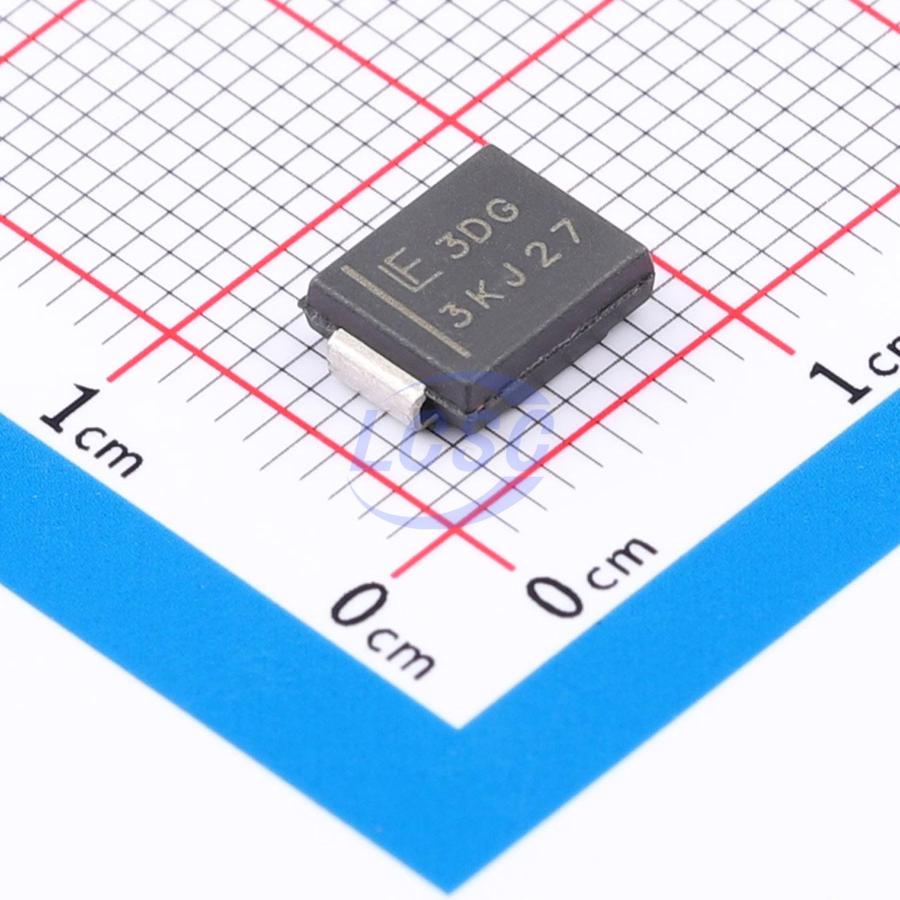

SZ3KASMC6.0AT3G
10.3V 291.3A 3kW 7.37V Unidirectional 6V SMC TVS Diodes
- Manufacturer
- Littelfuse
- Manufacturer part #
- SZ3KASMC6.0AT3G
- Store part #
- C20349959
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
75 in stock
#C20349959
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹199.19 | ₹199.19 |
| 10+ | ₹194.84 | ₹1,948.40 |
| 30+ | ₹192.01 | ₹5,760.30 |
| 100+ | ₹189.18 | ₹18,918.00 |
1 × ₹199.19
₹199.19
excl. GST
₹235.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SZ3KASMC6.0AT3G
₹199.19 for 1 + GST
Specifications
- Clamping Voltage
- 10.3V
- Operating Temperature
- -65℃~+175℃
- Peak Pulse Current (Ipp)
- 291.3A
- Peak Pulse Power Dissipation (Ppp)
- 3kW
- Number of Channels
- 1
- Voltage - Breakdown
- 7.37V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100uA
- Reverse Stand-Off Voltage (Vrwm)
- 6V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.345 g
Overview
The SZ3KASMC series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SZ3KASMC series is supplied in cost-effective, highly reliable DO-214AB package and it is ideal for use in automotive electronic applications.
Applications
- TVS devices are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in automotive application.
Key features
- Automotive grade, AEC-Q101 qualifed and PPAP capable
- Peak power - 3000 W @ 1 ms
- Working peak reverse voltage range - 5.0 V to 78 V for unidirectional
- Standard zener breakdown voltage range - 6.4 V to 95.8 V for uni-directional
- Compact design in DO-214AB package
- ESD protection of data lines in accordance with IEC 61000-4-2 30 kV (Air), 30 kV (Contact)
- ESD rating of class 3 (>16 kV) per human body model
- Zener transient overvoltage suppressors
- Excellent clamping capability
- Planar chip design with low leakage current performance
- Maximum temperature coeffcient specifed
- Response time is typically < 1 ns
- These components are Pb-free and are ROHS compliant
- UL recgonized as an isolated loop circuit protector to UL 497B
- UL recognized compound meeting fammability rating V-0
