onsemiDatasheet (PDF)
SZESD5B5.0ST5G
nan
SOD-523ROHS3 CompliantActive

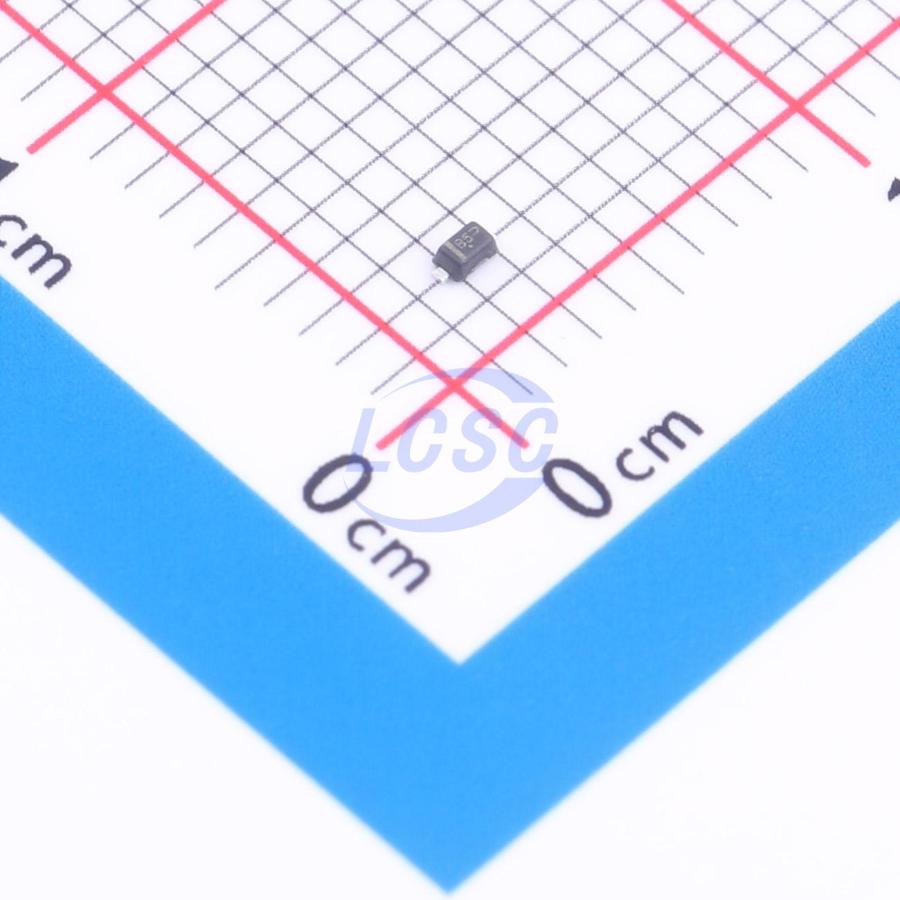

ESD DIODE 5VWM SOD-523
- Manufacturer
- onsemi
- Manufacturer part #
- SZESD5B5.0ST5G
- Store part #
- C896543
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
720 in stock
#C896543
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.75 | ₹153.75 |
| 50+ | ₹24.32 | ₹1,216.00 |
| 150+ | ₹21.55 | ₹3,232.50 |
| 500+ | ₹18.11 | ₹9,055.00 |
5 × ₹30.75
₹153.75
excl. GST
₹181.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
SZESD5B5.0ST5G
₹153.75 for 5 + GST
Specifications
- Peak Pulse Power Dissipation (Ppp)
- 50W
- Number of Channels
- 1
- Voltage - Breakdown
- 5.8V
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 5.9 g
Overview
The ESD5B Series is designed to protect voltage sensitive components from ESD. Excellent clamping capability, low leakage, and fast response time provide best in class protection on designs that are exposed to ESD. Because of its small size and bi−directional design, it is ideal for use in cellular phones, MP3 players, and portable applications that require audio line protection.
Applications
- cellular phones
- MP3 players
- portable applications that require audio line protection
Key features
- Low Capacitance 32 pF
- Low Clamping Voltage
- Small Body Outline Dimensions: nom 0.063"x0.032" (1.6x0.8 mm)
- Low Body Height: nom 0.024" (0.6 mm)
- Reverse Working (Stand−off) Voltage: 5.0 V
- Peak Power up to 50 W @ 8 x 20 μs Pulse
- Low Leakage
- Response Time is Typically <1 ns
- ESD Rating of Class 3 (>16 kV) per Human Body Model
- IEC61000−4−2 Level 4 ESD Protection
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- This is a Pb−Free Device
