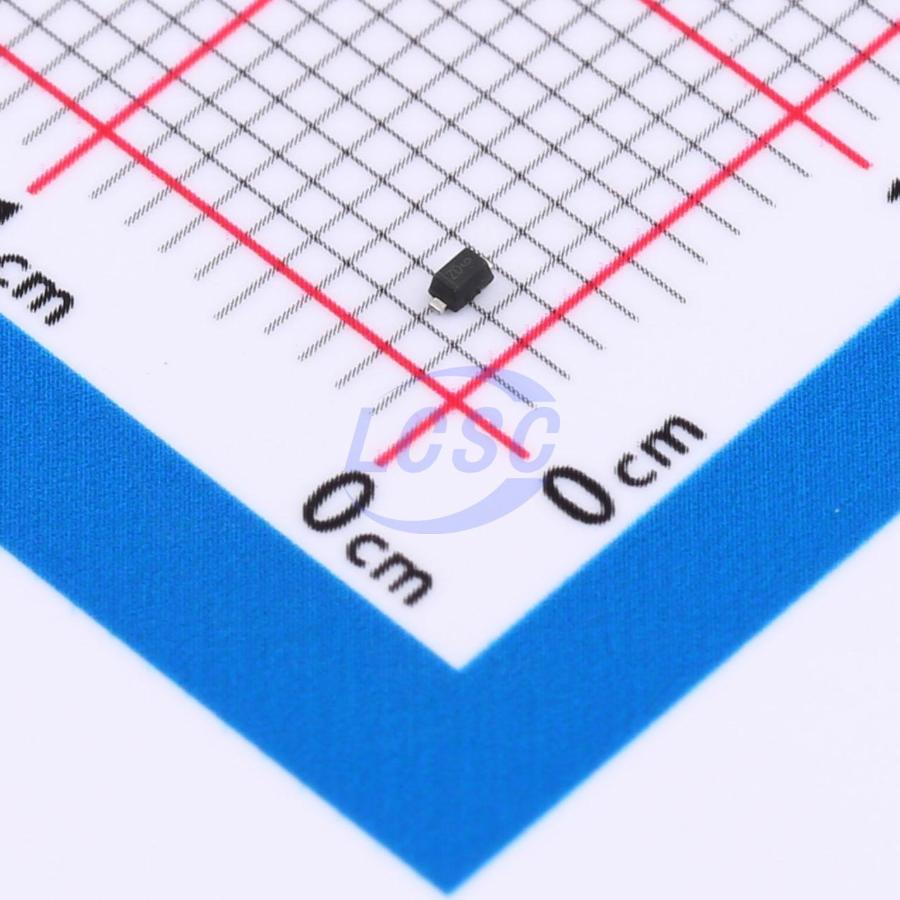

HXY MOSFET

SZESD5Z2.5T1G-HXY

11.5V 104W 4V Unidirectional 2.5V SOD-523 TVS Diodes RoHS

SOD-523ROHS CompliantActive

ESD DIODE 2.5VWM 11.5VC SOD-523

Manufacturer: HXY MOSFET
Manufacturer part #: SZESD5Z2.5T1G-HXY
Store part #: C49318005
Package / case: SOD-523
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

40 in stock

#C49318005

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
20+	₹4.43	₹88.60
200+	₹3.52	₹704.00
600+	₹3.02	₹1,812.00
3,000+	₹2.71	₹8,130.00
9,000+	₹2.43	₹21,870.00
21,000+	₹2.30	₹48,300.00

Quantity (min 20, multiples of 20)

20 × ₹4.43

₹88.60

excl. GST

₹104.55 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SZESD5Z2.5T1G-HXY

₹88.60 for 20 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 11.5V
Operating Temperature: -55℃~+150℃
Peak Pulse Power Dissipation (Ppp): 104W
Voltage - Breakdown: 4V
Number of Channels: 1
type: ESD
Polarity: Unidirectional
Reverse Leakage Current (Ir): 6uA
Reverse Stand-Off Voltage (Vrwm): 2.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.017 g

Overview

The SZESD5Z2.5T1G is designed to protect voltage-sensitive components from ESD and transient voltage events. Its excellent clamping capability, low leakage, and fast response time make it an ideal choice for ESD protection in space-constrained board designs. Due to its compact size, it is suitable for mobile phones, portable devices, digital cameras, power supplies, and many other portable applications.
