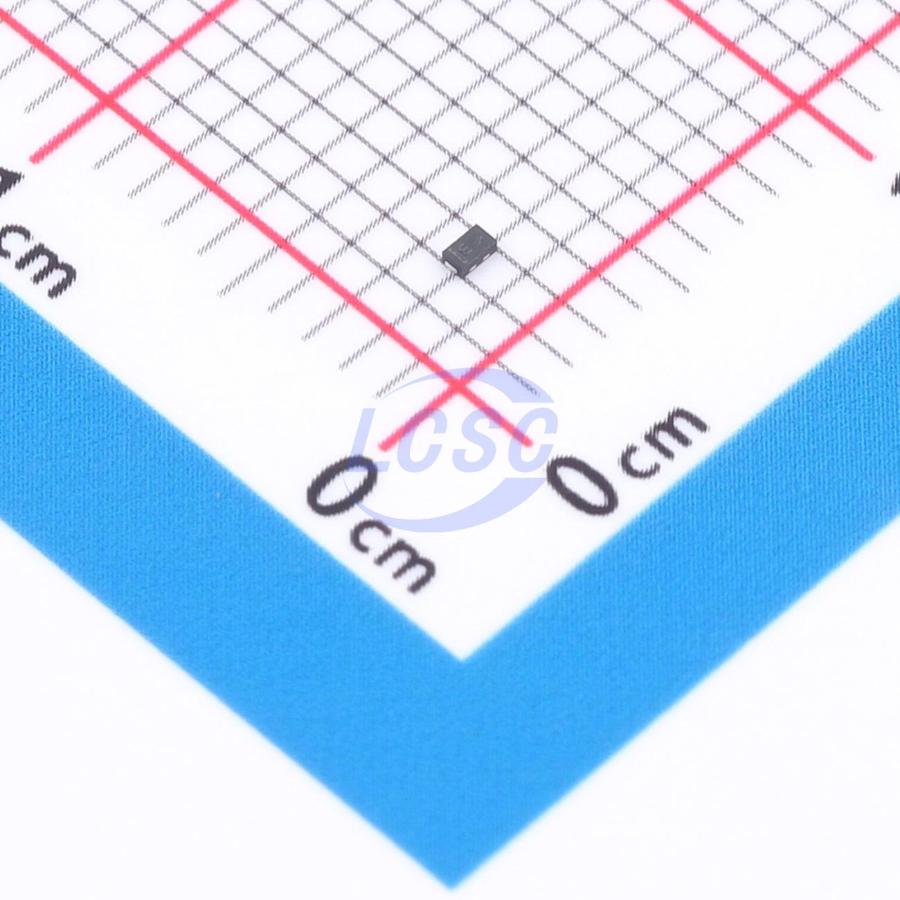

SZESD7462MXWT5G
47V 28V Bidirectional 16V X-DFN-2 TVS Diodes RoHS
ESD DIODE 16VWM 47VC X-DFN-2
- Manufacturer
- onsemi
- Manufacturer part #
- SZESD7462MXWT5G
- Store part #
- C896559
- Package / case
- X-DFN-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
383 in stock
#C896559
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹100.83 | ₹100.83 |
| 10+ | ₹85.65 | ₹856.50 |
| 30+ | ₹78.06 | ₹2,341.80 |
| 100+ | ₹70.48 | ₹7,048.00 |
| 500+ | ₹65.91 | ₹32,955.00 |
| 1,000+ | ₹63.53 | ₹63,530.00 |
1 × ₹100.83
₹100.83
excl. GST
₹118.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
SZESD7462MXWT5G
₹100.83 for 1 + GST
Specifications
- Clamping Voltage
- 47V
- Operating Temperature
- -55℃~+150℃
- Number of Channels
- 1
- Voltage - Breakdown
- 28V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 16V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.494 g
Overview
The ESD7462 is designed to protect voltage sensitive components that require ultra−low capacitance from ESD and transient voltage events. It has industry leading capacitance linearity over voltage making it ideal for RF applications. This capacitance linearity combined with the extremely small package and low insertion loss makes this part well suited for use in antenna line applications for wireless handsets and terminals.
Applications
- RF Signal ESD Protection
- RF Switching, PA, and Antenna ESD Protection
- Near Field Communications
- USB 2.0, USB 3.0
Key features
- Industry Leading Capacitance Linearity Over Voltage
- Ultra−Low Capacitance: 0.3 pF Typ
- Insertion Loss: 0.05 dB at 1 GHz; 0.10 dB at 3 GHz
- Low Leakage: <1 nA Typ
- Protection for the following IEC Standards: IEC61000−4−2 (ESD): Level 4; IEC61000−4−4 (EFT): 40 A −5/50 ns; IEC61000−4−5 (Lightning): 1 A (8/20 s)
- Protection for ISO 10605 (ESD)
- SZESD7462MXWT5G − Wettable Flank Package for Optimal Automated Optical Inspection (AOI)
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
