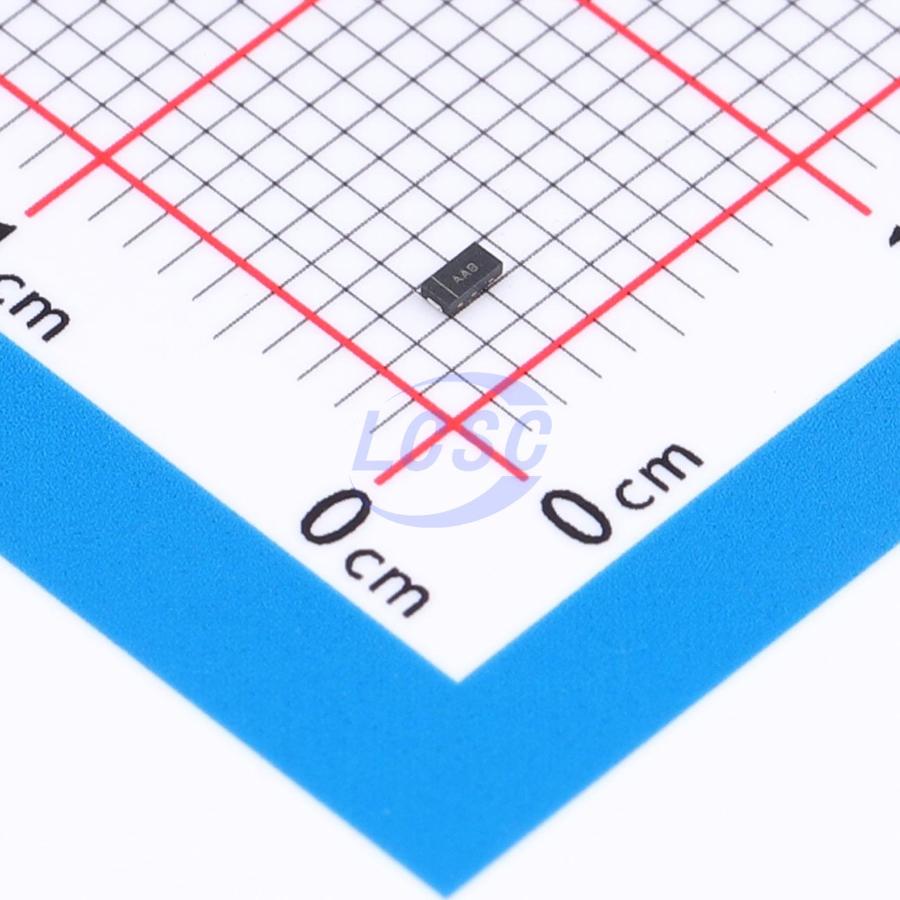

SZESDL2012MX2WT5G
nan
X2-DFNW-2(1.6x0.8)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- SZESDL2012MX2WT5G
- Store part #
- C3702308
- Package / case
- X2-DFNW-2(1.6x0.8)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
450 in stock
#C3702308
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.52 | ₹63.52 |
| 10+ | ₹49.82 | ₹498.20 |
| 30+ | ₹43.95 | ₹1,318.50 |
| 100+ | ₹36.55 | ₹3,655.00 |
| 500+ | ₹33.29 | ₹16,645.00 |
| 1,000+ | ₹31.33 | ₹31,330.00 |
1 × ₹63.52
₹63.52
excl. GST
₹74.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
SZESDL2012MX2WT5G
₹63.52 for 1 + GST
Specifications
- Clamping Voltage
- 7.5V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 4.7A@1.2/50us
- Peak Pulse Power Dissipation (Ppp)
- 312mW
- Number of Channels
- 1
- Voltage - Breakdown
- 1.4V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 30nA
- Reverse Stand-Off Voltage (Vrwm)
- 1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.1 g
Overview
The ESDL2012 is designed to protect voltage-sensitive components requiring low capacitance from ESD and transient voltage events. Excellent clamping capability, low capacitance, low leakage, and fast response time make these devices ideal for ESD protection in space-constrained board designs. The low capacitance makes this device particularly well-suited for high-speed data line applications.
Applications
- USB 3.x
- Thunderbolt 3.0
Key features
- Low capacitance
- Low clamping voltage
- Small package: 0.60 mm × 0.30 mm
- Low body height: 0.2 mm
- Standoff voltage: 1.0 V
- IEC61000-4-2 Level 4 ESD protection
- SZ prefix for automotive and other applications requiring unique field and controlled change requirements; AEC-Q101 qualified and PPAP capable
- SZESDL2012MX2WT5G - solderable gull-wing package for automated optical inspection (AOI)
- These devices are lead-free, halogen-free/bromine-free flame retardant, and RoHS compliant
