onsemiDatasheet (PDF)

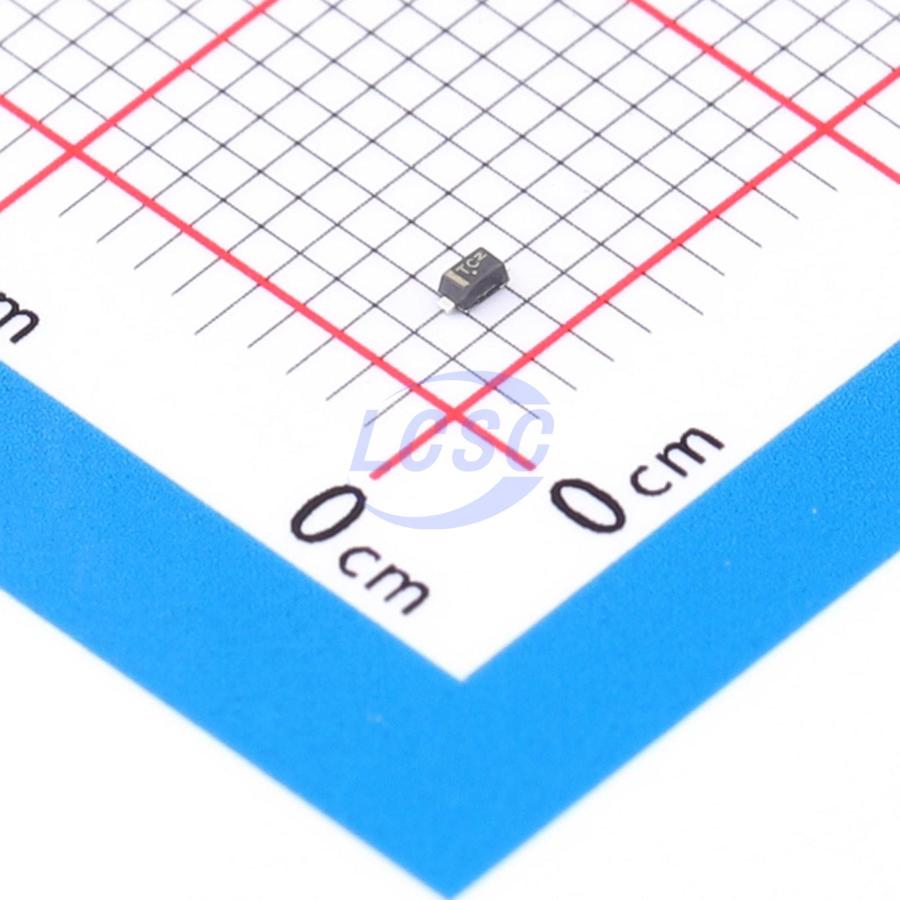

SZMM5Z5V6ST1G
Zener Diode Independent 5.6V 500mW Surface Mount SOD-523
SOD-523ROHS3 CompliantActive
DIODE ZENER 5.6V 500mW SOD-523
- Manufacturer
- onsemi
- Manufacturer part #
- SZMM5Z5V6ST1G
- Store part #
- C604791
- Package / case
- SOD-523
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
300 in stock
#C604791
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹90.40 | ₹90.40 |
| 10+ | ₹72.14 | ₹721.40 |
| 30+ | ₹63.03 | ₹1,890.90 |
| 100+ | ₹53.90 | ₹5,390.00 |
| 500+ | ₹48.46 | ₹24,230.00 |
| 1,000+ | ₹45.86 | ₹45,860.00 |
1 × ₹90.40
₹90.40
excl. GST
₹106.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SZMM5Z5V6ST1G
₹90.40 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 1uA@2V
- Impedance(Zzt)
- 40Ω
- Zener Voltage(Range)
- 5.49V~5.73V
- Zener Voltage(Nom)
- 5.6V
- Impedance(Zzk)
- 200Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.035 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MM5Z5V6ST1G#C603328onsemi · SOD-523 | onsemi | SOD-523 | 4,995 | ₹14.88 · 4,995 in stock | View |
 | MM5Z5V6T1G#C193868onsemi · SOD-523 | onsemi | SOD-523 | 3,550 | ₹14.67 · 3,550 in stock | View |
 | SZMM5Z5V6T1G#C463901onsemi · SOD-523 | onsemi | SOD-523 | 345 | ₹18.93 · 345 in stock | View |
 | NSZ5V6V2T5G#C896488onsemi · SOD-523 | onsemi | SOD-523 | 80 | ₹27.48 · 80 in stock | View |
 | BZX585-B5V6,115#C426825Nexperia · SOD-523(SC-79) | Nexperia | SOD-523(SC-79) | 1,320 | ₹16.74 · 1,320 in stock | View |
