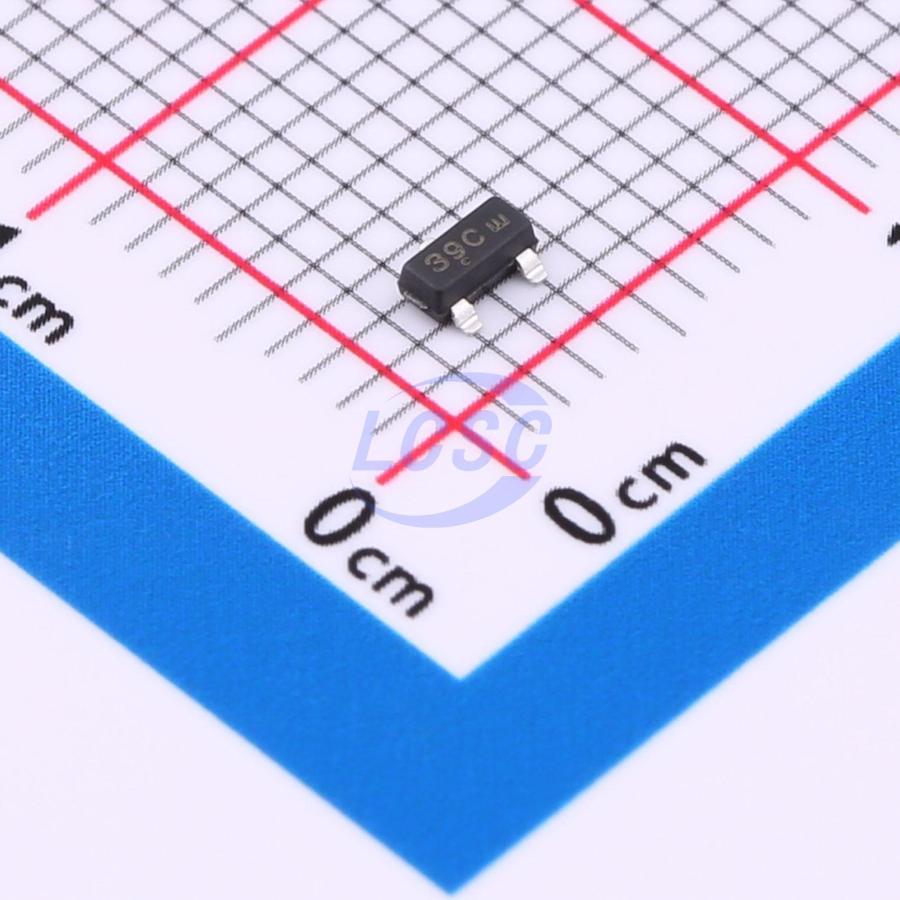

SZMMBZ39VCLT1G
Zener Diode Array 1 Pair Common Cathode 39V 225mW Surface Mount SOT-23
DIODE ARR ZENER 39V 225mW SOT-23
- Manufacturer
- onsemi
- Manufacturer part #
- SZMMBZ39VCLT1G
- Store part #
- C894576
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C894576
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.04 | ₹100.20 |
| 50+ | ₹16.03 | ₹801.50 |
| 150+ | ₹14.04 | ₹2,106.00 |
| 500+ | ₹12.53 | ₹6,265.00 |
| 3,000+ | ₹11.34 | ₹34,020.00 |
| 6,000+ | ₹10.73 | ₹64,380.00 |
5 × ₹20.04
₹100.20
excl. GST
₹118.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SZMMBZ39VCLT1G
₹100.20 for 5 + GST
Specifications
- Pd - Power Dissipation
- 225mW
- Operating Junction Temperature Range
- -55℃~+150℃
- Diode Configuration
- 1 Pair Common Cathode
- Reverse Leakage Current (Ir)
- 50nA@31.2V
- Zener Voltage(Range)
- 37.05V~40.95V
- Zener Voltage(Nom)
- 39V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
These dual monolithic silicon zener diodes are designed for applications requiring protection capability. They are intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and other applications. Their dual junction common cathode design protects two separate lines using only one package. These devices are ideal for situations where board space is at a premium.
Applications
- computers
- printers
- business machines
- communication systems
- medical equipment
Key features
- SOT - 23 Package Allows Either Two Separate Unidirectional Configurations or a Single Bidirectional Configuration
- Standard Zener Breakdown Voltage Range - 15 V, 27 V, 39 V
- Peak Power - 40 W @ 1.0 ms (Bidirectional), per Figure 5 Waveform
- ESD Rating of Class 3B (exceeding 16 kV) per the Human Body Model
- ESD Rating of IEC61000 - 4 - 2 Level 4, ±30 kV Contact Discharge
- Low Leakage < 100 nA
- Flammability Rating: UL 94 V - O
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC - Q101 Qualified and PPAP Capable
- These are Pb - Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DZ23C39#C968365YANGJIE · SOT-23(TO-236) | YANGJIE | SOT-23(TO-236) | 2,240 | ₹4.76 · 2,240 in stock | View |
 | DZ23C39-7-F#C5244880DIODES · SOT-23 | DIODES | SOT-23 | 120 | ₹9.45 · 120 in stock | View |
 | DZ23C36-7-F#C5244879DIODES · SOT-23 | DIODES | SOT-23 | 20 | ₹8.75 · 20 in stock | View |
| DZ23C39-HE3_A-18#C20566705VISHAY · SOT-23(TO-236) | VISHAY | SOT-23(TO-236) | On request | ₹17.38 · 0 in stock | View | |
| DZ23C39-HE3_A-08#C20569667VISHAY · SOT-23(TO-236) | VISHAY | SOT-23(TO-236) | On request | ₹17.89 · 0 in stock | View | |
