SZNUP2115LT1G

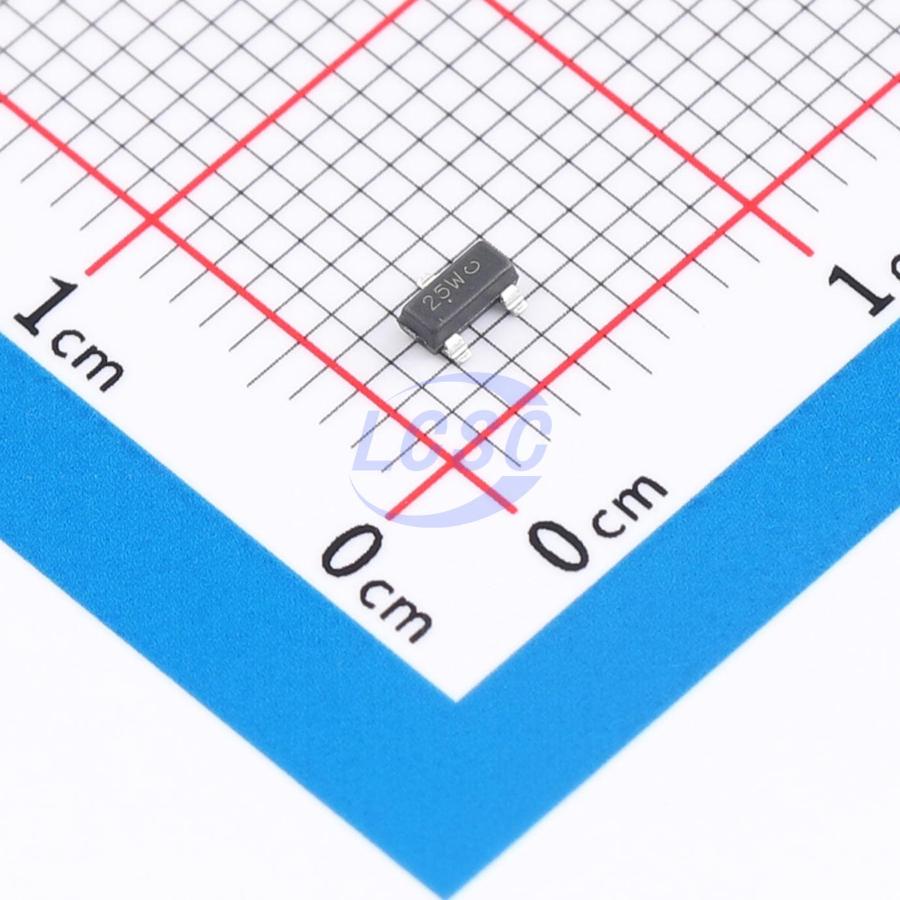

50VC Clamp 3A@8/20us Ipp TVS DIODE SOT-23-3
- Manufacturer
- onsemi
- Manufacturer part #
- SZNUP2115LT1G
- Store part #
- C894721
- Package / case
- SOT-23-3
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
168 in stock
#C894721
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹106.18 | ₹106.18 |
| 10+ | ₹104.25 | ₹1,042.50 |
| 30+ | ₹103.18 | ₹3,095.40 |
| 100+ | ₹101.88 | ₹10,188.00 |
1 × ₹106.18
₹106.18
excl. GST
₹125.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SZNUP2115LT1G
₹106.18 for 1 + GST
Specifications
- Clamping Voltage
- 50V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 3A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 200W
- Voltage - Breakdown
- 26.2V
- type
- TVS
- Reverse Leakage Current (Ir)
- 15nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.021 g
Overview
The SZ/NUP2115L has been designed to protect the FlexRay transceiver from ESD and other harmful transient voltage events. This device provides bidirectional protection for each data line with a single compact SOT−23 package, giving the system designer a low cost option for improving system reliability and meeting stringent EMI requirements.
Applications
- Automotive Networks ♦ FlexRay Bus
Key features
- 200 W Peak Power Dissipation per Line (8/20 μs Waveform)
- Diode Capacitance Matching
- Low Reverse Leakage Current (<100 nA)
- Low Capacitance High−Speed FlexRay Data Rates
- IEC Compatibility:
- IEC 61000−4−2 (ESD): Level 4
- IEC 61000−4−4 (EFT): 50 A – 5/50 ns
- IEC 61000−4−5 (Lighting) 3.0 A (8/20 μs)
- ISO 7637−1, Nonrepetitive EMI Surge Pulse 2, 8.0 A (1/50 μs)
- ISO 7637−3, Repetitive Electrical Fast Transient (EFT) EMI Surge Pulses, 50 A (5/50 ns)
- Flammability Rating UL 94 V−0
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These are Pb−Free Devices
